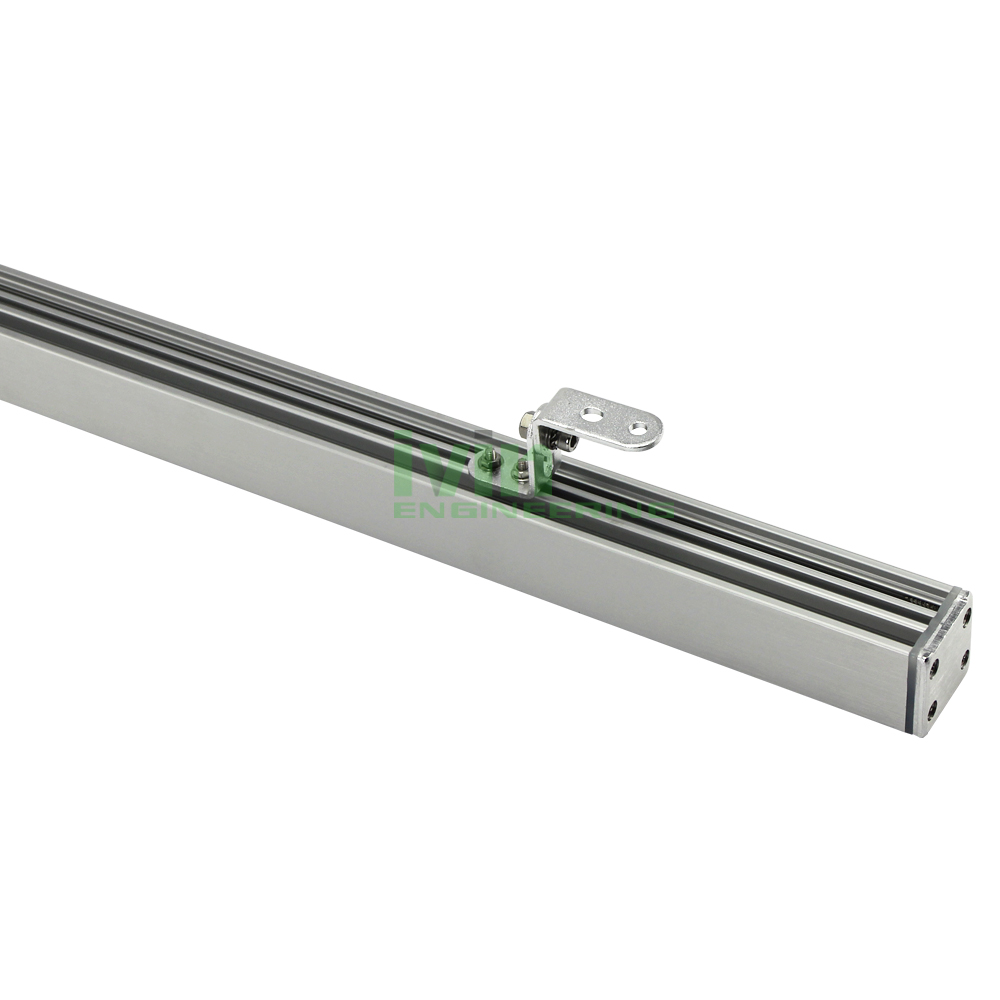

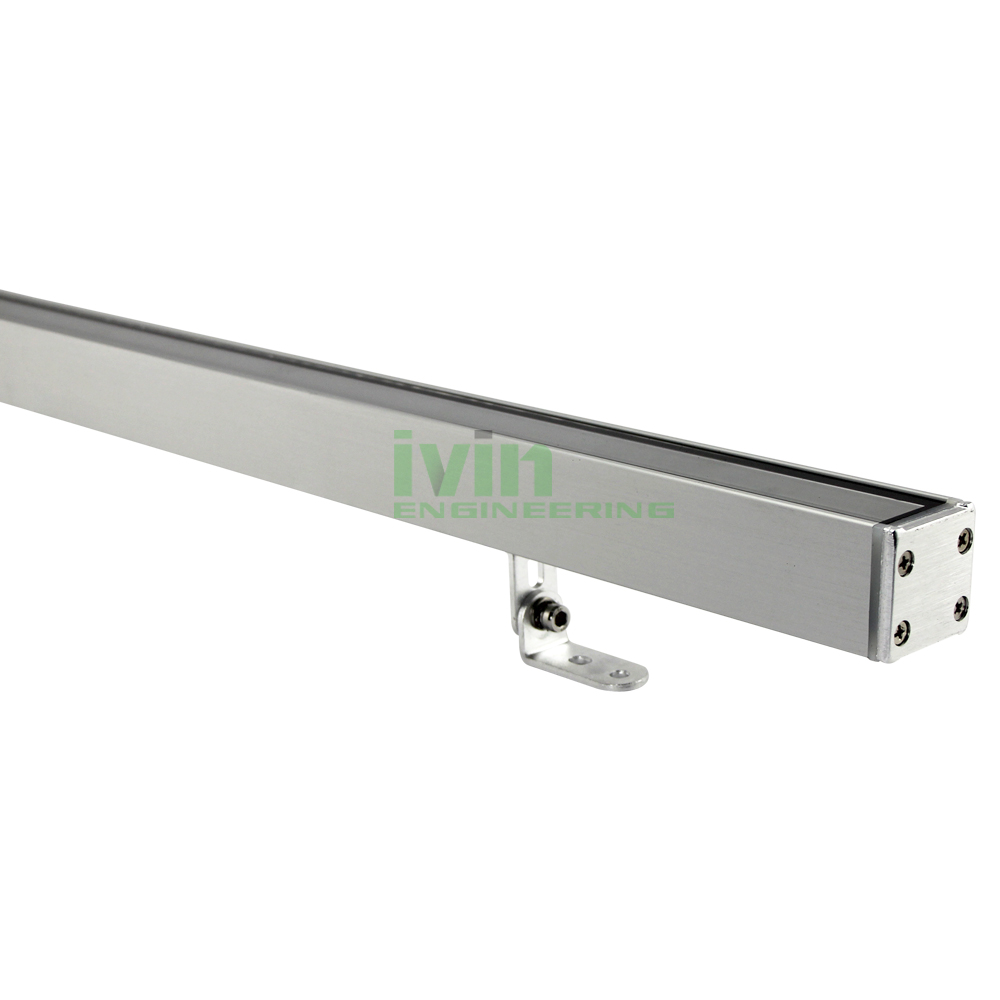

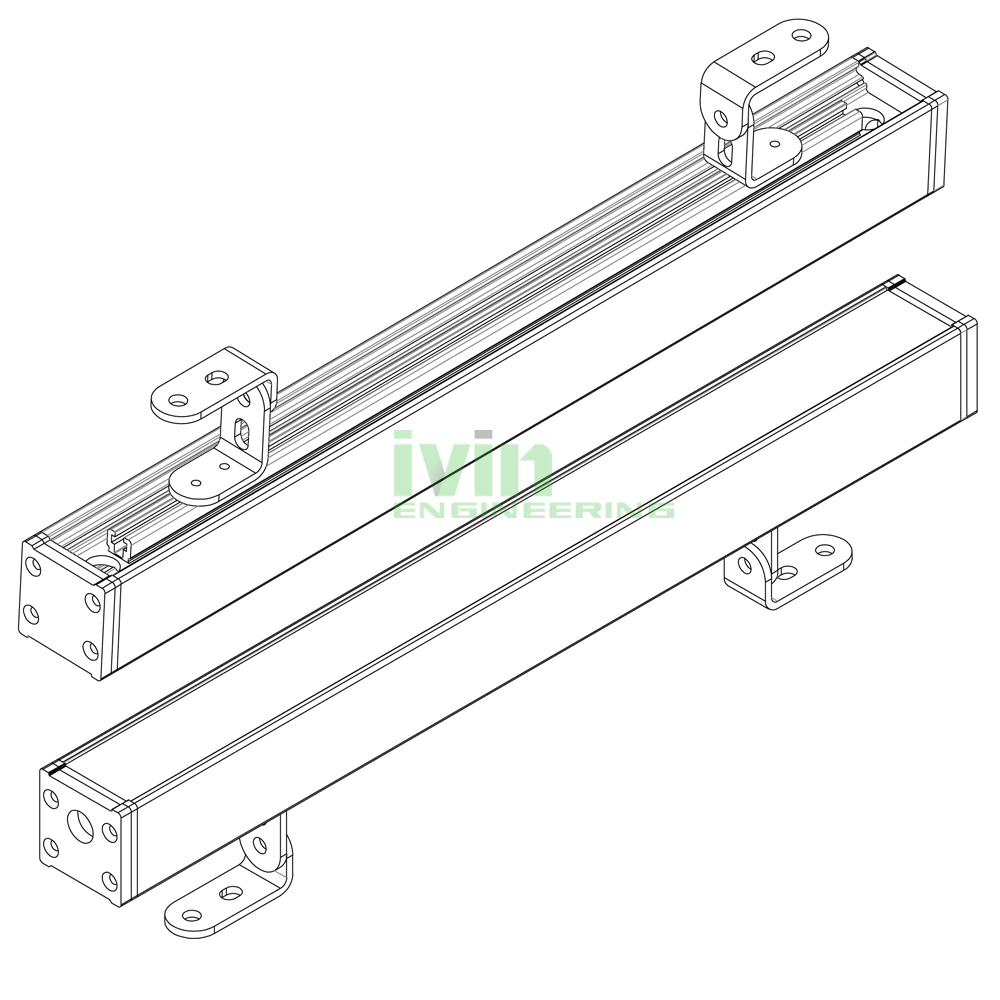

High quality LED washwall light housing, LED high end quality washwall light housing.

AWH-4040

39.5mm*39.5mm*Length.
1 * Aluminium profile
1 * Tempered glass cover
2 * silicon sealing gaskets
2 * Aluminum End caps
4 * M3.5 Screws
1Pce or 2 Pcs PG7
1M set 1.85kg.

Aluminum profile.                                           Use 30mm width PCB .                      Recommend 24*1W LEDs. Wire drawing + silver anodize.                                         with 1 or 2 PG7 holes at back .                                            1.42kg / M.

Tempered glass cover.                                   W=31.8mm / T= 4mm.                                              93% high light  transmittance.                                      Weight: 310g / M.

Silicon sealingh gasket .                                                  Silicon material - IP65 / IP66.                                         Highly weather resistance.

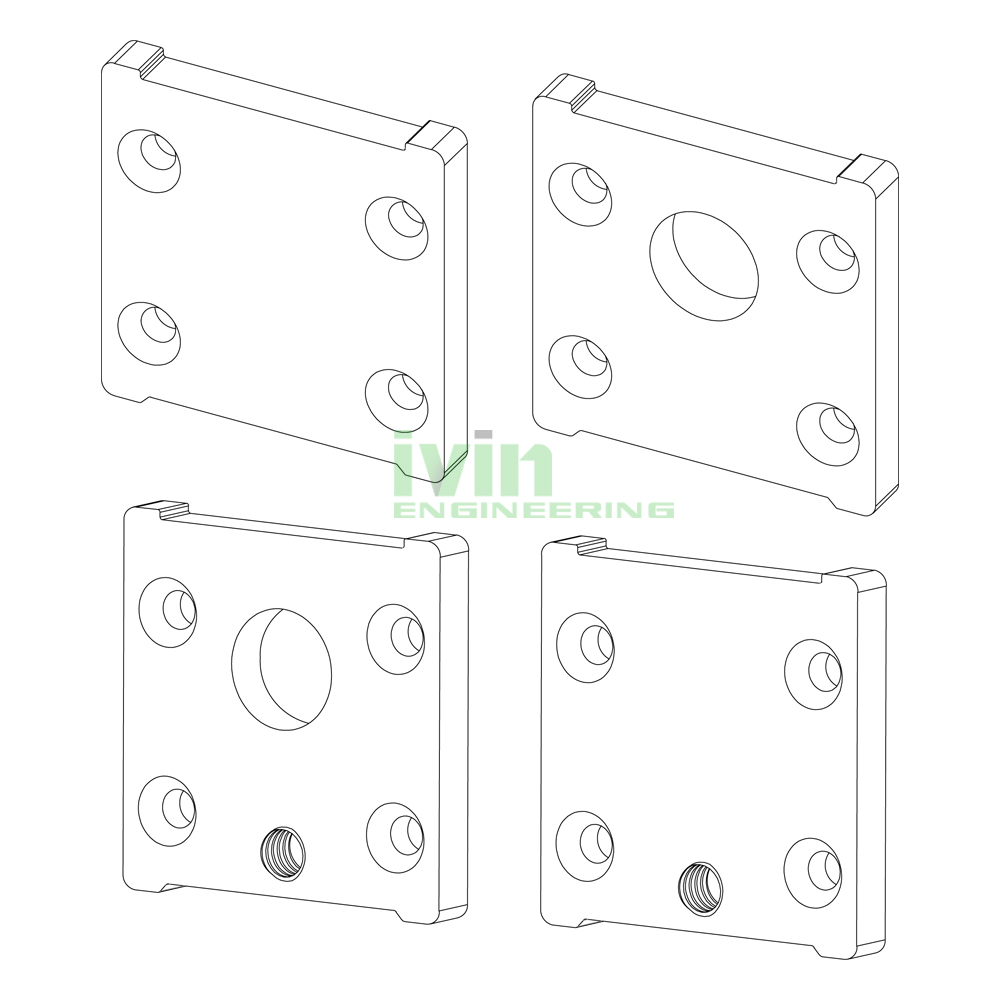

End cap  Aluminum1050 material.                      Sand blast + Silver anodize finish.                                                                        + 4 M3.5 self tapping screws.
