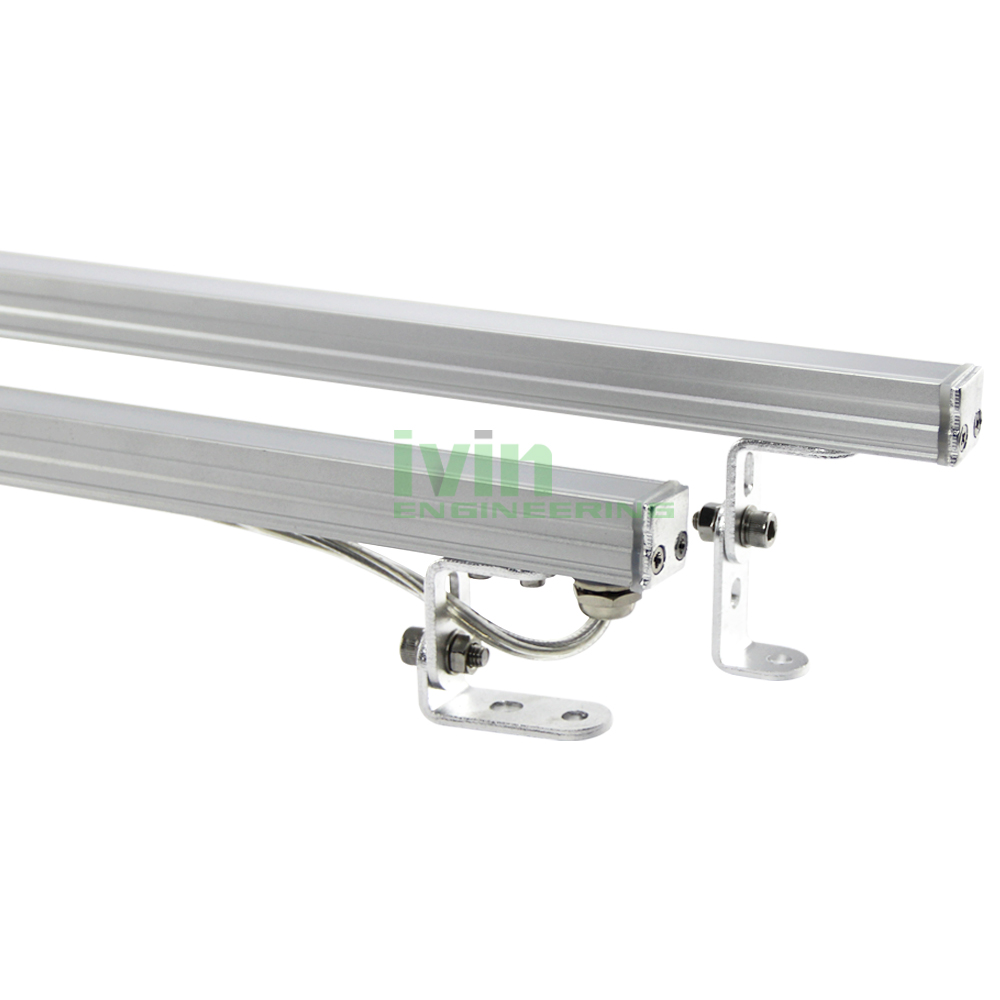

architectural LED linear light, building outline linear light housing.
LED architectural linear heat sink, architectural LED linear light, building outline linear light casing.
AWH-2121 LED architectural outline light housing set.
Aluminum profile.
use 14mm width LED strips .
24W SMD LEDs.
Sand blast silver anodize finish.
with 1 or 2 PG7 holes at back .
0.61kg / M.
|
Diffused PC cover.
W=16.2mm / T= 3.8mm.
about 83% light transmittance.
Weight: 75g / M.
|
Silicon sealingh gasket .
Silicon material - IP65 / IP66.
Highly weather resistance.
|
End cap
Aluminum1050 material.
Sand blast + Silver anodize finish.
+ 4 M3.5 self tapping screws.
|
21mm*21mm*Length.

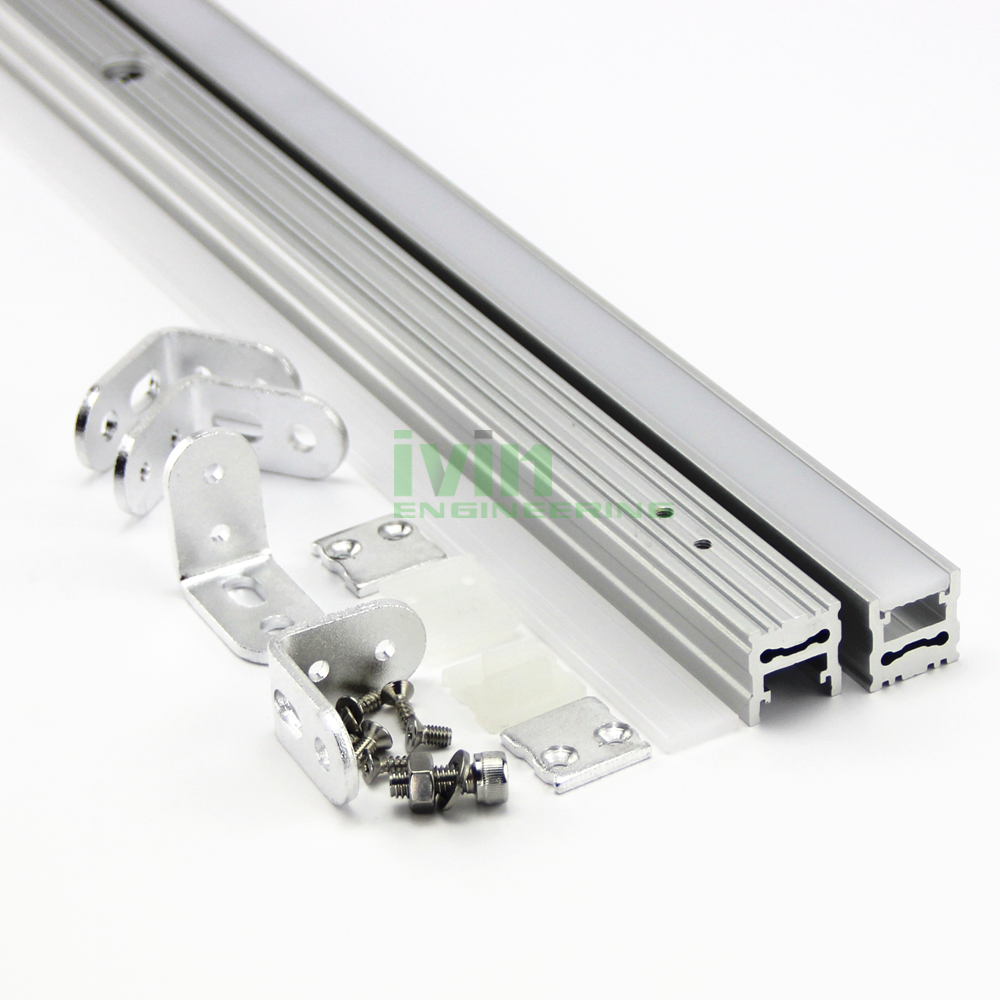

1 * Alum profile
1 * Diffused PC cover
2 * silicon sealing gasket
2 * Aluminum End caps
4 * M3.5 Screws
1Pce or 2 Pcs PG7
1M set 0.77kg.

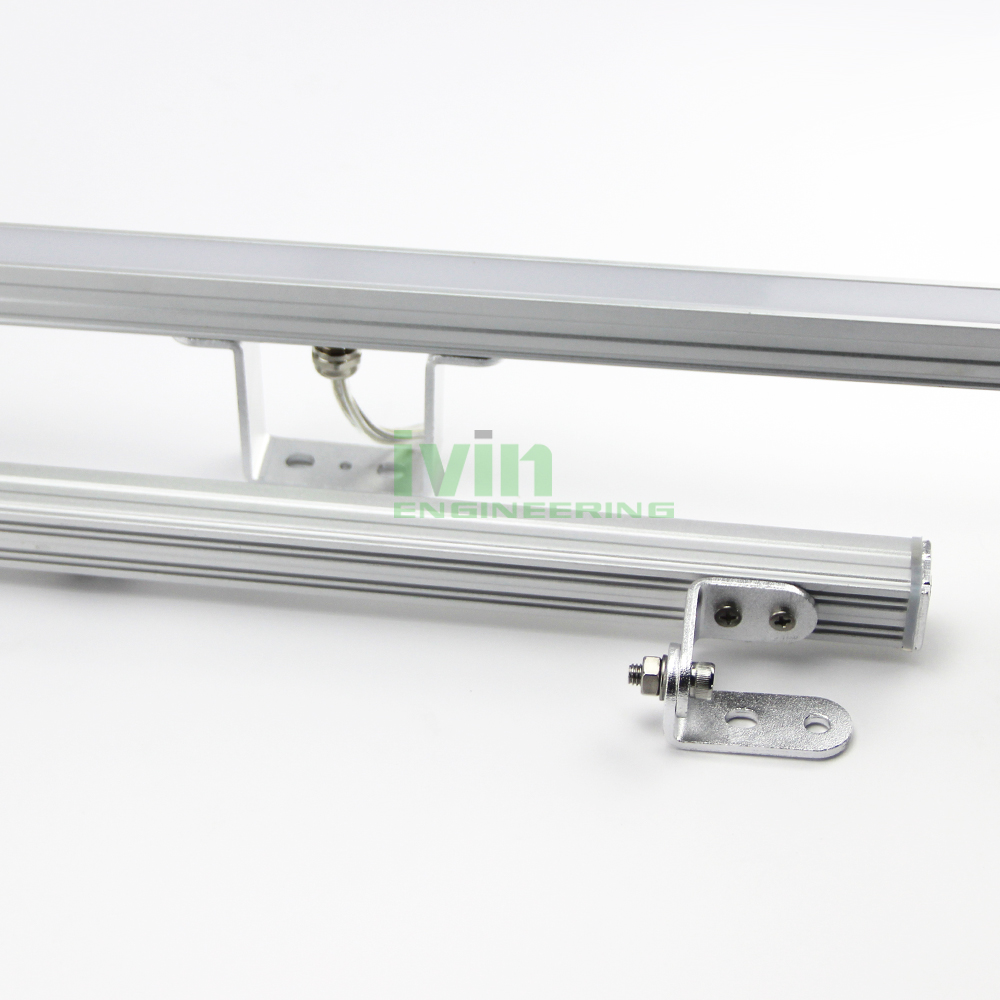

Adjustable Mount stand.
3mm Al1050 aluminum plate, Sand blast + Silver anodize finish.
Lower stand + Lower stand .
+ Screws.
60g / 2 set.
45mm height
67mm height
( each end use 1 set. )

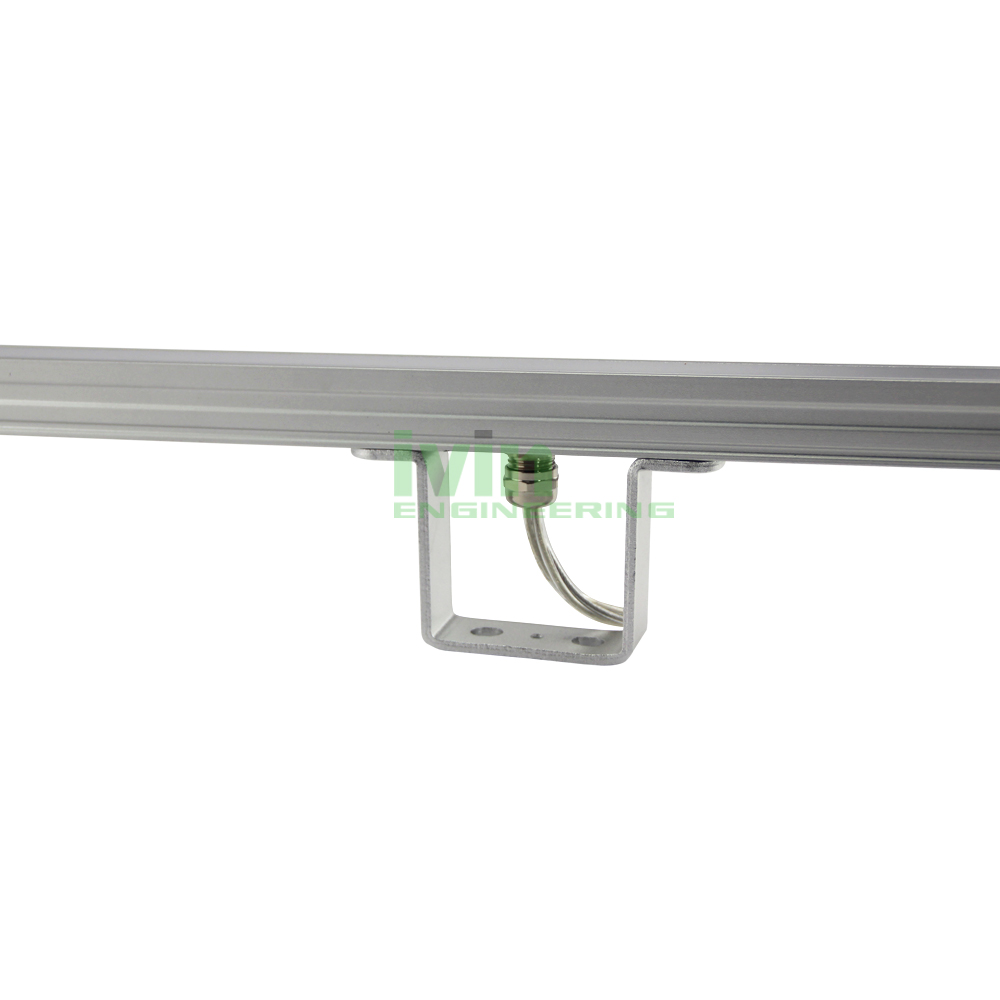

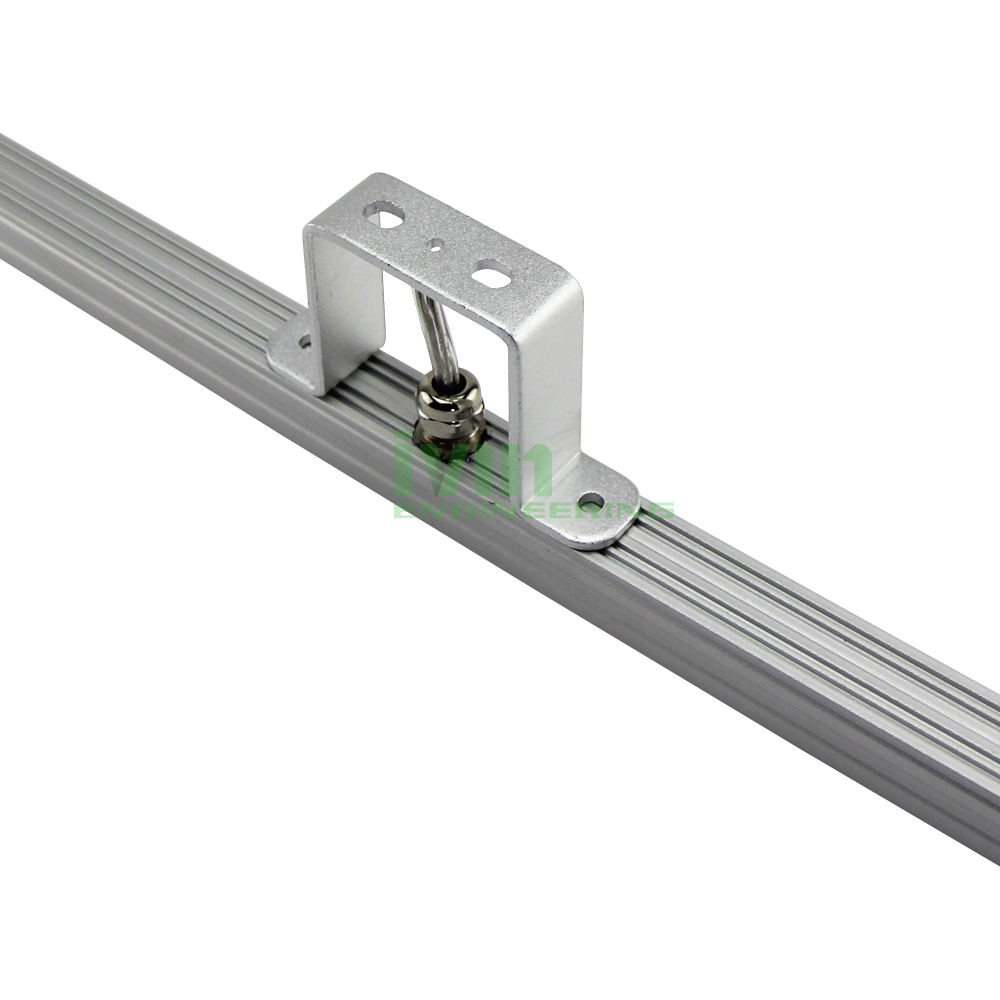

90° Mount stand.
3mm Al1050 aluminum plate, Sand blast + Silver anodize finish.
+ Screws.
33g / set.
