AWH-4040

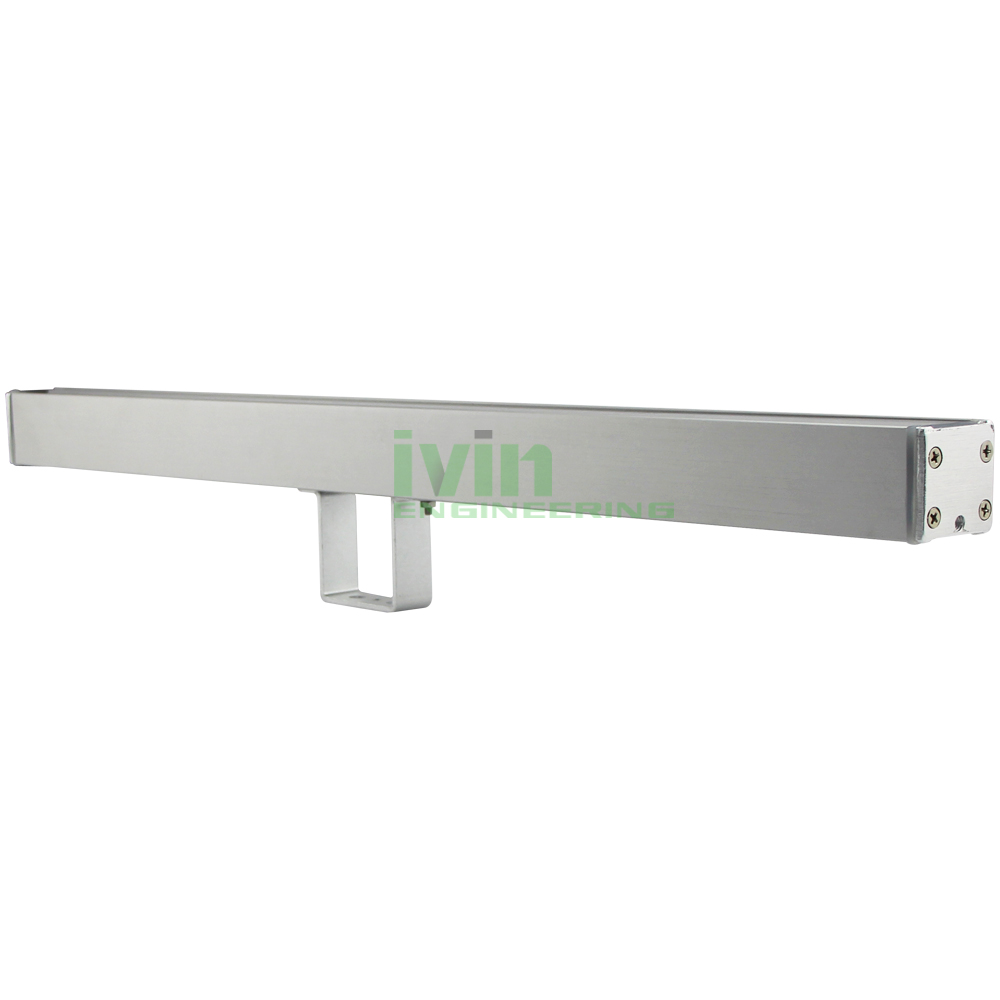

High quality LED washwall light casing.
High end quality LED wash wall light heatsink, high quality LED housing.

39.5mm*39.5mm*Length.

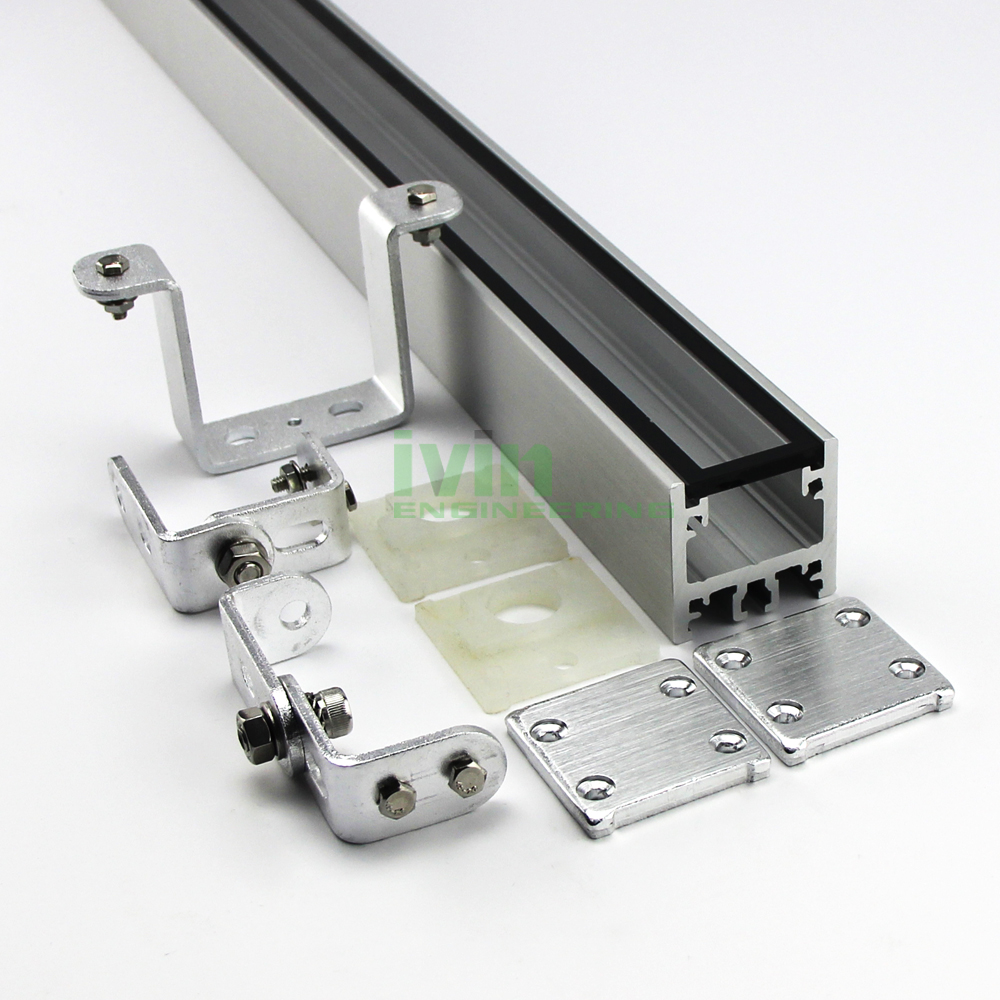

1 * Aluminium profile
1 * Tempered glass cover
2 * silicon sealing gaskets
2 * Aluminum End caps
4 * M3.5 Screws
1Pce or 2 Pcs PG7
1M set 1.85kg.

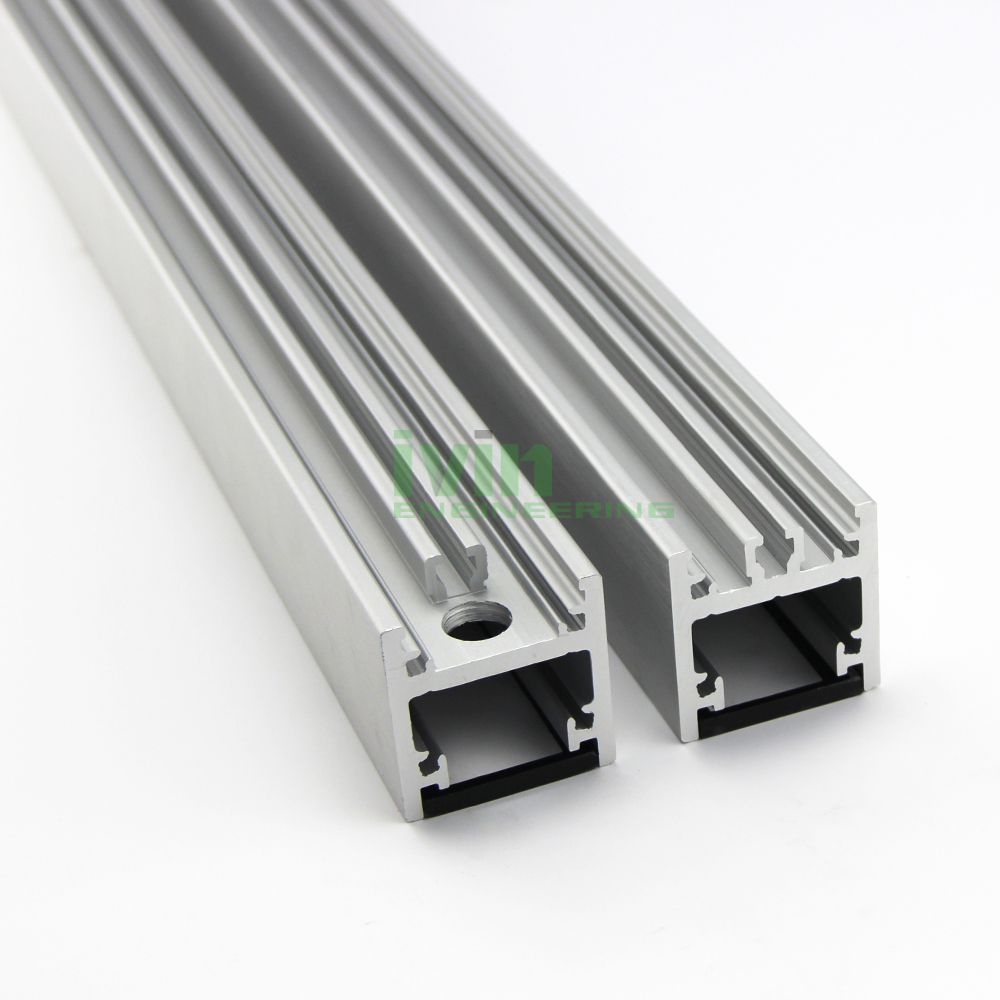

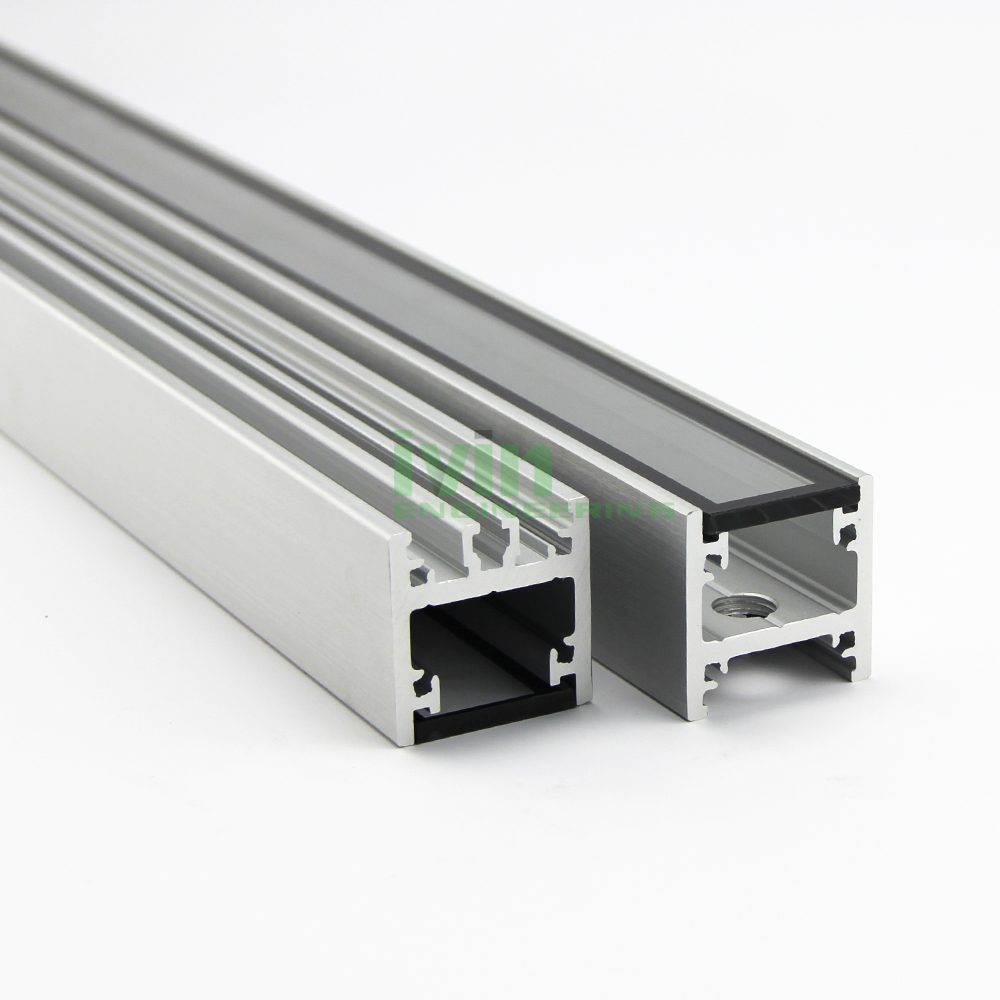

Aluminum profile.                                           Use 30mm width PCB .                      Recommend 24*1W LEDs. Wire drawing + silver anodize.                                         with 1 or 2 PG7 holes at back .                                            1.42kg / M.

Tempered glass cover.                                   W=31.8mm / T= 4mm.                                              93% high light  transmittance.                                      Weight: 310g / M.

Silicon sealingh gasket .                                                  Silicon material - IP65 / IP66.                                         Highly weather resistance.

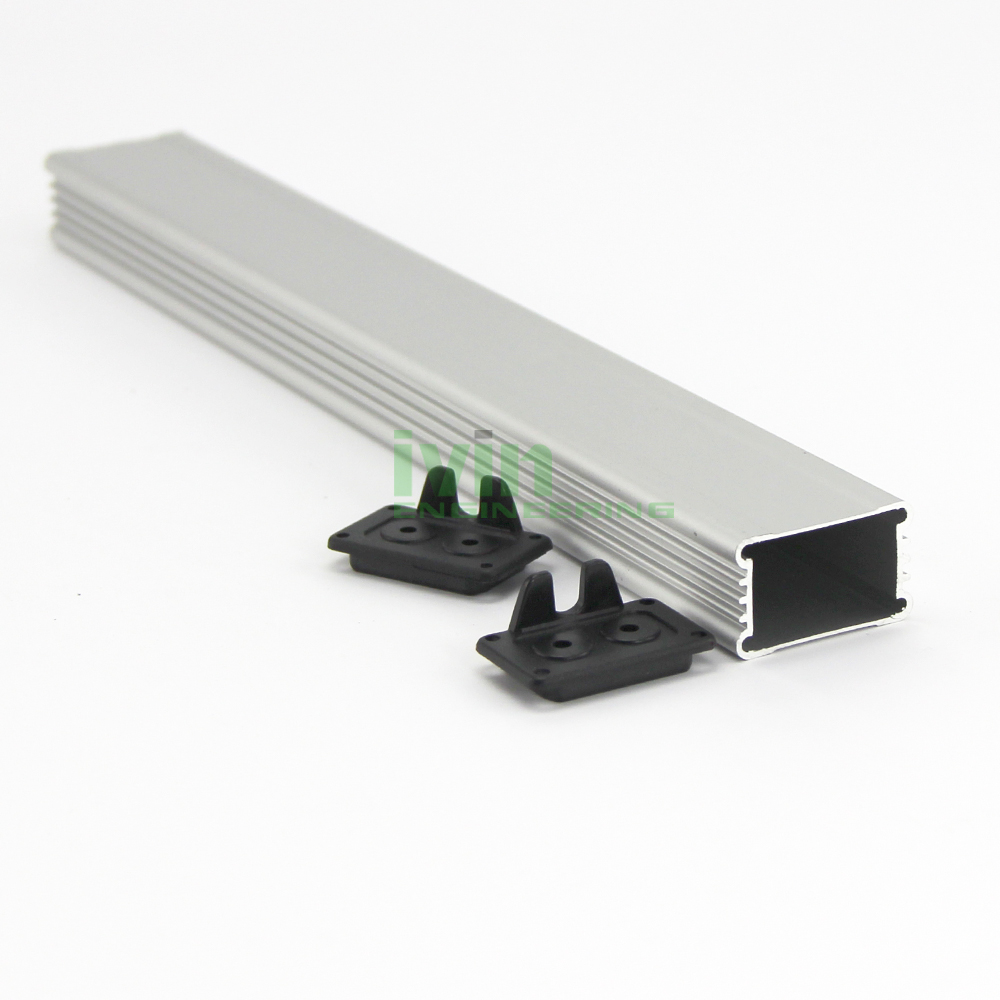

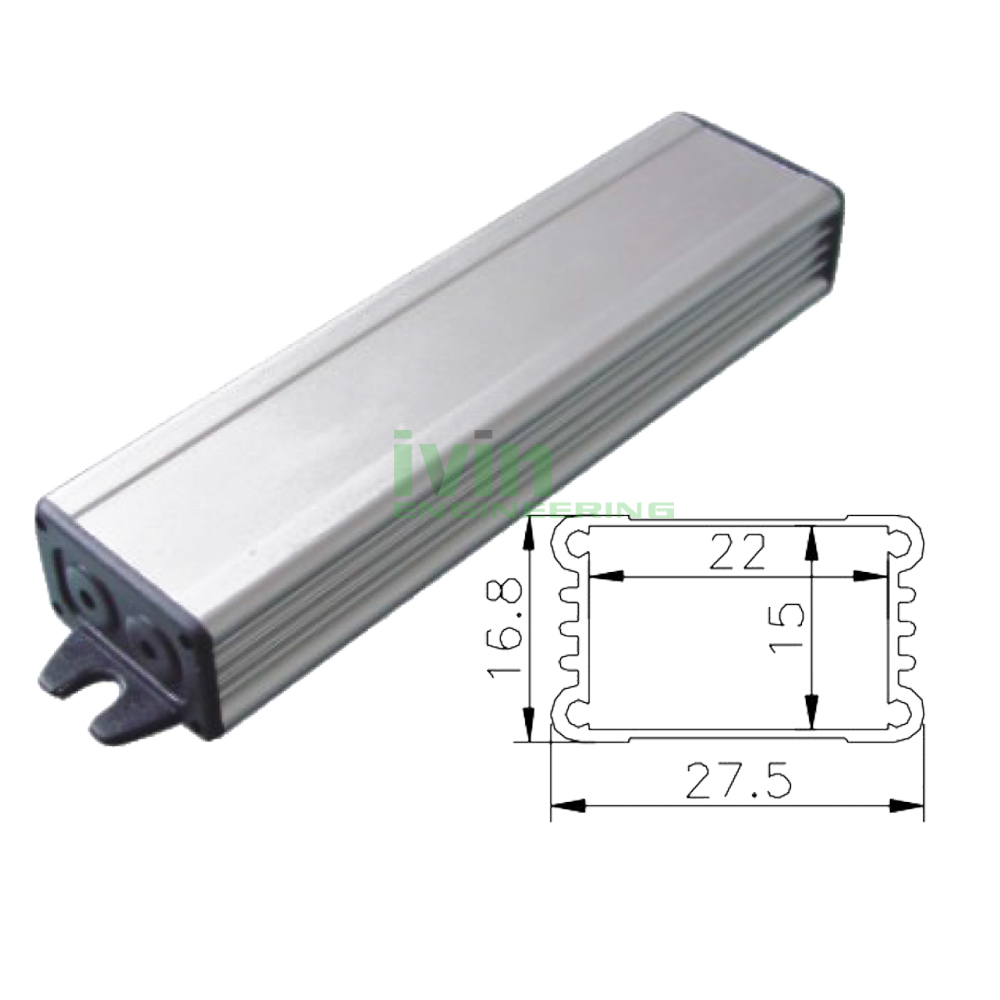

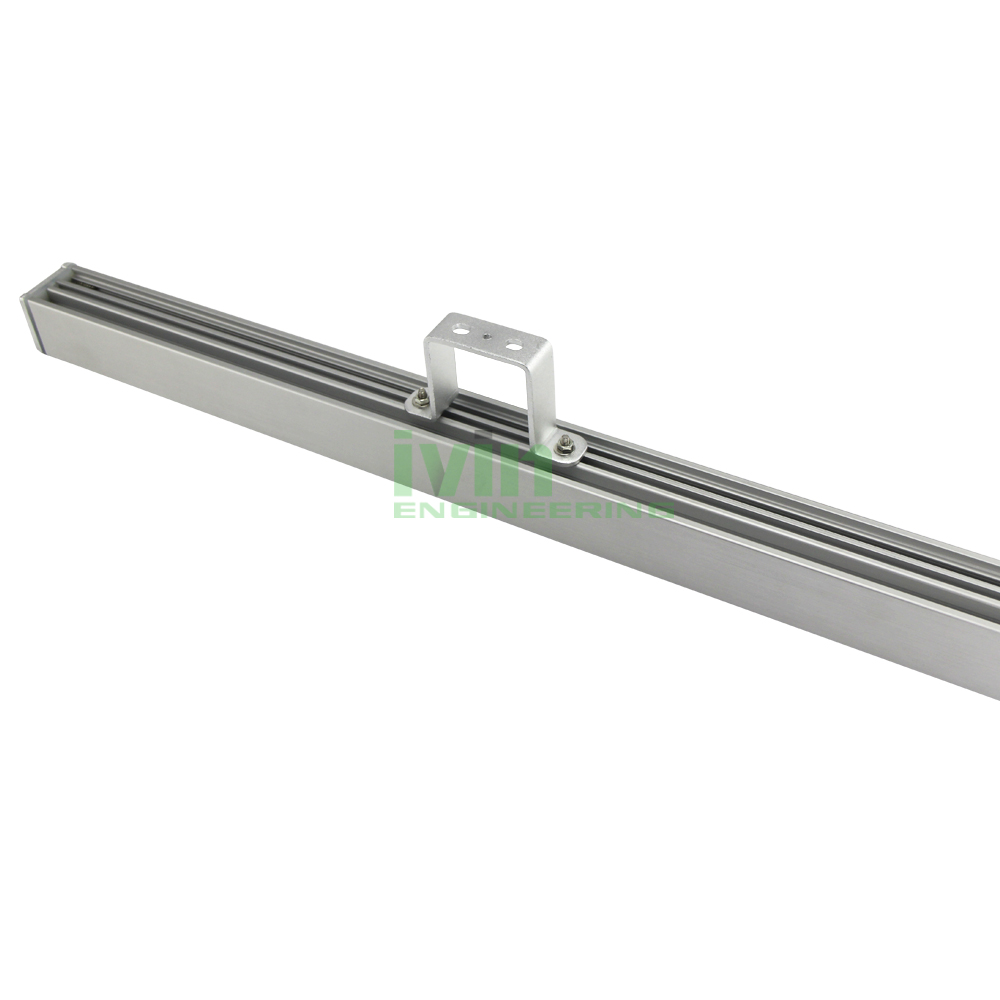

End cap  Aluminum1050 material.                      Sand blast + Silver anodize finish.                                                                        + 4 M3.5 self tapping screws.                  90° Mount stand.                                                                                           3mm Al1050 aluminum plate, Sand blast + Silver anodize finish.   + Screws.                                  54mm height          Driver box model IK-220                                                                                           External size: 27.5*16.8mm Inner size:  22*15mm  Aluminum tube + 2 ABS end caps + 8 screws.

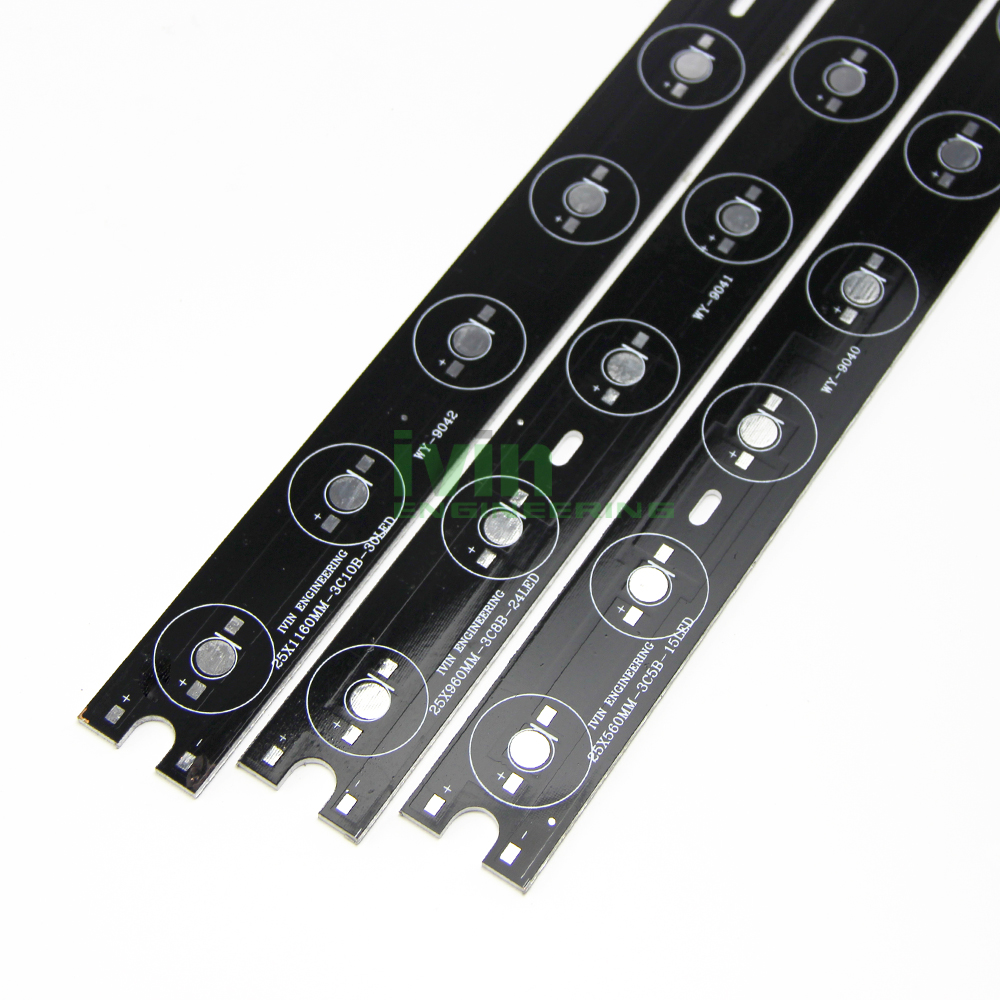

PCB: 560*25*2mm 　
3C5B  15 soldering pads
Thermal conductivity: 1.2W/m.k
Copper layer: 1oz


PCB: 960*25*2mm 　
3C8B  24 soldering pads
Thermal conductivity: 1.2W/m.k
Copper layer: 1oz
