LED architectural linear light, architectural outline LED linear light housing.

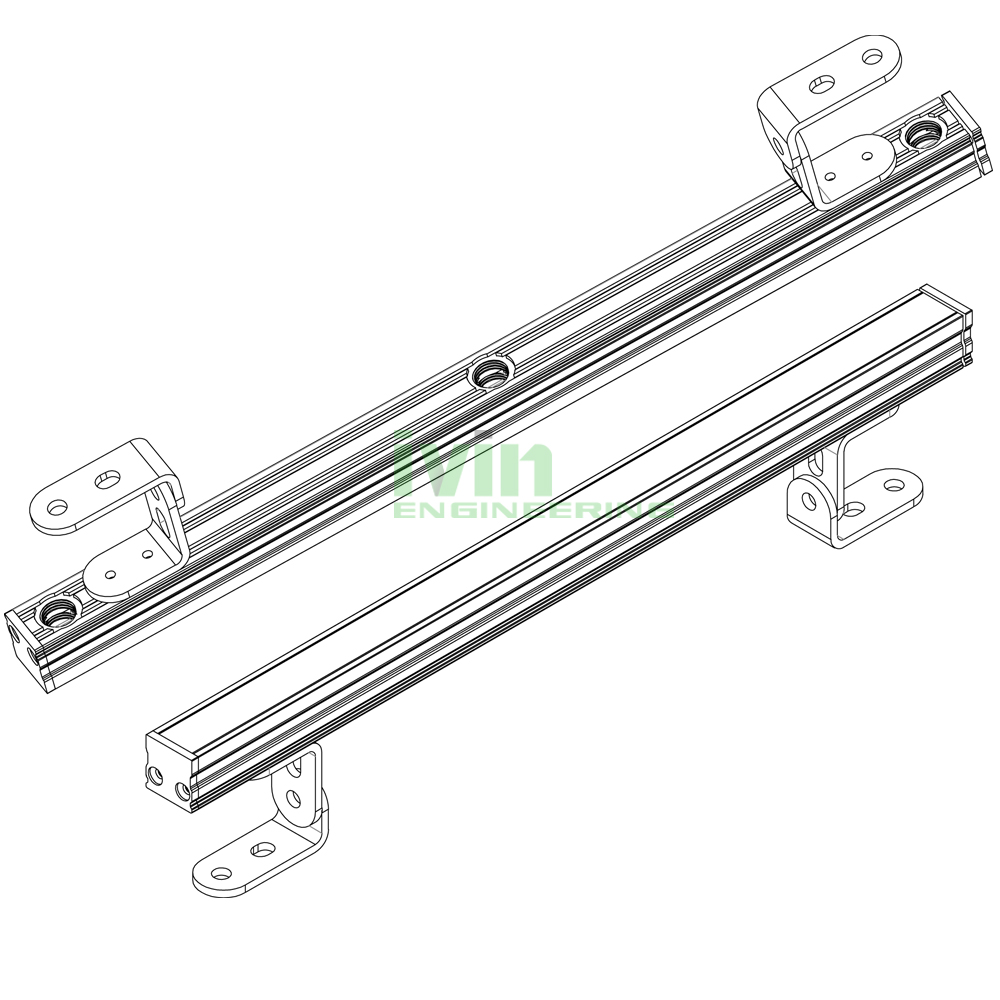

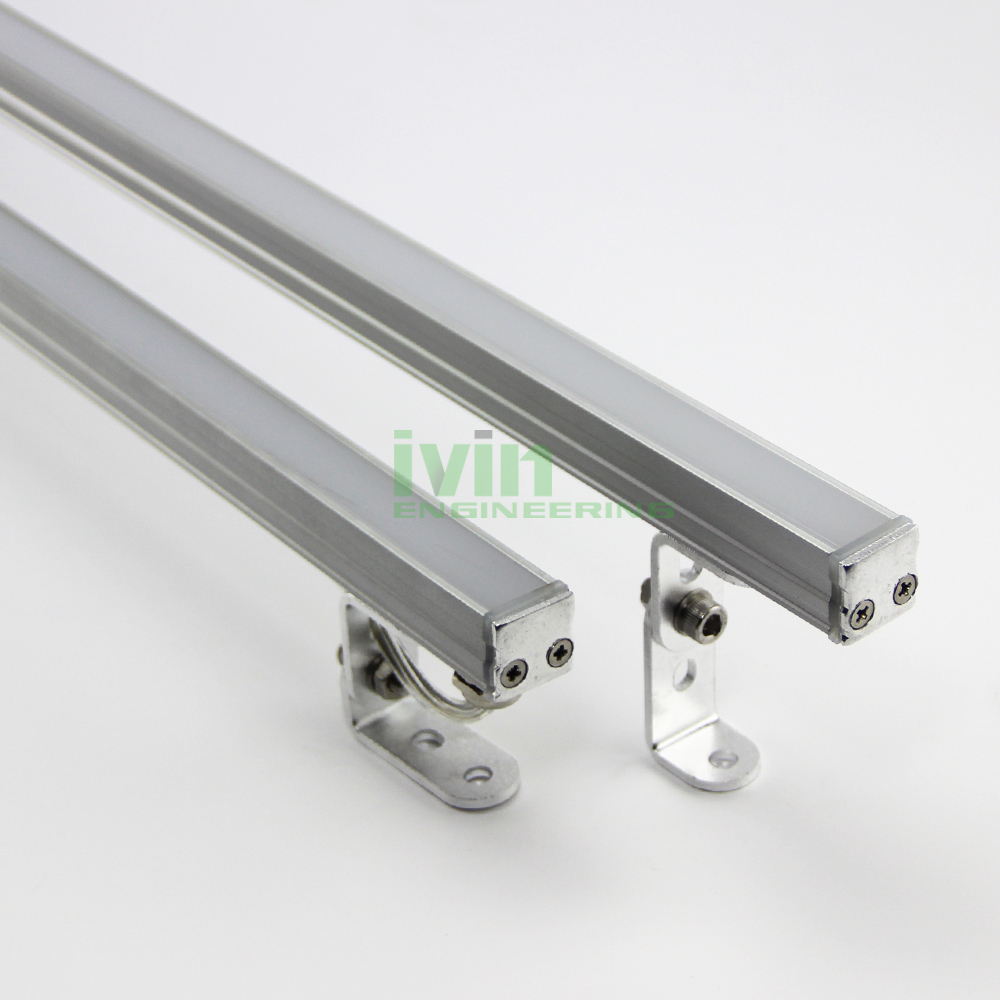

AWH-2121 LED architectural light housing.

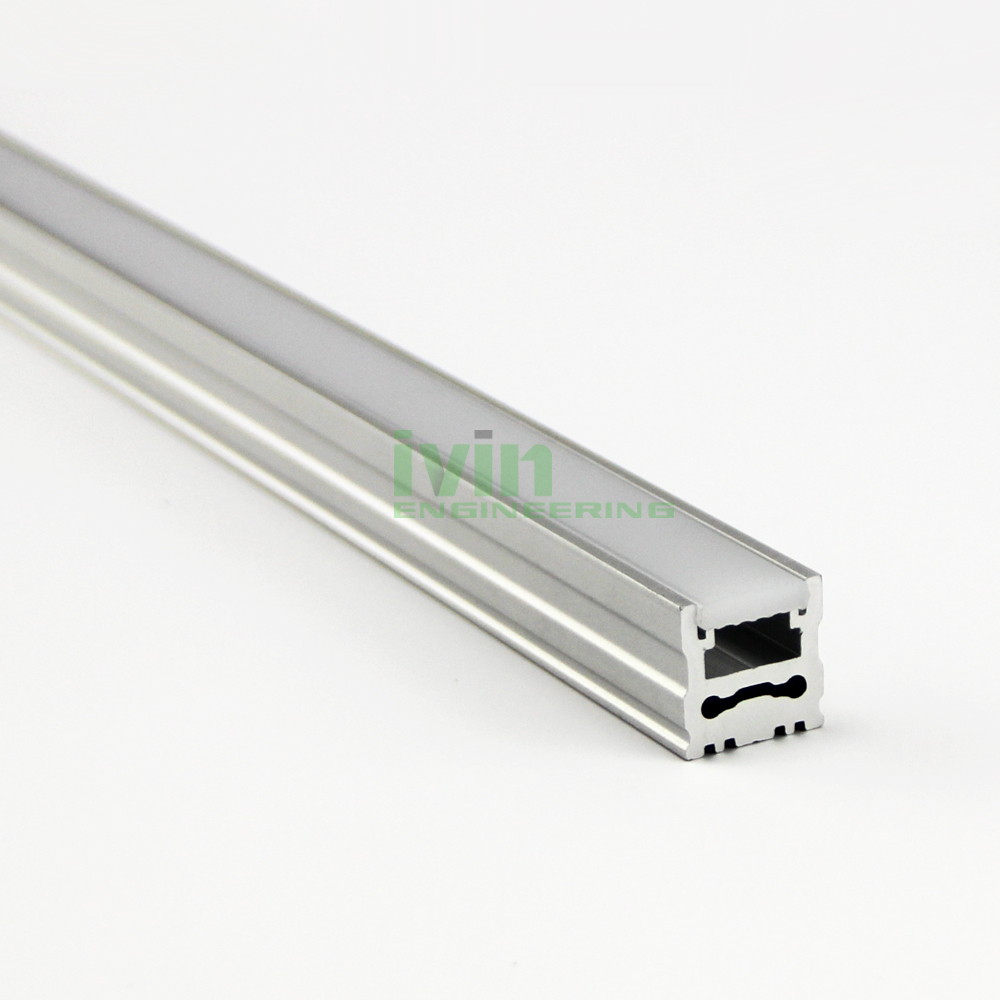

Aluminum profile.                                           use 14mm width LED strips .         24W SMD LEDs. Sand blast silver anodize finish.                                        with 1 or 2 PG7 holes at back .                                            0.61kg / M.

Diffused PC cover.                                   W=16.2mm / T= 3.8mm.                                              about 83% light  transmittance.                                      Weight: 75g / M.

Silicon sealingh gasket .                                                  Silicon material - IP65 / IP66.                                         Highly weather resistance.

End cap  Aluminum1050 material.                      Sand blast + Silver anodize finish.                                                                        + 4 M3.5 self tapping screws.

21mm*21mm*Length.

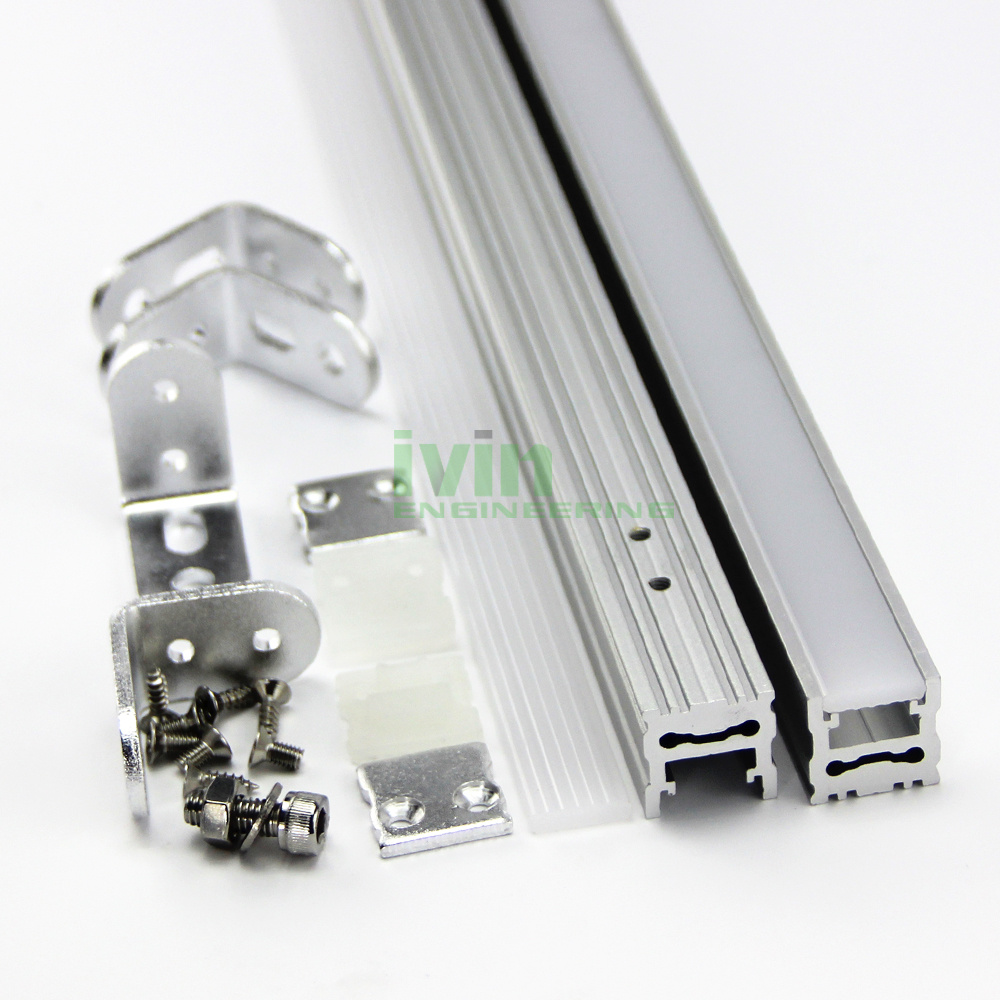

1 * Alum profile
1 * Diffused PC cover
 2 * silicon sealing gasket
2 * Aluminum End caps
4 * M3.5 Screws
1Pce or 2 Pcs PG7
1M set 0.77kg.
