LED linear Pendant light heatsink, LED linear profile Heat sink.
    发布时间: 2018-06-16 15:15

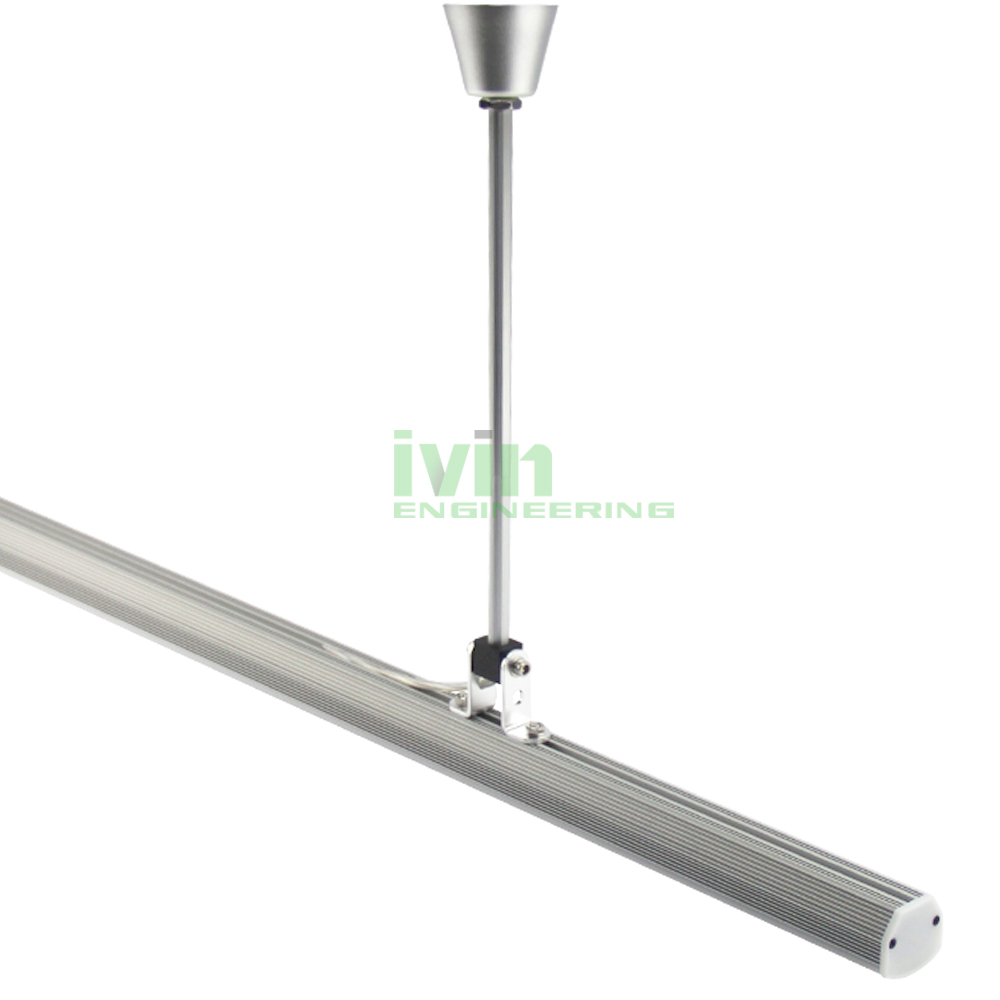

LED linear Pendant light heatsink.
DG-4439

LED linear Pendant light heatsink, LED linear profile Heat sink.
LED linear Pendant light heatsink, LED linear profile Heat sink, LED linear light housings.


DG-4439



Article Specification

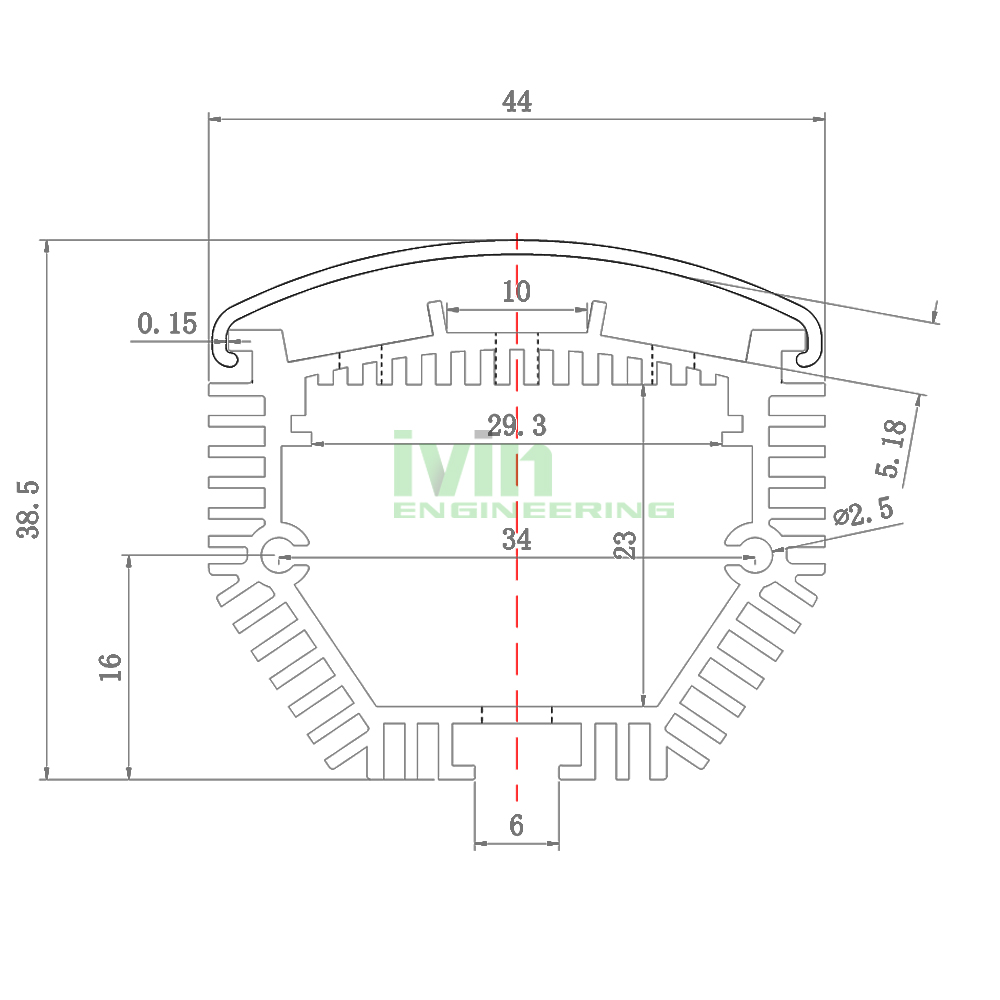

Aluminum profile.
use 3 * 10mm width LED strips.
100# sand blast + silver anodize surface finish.
with wire holes machined.
830g / M.
44*32*1000mm
( 1.2M 1.5M  available.)
PC cover .
Diffused PC cover.
about 85% light  transmittance.
(Transparent PC available too.)
60g / M. 		44*9*1000mm
T=1mm

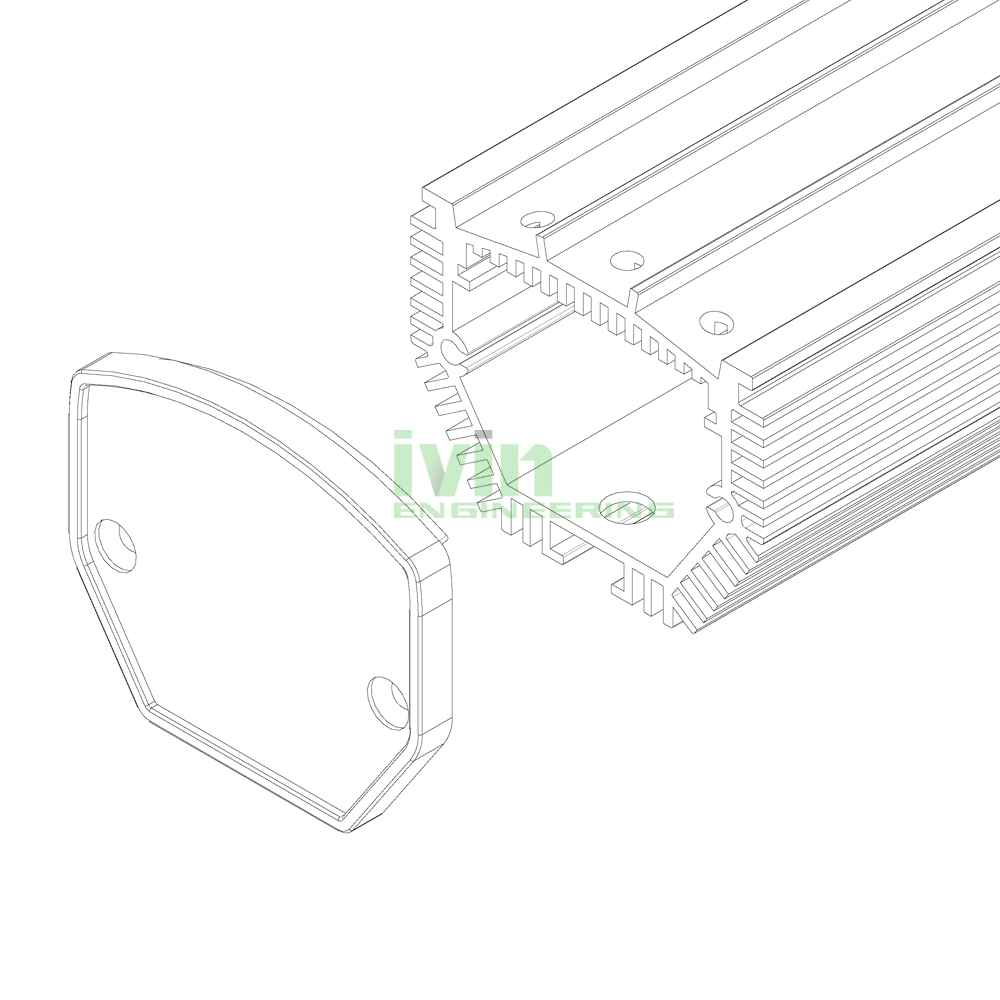

End cap - White.
+ 4 M4 self tapping screws.
15g / 2 Pieces. 		44*39mm

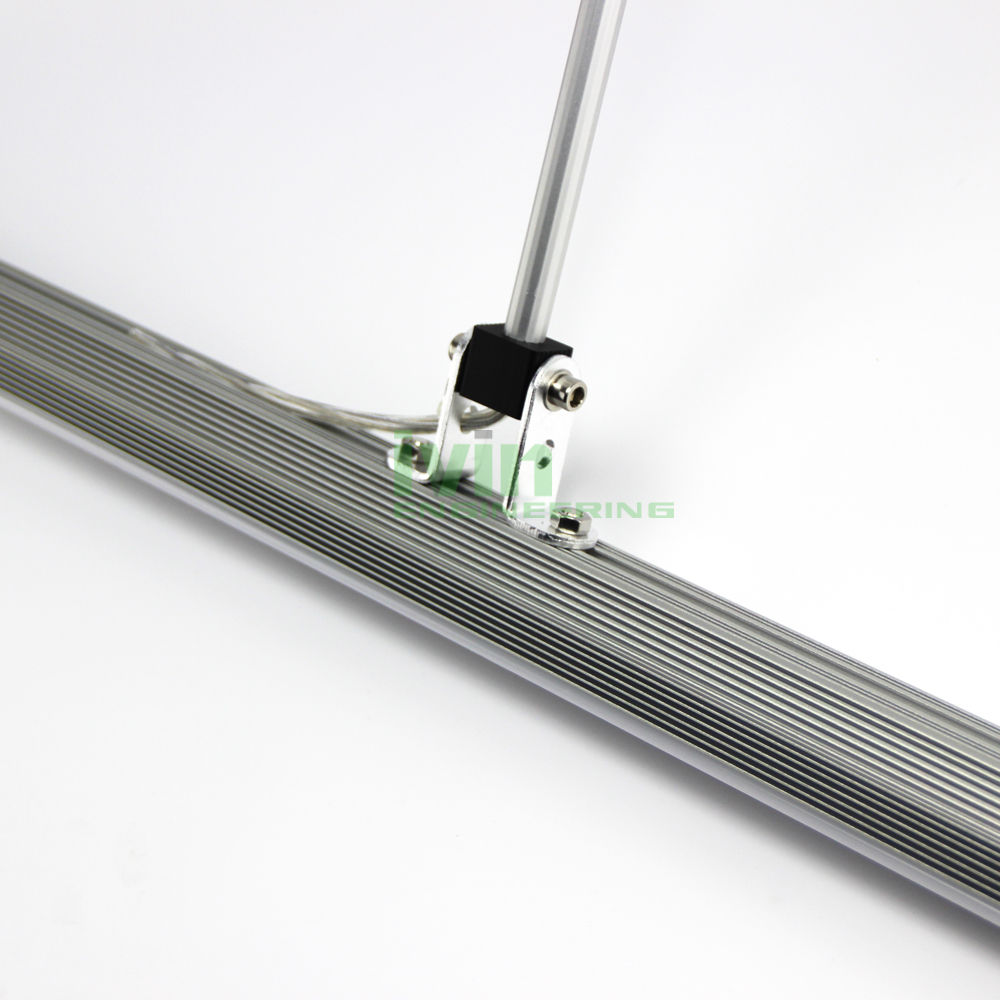

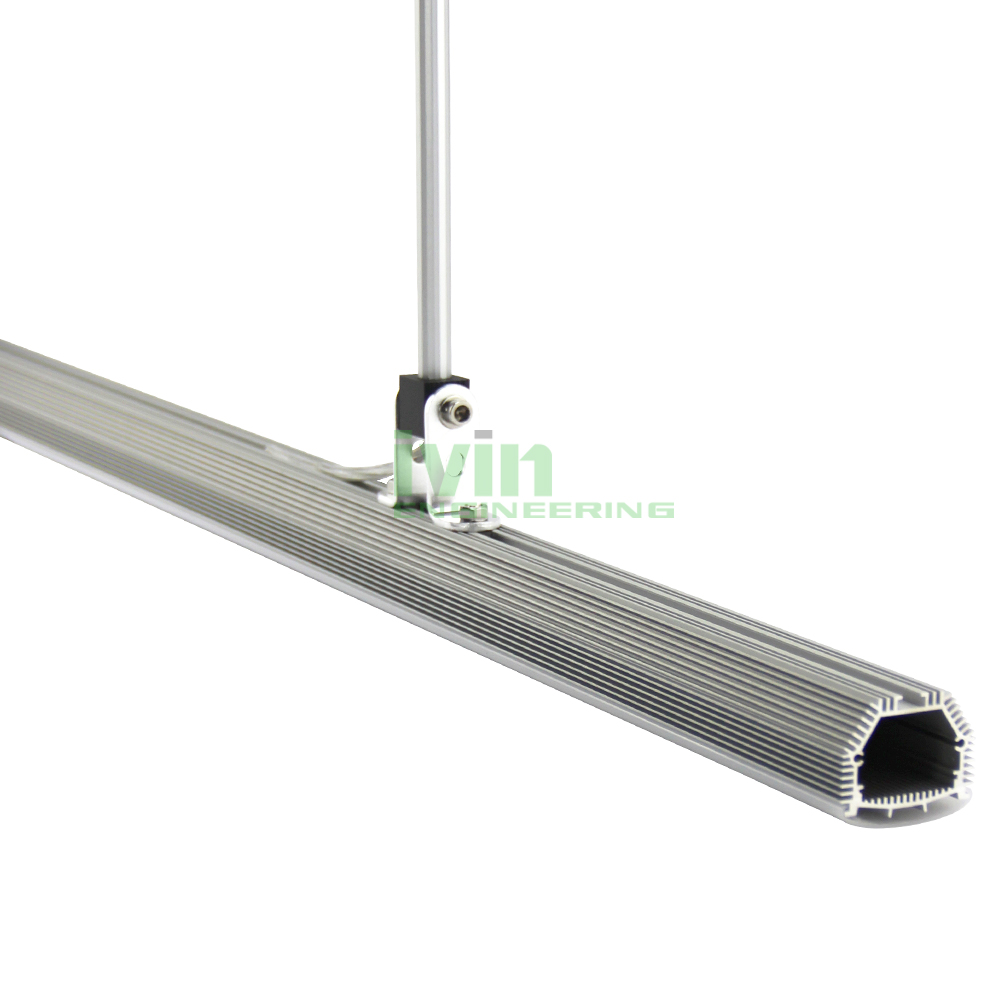

LED pending light pendant fixture.

Angel adjustable.
Wire in from the hollow aluminum bar.
