LED pendant light housing, LED pending light casing.
    发布时间: 2018-06-16 12:19

LED pendant light housing.
DG-3838


Commercial office LED pendant light housing, 30W LED pending light casing.



DG-3838



Article Specification
DG-3838

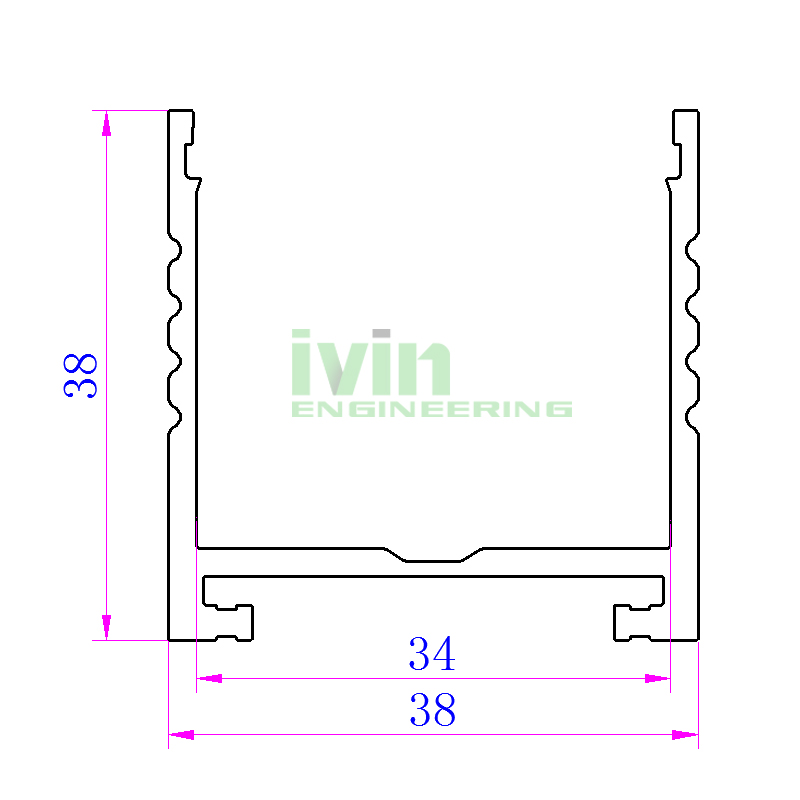

Aluminum profile.
Use 34mm width PCB / strips.
570g / M.
38*38*1000mm

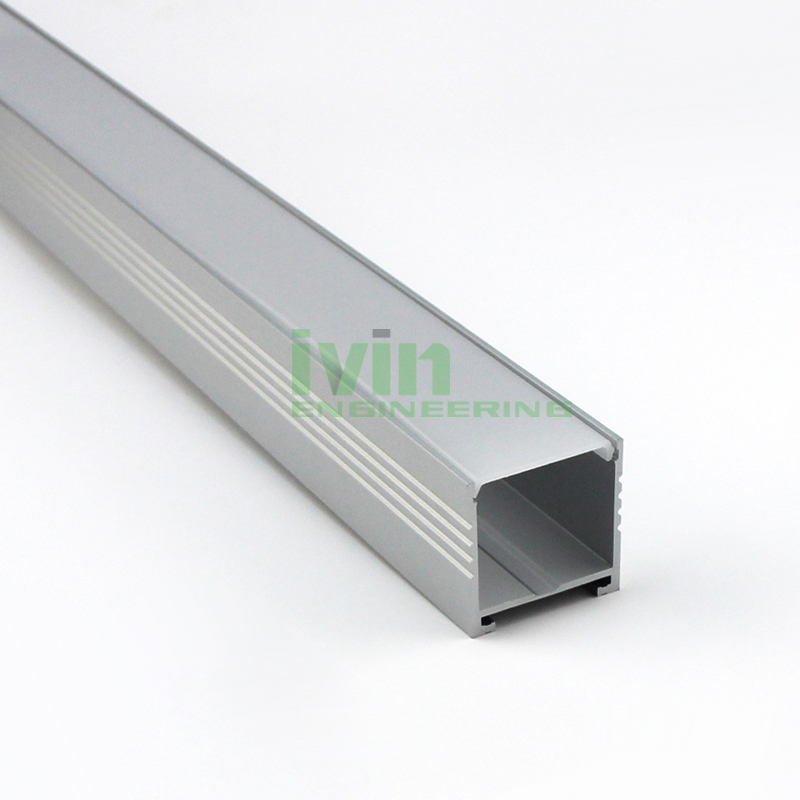

Diffused PC cover.
DG-3838 and DG-3838B common use.
about 85% light  transmittance.
80g / M.
1000mm cut lenght
End cap.
DG-3838 and DG-3838B common use.
 ABS - White color.
7g / 2 Pieces.


1 Piece with wire hole,
1 Piece without wire hole.
2 Pcs for each set housing.

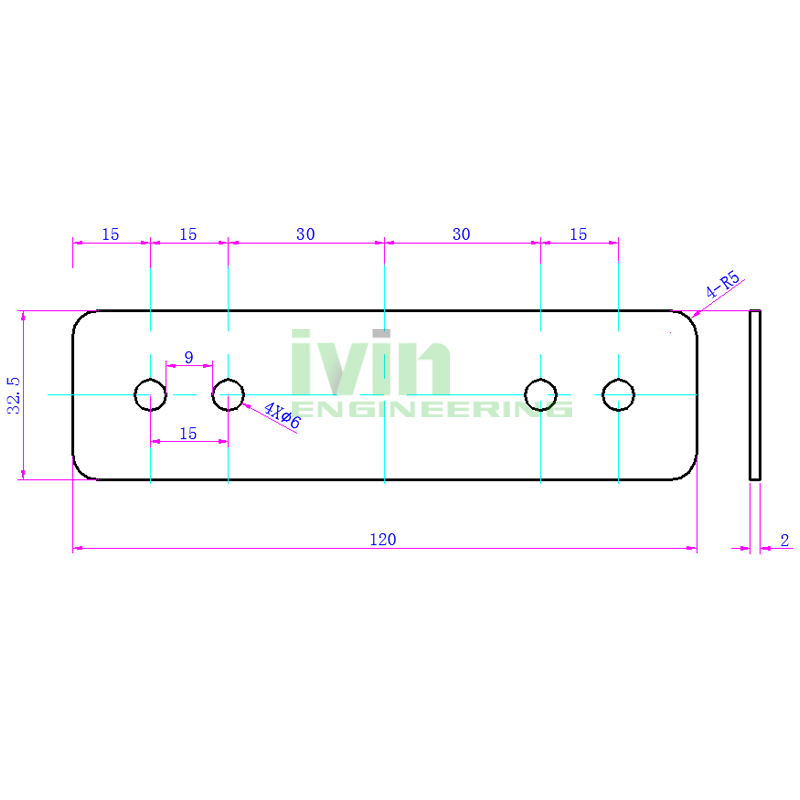

Link Plate
AL1050 alum plate.
 DG-3838 and DG-3838B common use.
to make a long linear / series link.

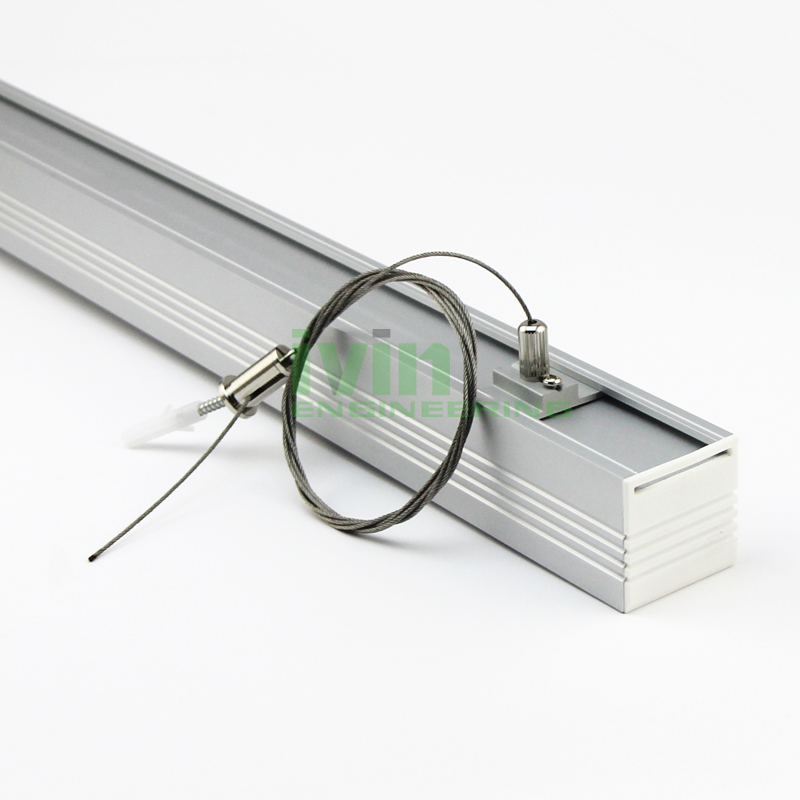

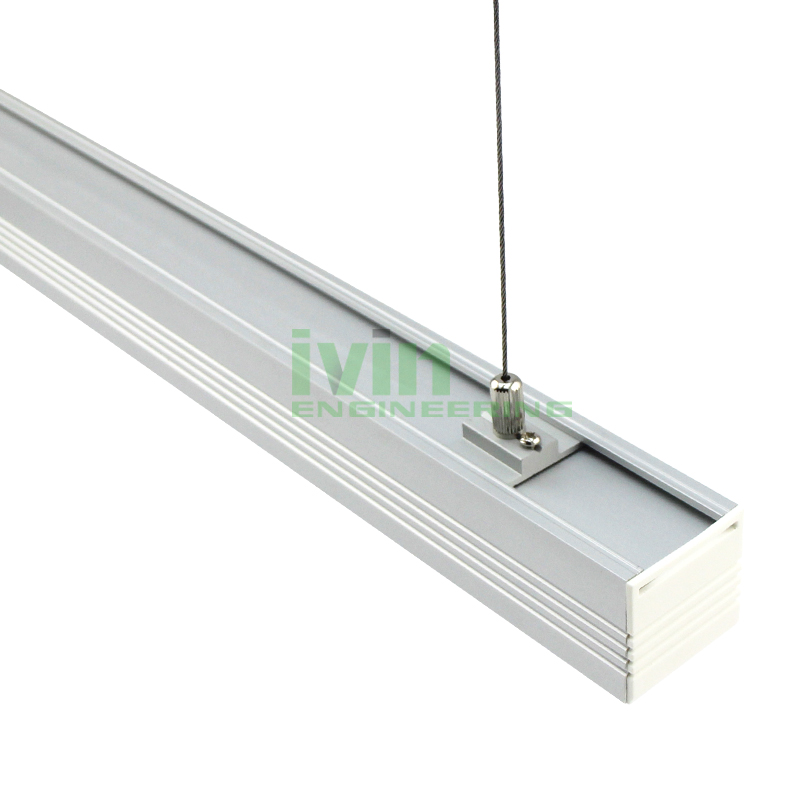

M6 Pendant System.
1.5 M lenght steel rope.
Other main parts are copper material
with nickle plating.
+ 2 M6 pendant clips.
Can stand 20KG + weight.

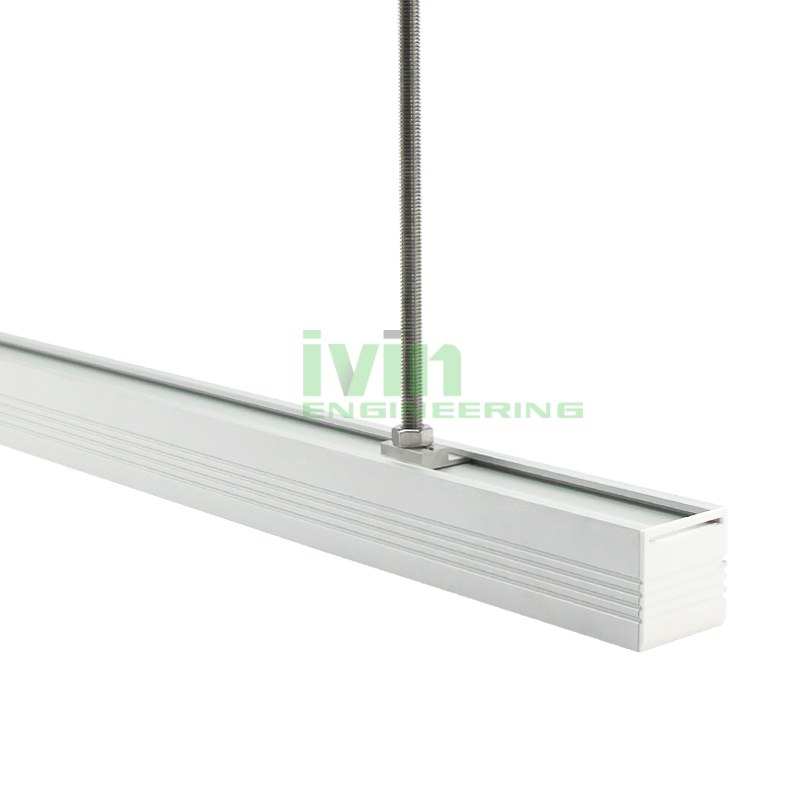

M8 Pendant System.
1* M8 screw bar + 2 *  M8 nut + 1* M8 Pendant clip..
M8 SUS304 stainless steel material.
Can stand 30KG + weight.

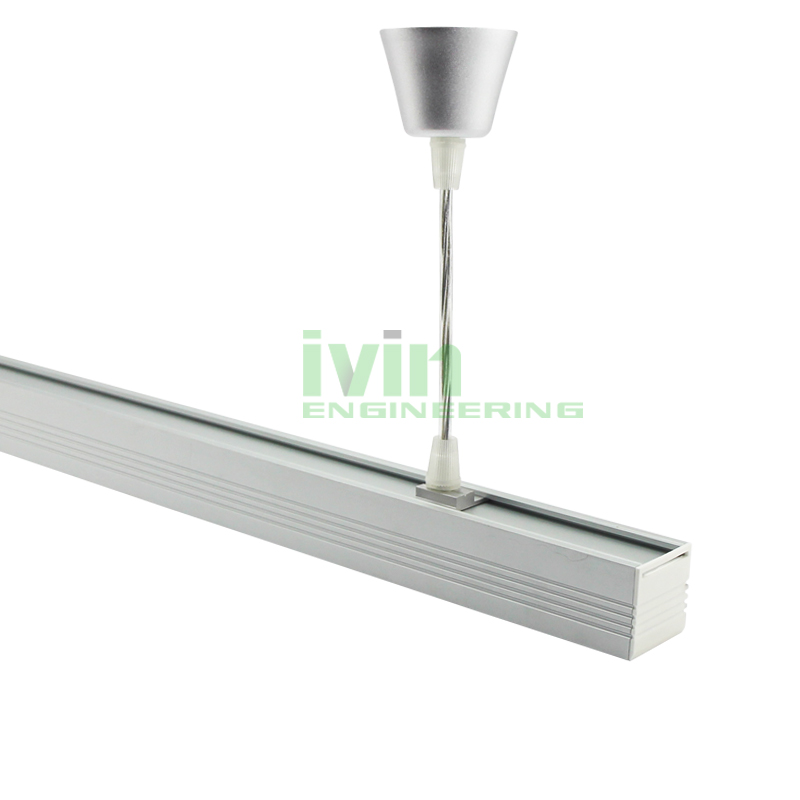

M10 Pendant clip +   Spinning cover + 1.5M * pendant wire + 2 M10 wire fix clamp + M10 pendant clip.
Can stand 100KG  weight.

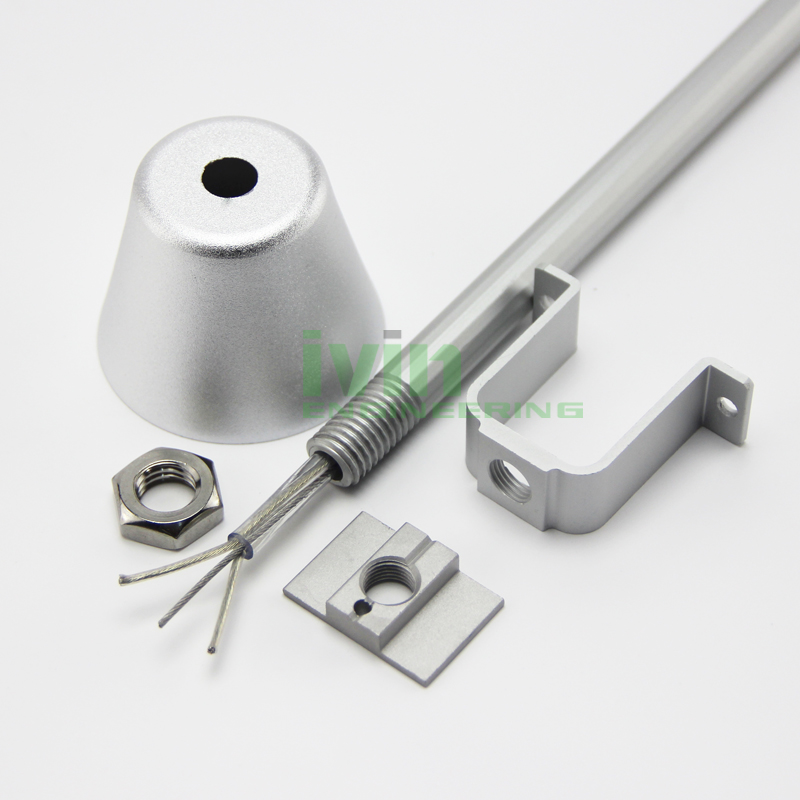

M12 Pendant clip +   Spinning cover + 1.5M * pendant wire + 2 M10 wire fix clamp + M10 pendant clip.
Can stand 100KG  weight.
