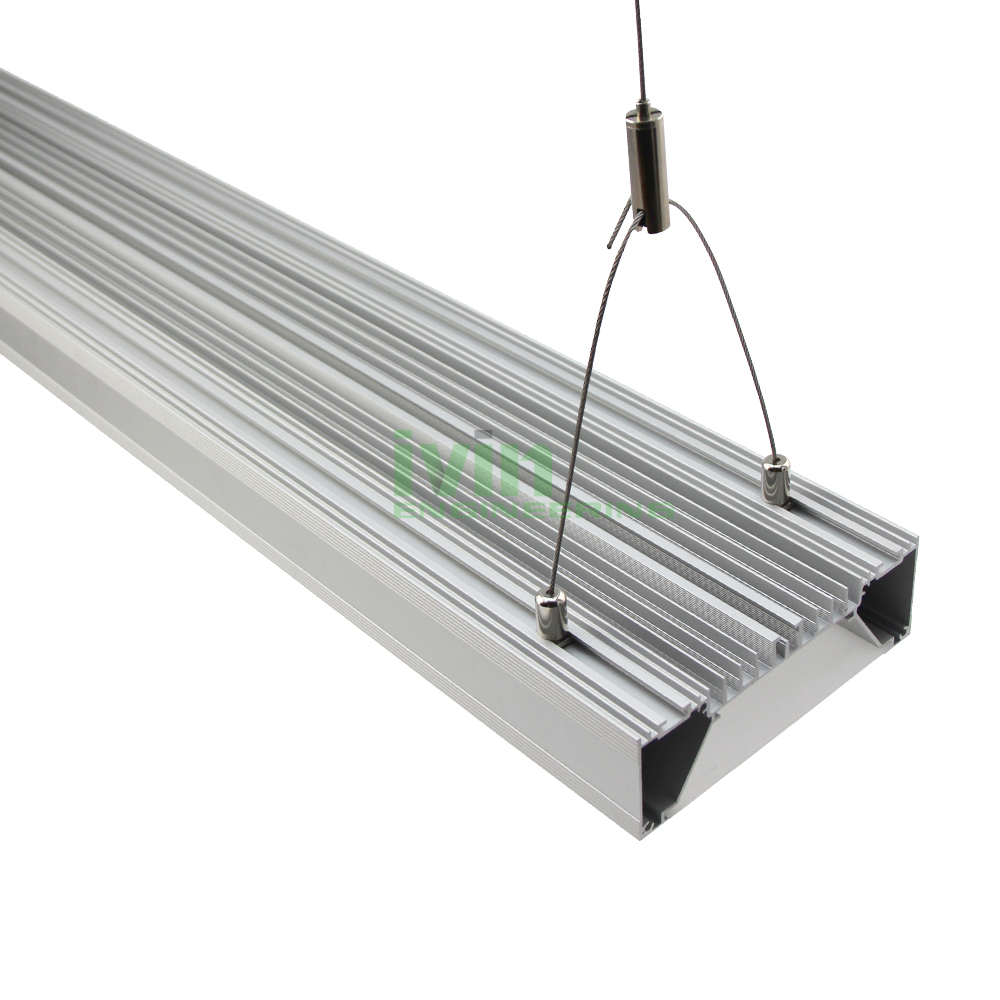

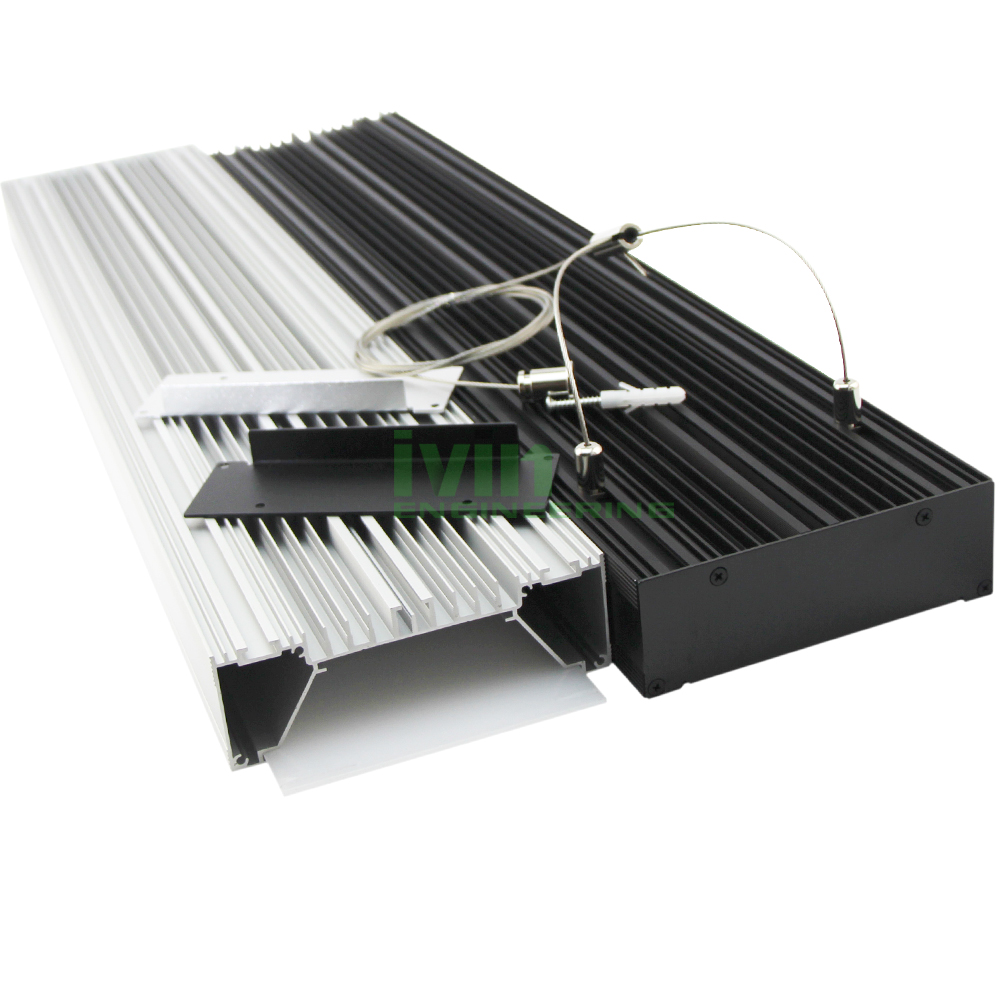

120W LED pendant light heat sink, LED office pendant light housing.
发布时间: 2018-06-09 21:34
120W LED pendnat light heat sink. D-12040
120W LED pending light heat sink, 100W LED office pendant light housing.
D-12040

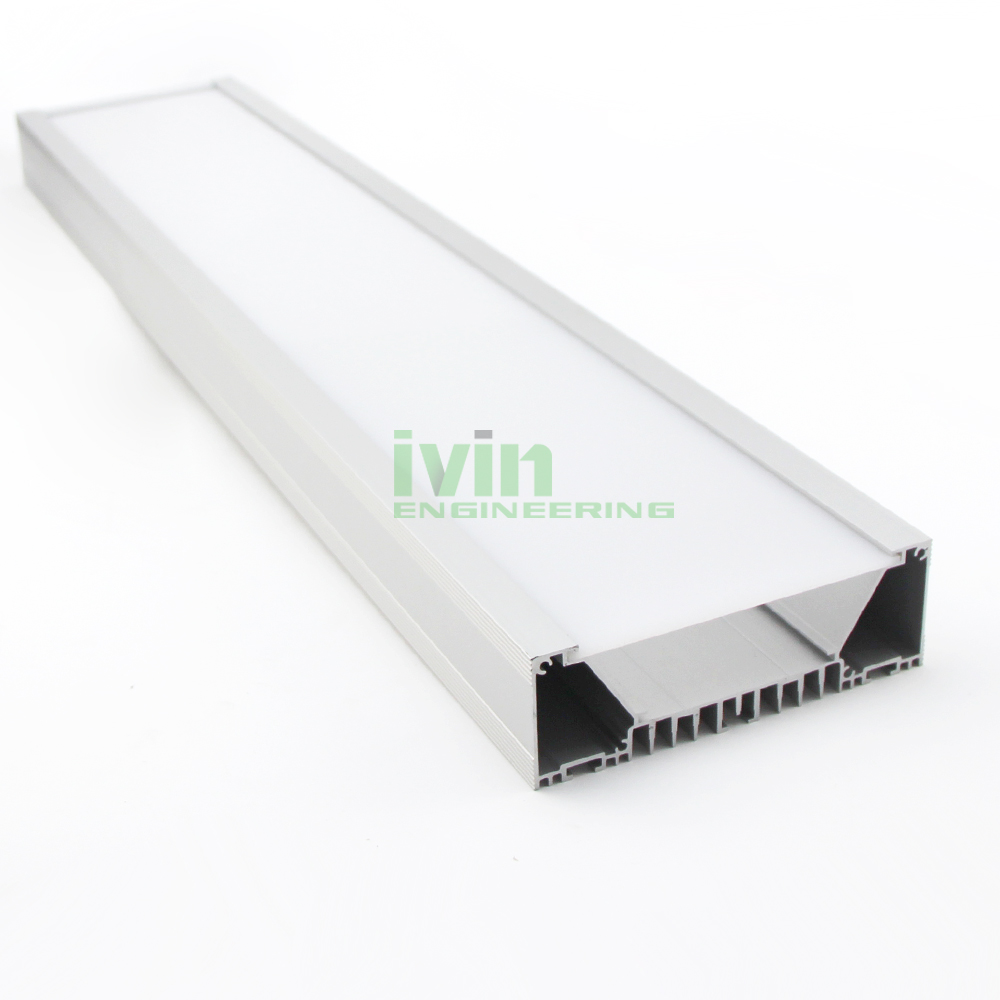

Aluminum profile, 120W LED heat sink.
Fit 60mm width * 2mm thickness PCB.
Power: 80W / M by using SMD LEDs.
Silver / Black anodize finish.
( Add USD0.6 / M for black anodize. )
Weight: 1630g / M.
Diffused PS cover plate .
Width 100mm * Thickness 2mm.
about 85% light transmittance.
Weight: 200g / M.
Aluminum end cap. （each end to use 1 Piece. ）
Sand blast + silver / black anodize.
With 8Pcs M3*12 S.S. Screws. Weight: 50g / 2 Pcs.

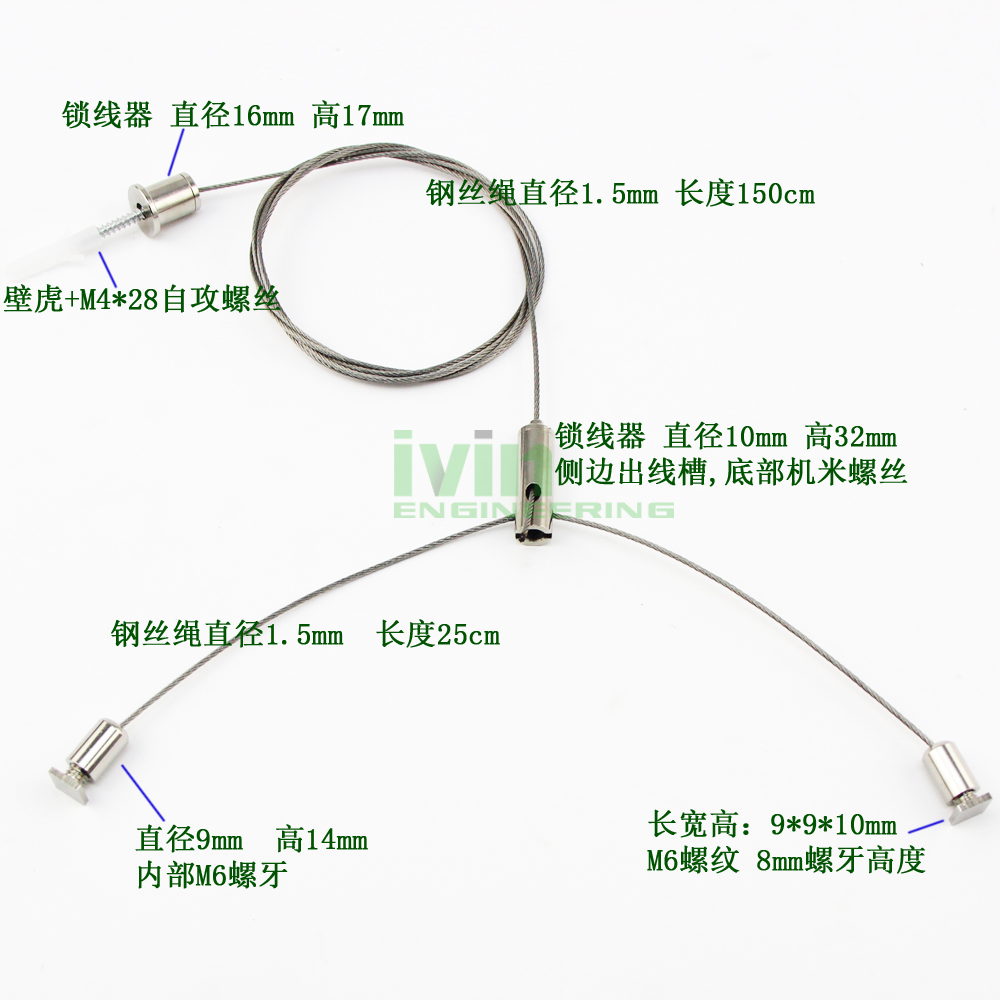

Pendant wire System.
1.2mm Diameter * 1.5 M lenght steel rope - adjustable.
2 Clips to hold the housing.
Other main parts are copper material
with nickle plating.
Can stand 20KG + weight.
120g / 2 set.
(each end to use 1 set. ）

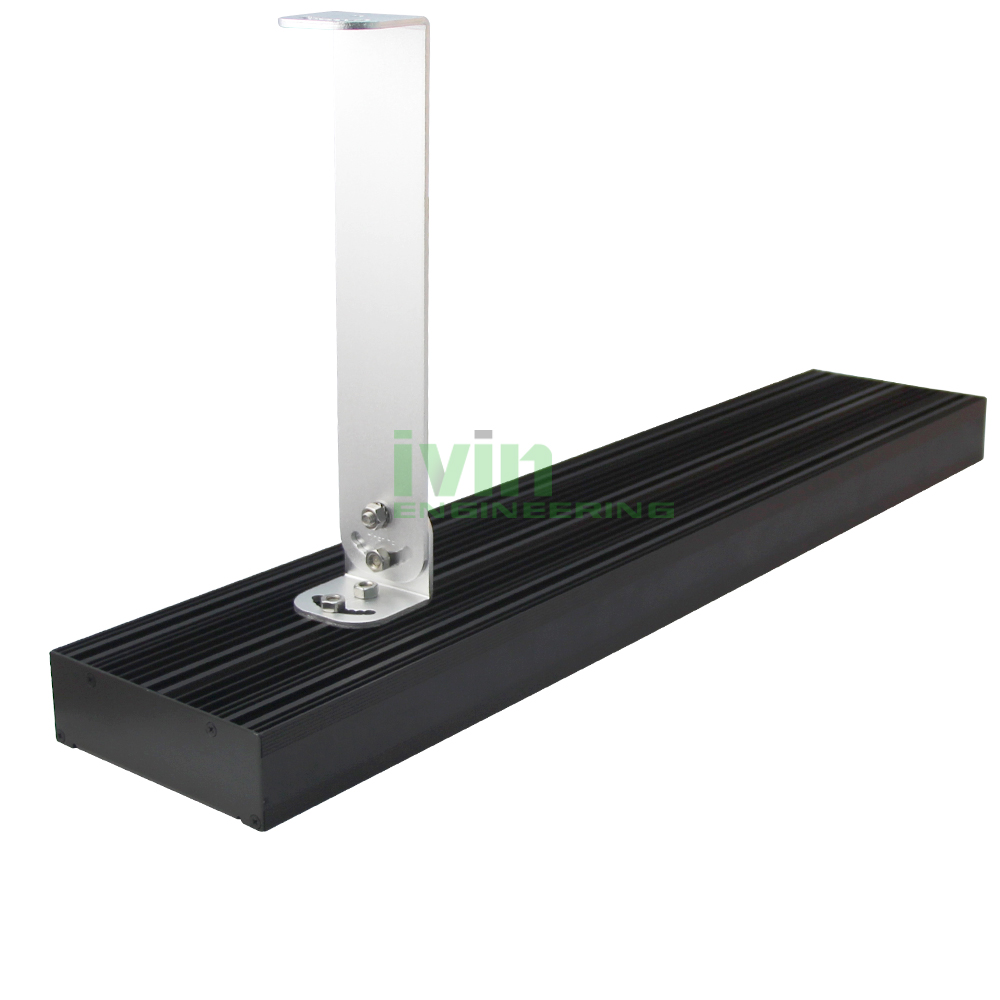

Aluminum install bracket.
( Commonly used by D-100 )
AL1050 aluminum plate,
100# sand balst + silver anodize finish.
+ 4 M6 screw + 4 M6 nut.
Can hold about 10kg each piece.
60W PCB ( to fit 0.6M heat sink )
112Pcs 5730 LEDs.
Base Material: Aluminum
Layer: 1 layer
Thermal conductivity: 1.5W/m.k
Copper layer: 1oz
Solder Mask: White
Silkscreen: Yellow
Surface finish: Leadfree hot air solder leveling.
Outline Profile: CNC routing
