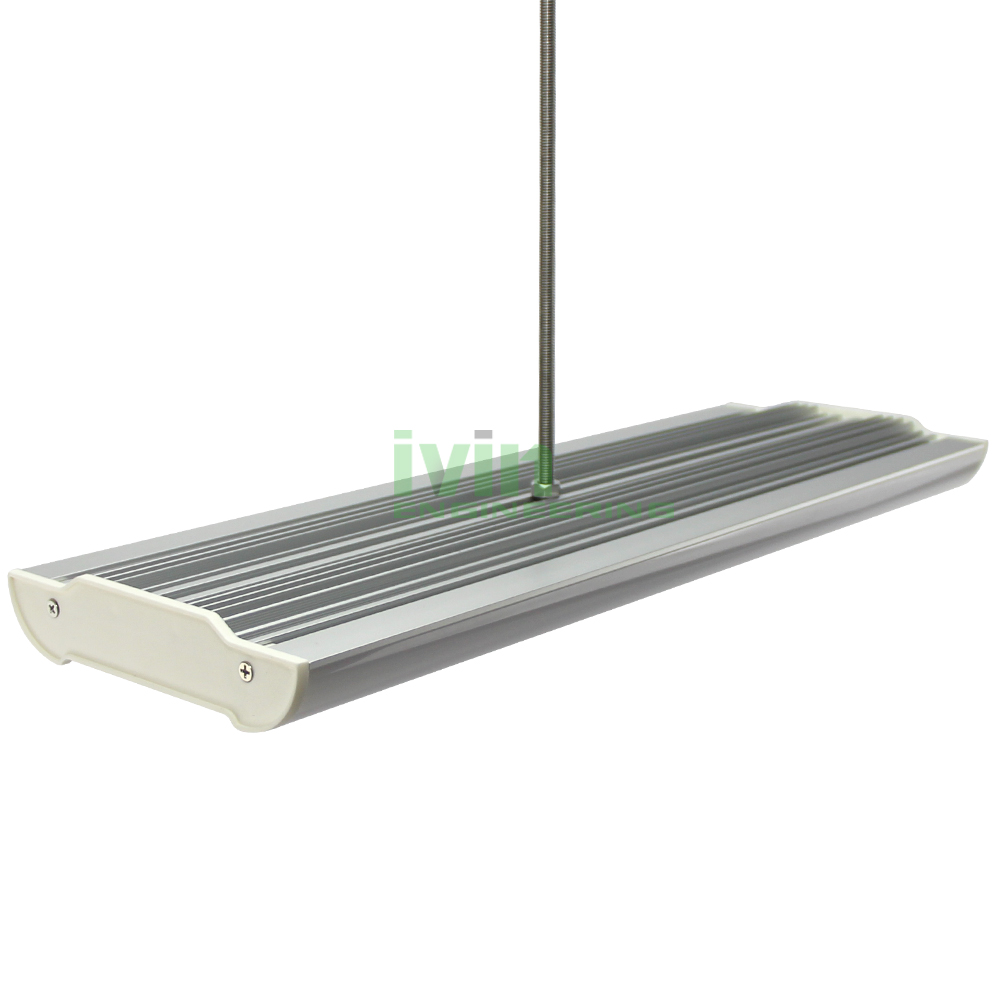

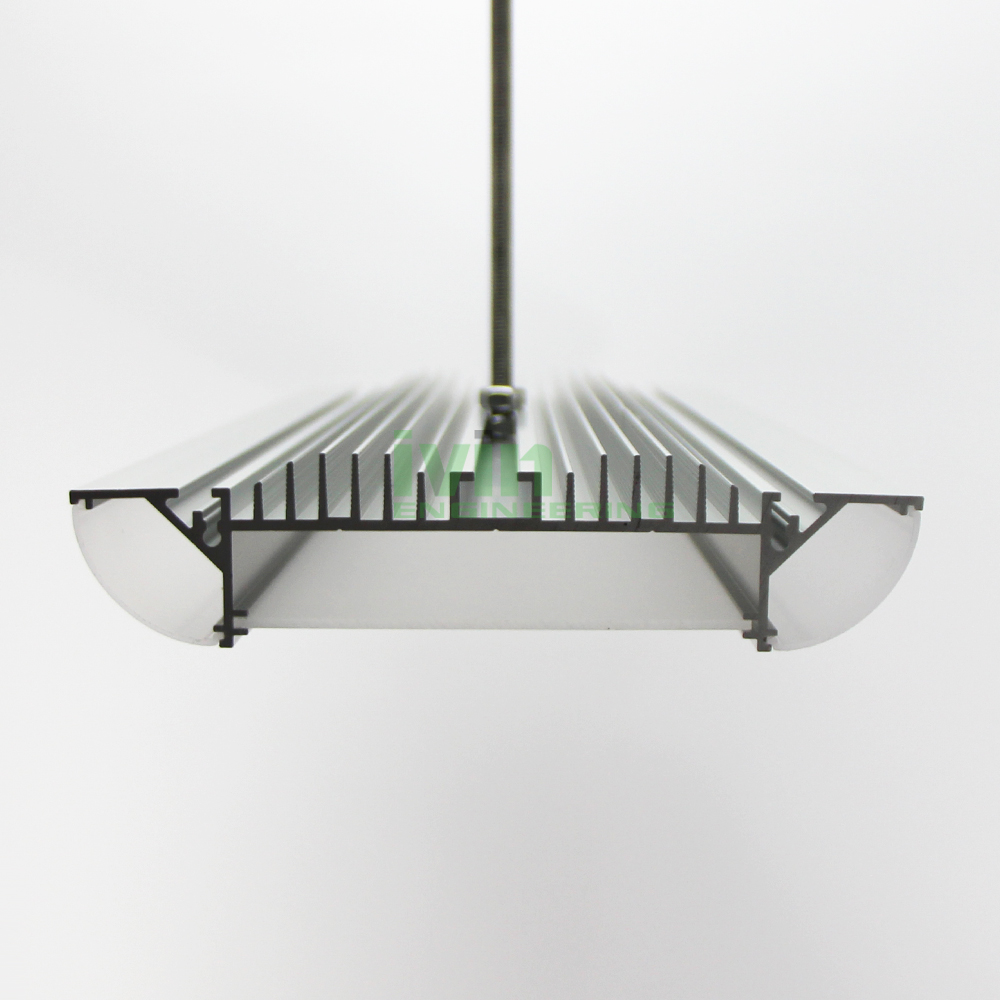

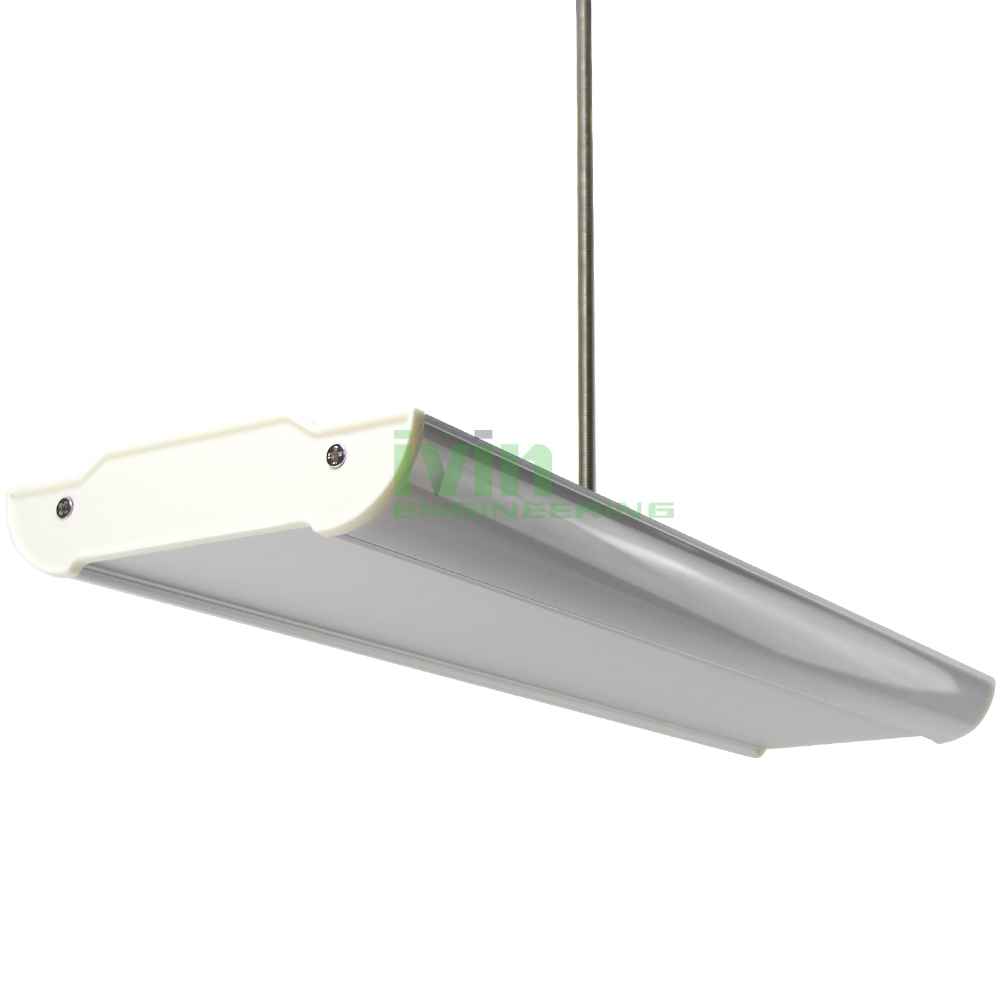

160W LED pendant light housing,150W LED commercial pending light heat sink, 160W LED pendant light housing.

D-1650 LED hanging light heat sink.

Aluminum LED heat sink.                                           use 2 * 20mm width LED strips  +         1* 100mm width LED module .              Silver / Black anodize finish.                                        with wire holes.                                    Black anodize add USD1.0 / M .           1.89kg / M.

Diffused PS cover plate .                                   W=102mm / T= 2mm.                                              about 85% light  transmittance.                                      Weight: 205g / M.

PC cover .                                                  Diffused  / Transparent.                           85% / 92% light  transmittance.                                        125g / 2Pcs.

End cap  ABS material.  White / Black.                                     + 4 M3 self tapping screws.                                                                                                                      40g / 2Pcs.

M8 screw bar + 3 M8 nut.
SUS304 stainless steel material.
Can stand 30KG + weight.
 310g / set.


167mm*38.6mm*Length.
1 * Alum profile
1 * PS cover plate
2 *  PC cover
2 * End caps
4 * M4 Screws
2 * Pendan wire
1M set = 2.4kg.


LED driver install at the back.
For chosen too.

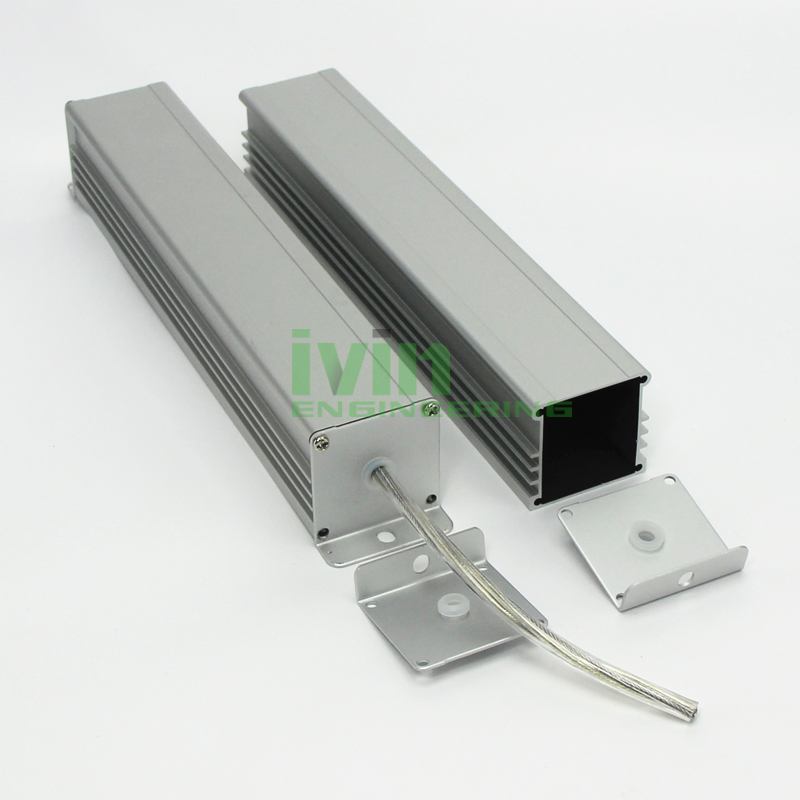

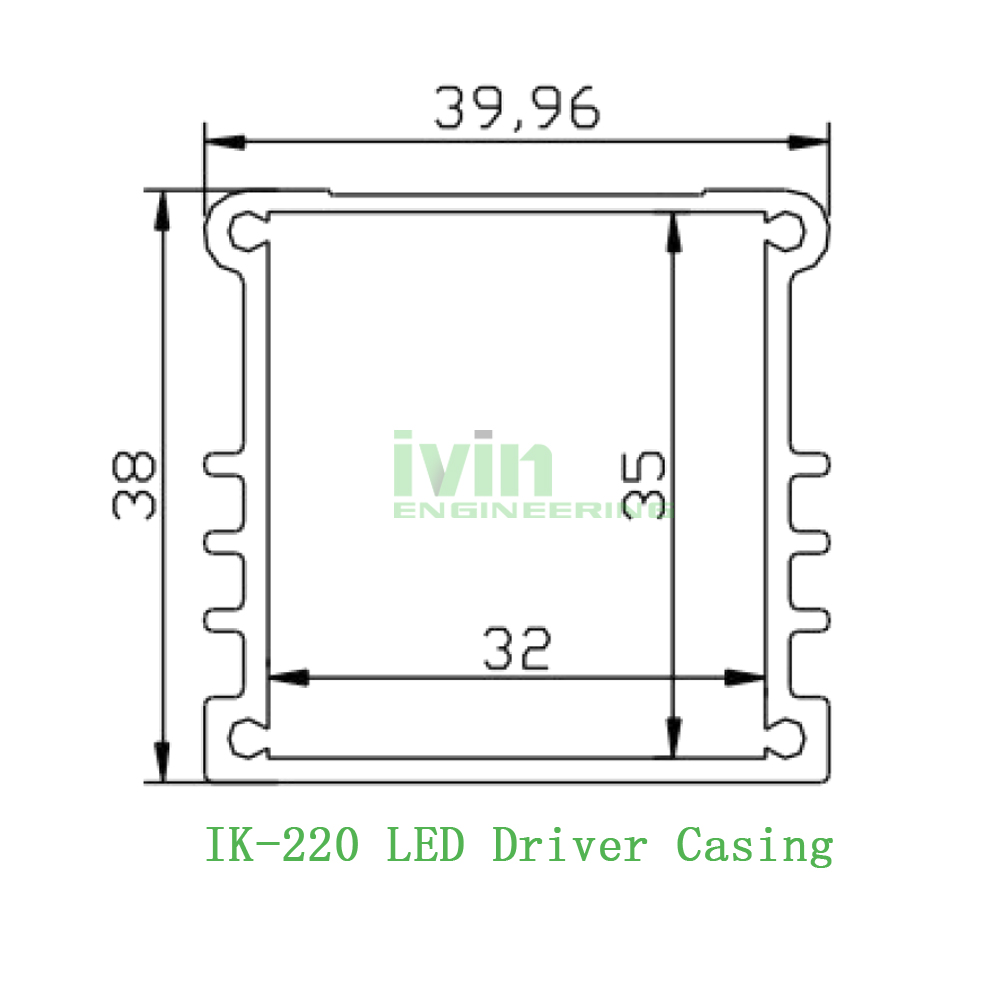

IK-220 Driver casing.
1* Aluminum6063 profile  + 2 Pcs Al1050 end caps  .
39.96*38mm size.
35*32mm Driver spacing.
