240W LED Aluminum Magnesium alloy heat sink, LED high bay light heat sink.
    发布时间: 2018-06-05 20:59

240W LED Aluminum Magnesium alloy heat sink. ID-350

240W LED Aluminum Magnesium alloy heat sink, LED high bay light heat sink.

240W LED Aluminum Magnesium alloy heat sink,200W  LED high bay light heat sink.

Heat sink Details:
Material Magnesium Aluminum alloy
Weight 2.18kg
Specification Φ350*40mm
Process Diecasting -tapping - deburring
Surface fiunish Powder coating



Model: ID-350
Power 150W 200W  240W   ( 1W SMD LEDs)

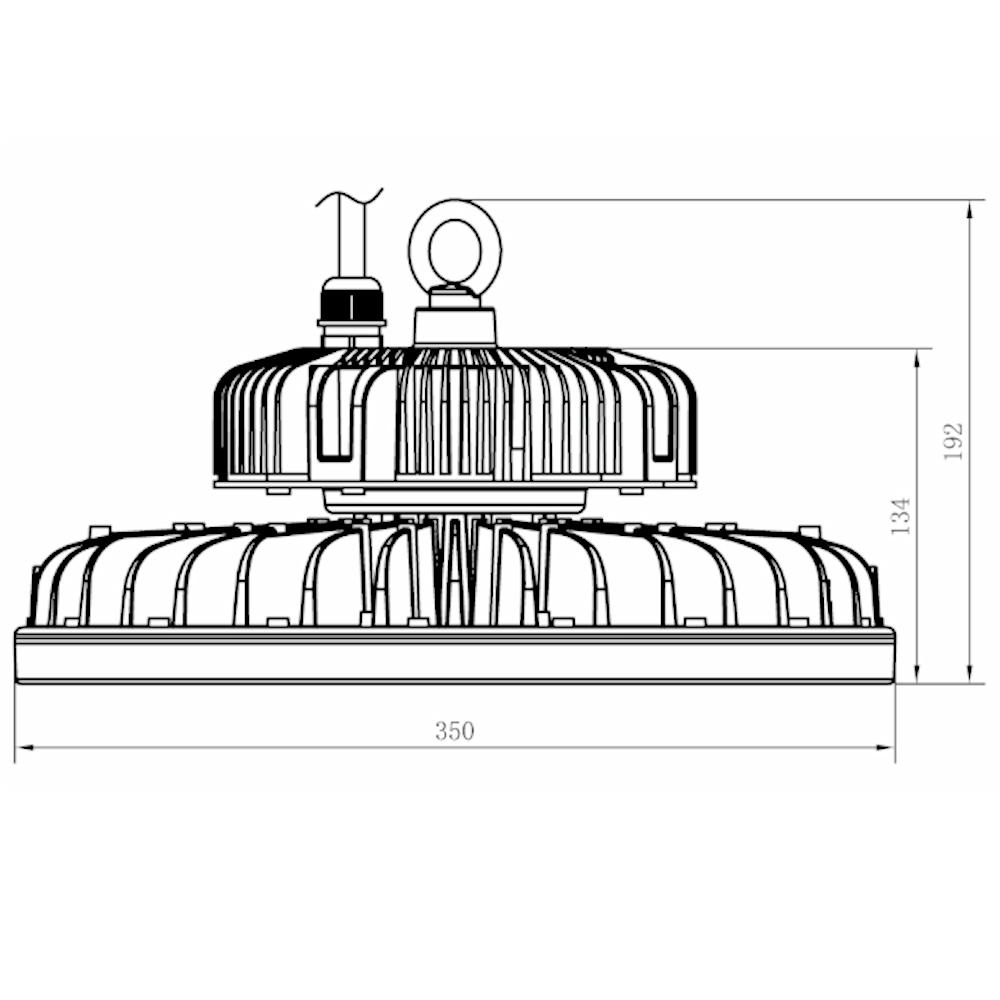

Spedcification:　 350mm diameter,   192mm height.
Weight  4.4KG (Full set housing with PCB )

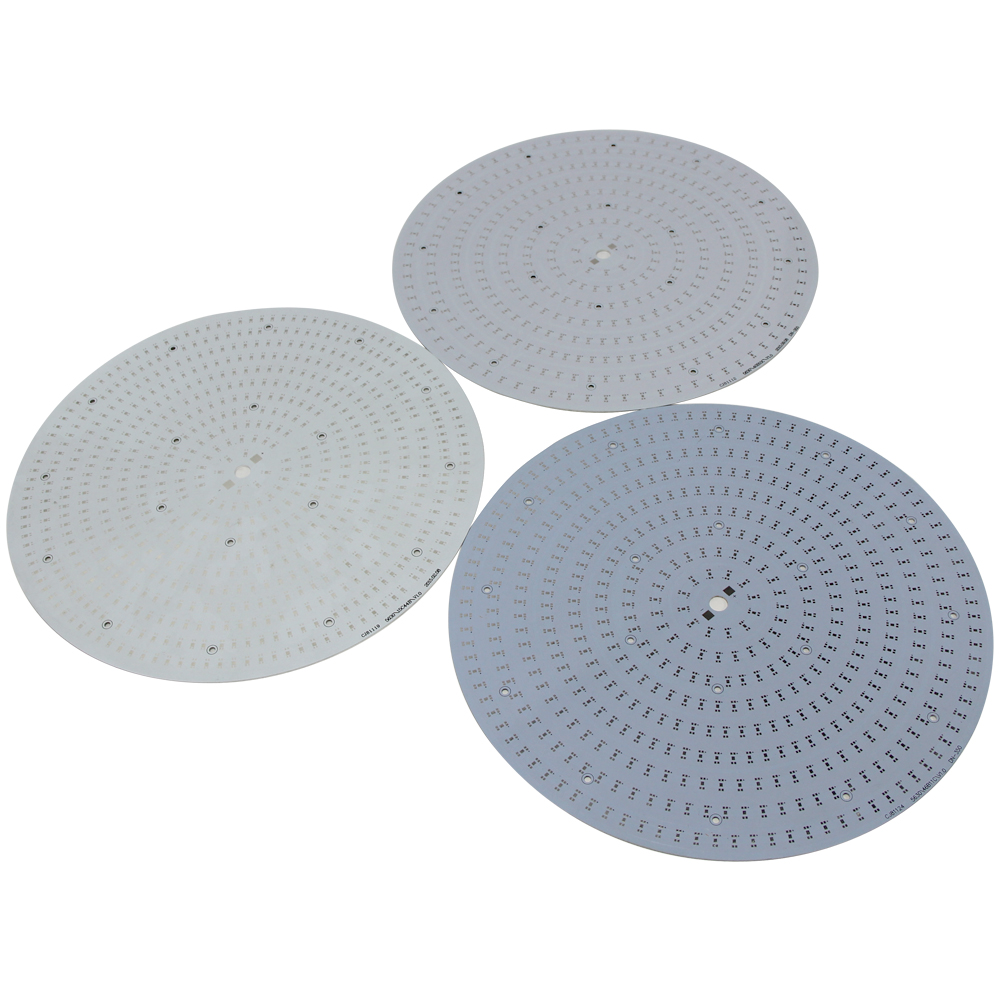

LEDs 5630 - 660Pcs - 240W - 15S44P
LEDs 5630 - 506Pcs - 240W - 11S46P
LEDs 5630 - 400Pcs - 200W - 10S40P
LEDs 3030 - 200Pcs - 240W - 10S20P
LEDs 3030 - 150Pcs - 200W - 10S15P

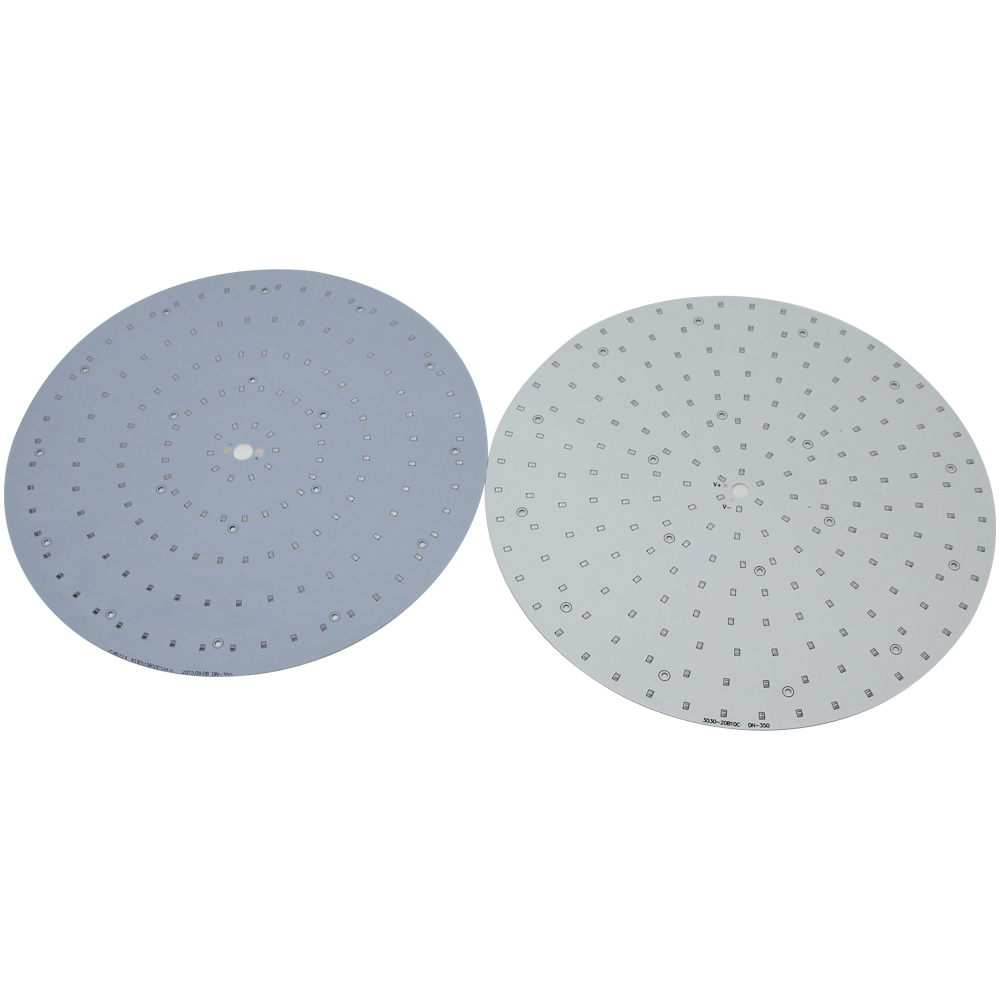

Specifications Φ299*1.5mm
Weight 270g
Copper layer 1oz
Thermal conductivity 1.5W/m.k
