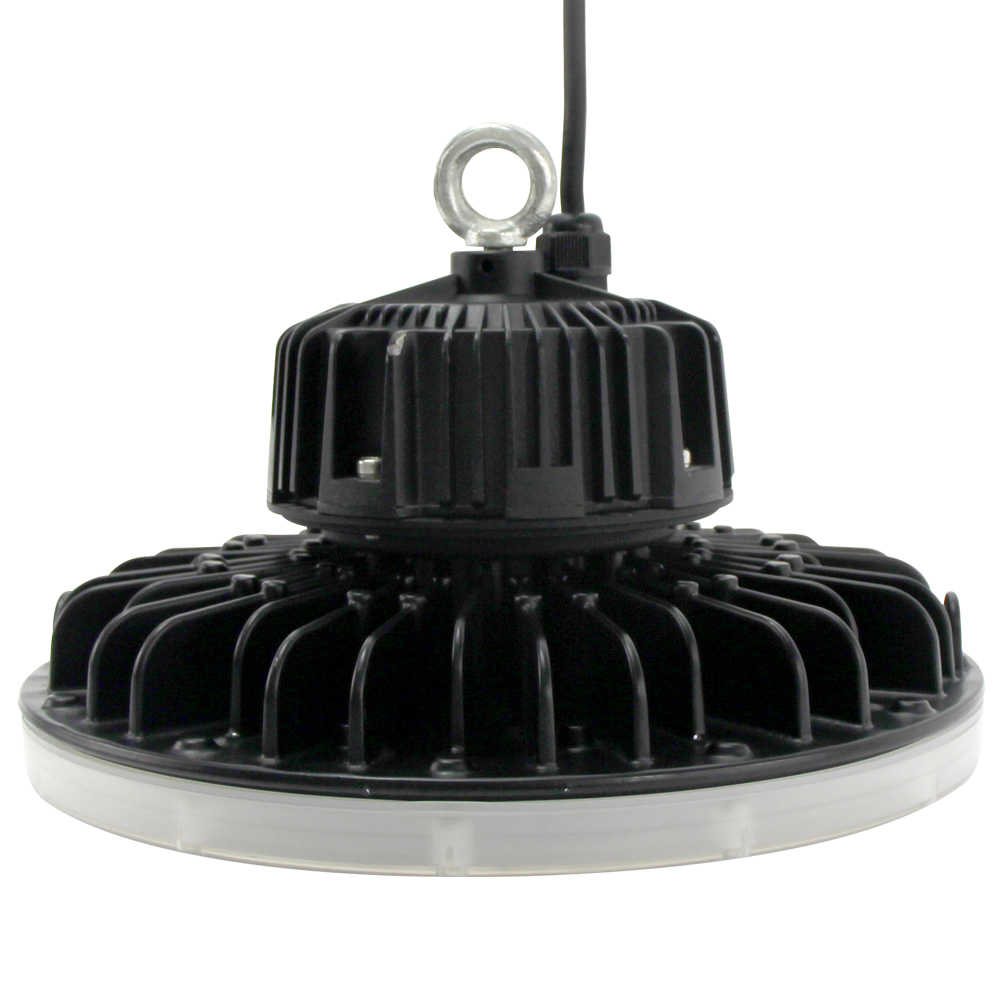

LED low bay light Magnesium heat sink, Magnesium aluminum alloy LED heat sink.
    发布时间: 2018-06-05 20:38

LED low bay light Magnesium heat sink.
ID-270

LED low bay light Magnesium heat sink, Magnesium aluminum alloy LED heat sink.

LED low bay light Magnesium heat sink,  Magnesium aluminum alloy LED heat sink.


LED Heatsink details:
Material Magnesium Aluminum alloy
Weight 0.89kg
Specification Φ270*40mm
Process Diecasting -tapping - deburring
Surface fiunish Powder coating


Model: ID-270
Power 80W 100W 120W     ( 1W SMD LEDs)
Spedcification:　 268mm diameter,   184mm height.
Weight 2.0KG (Full set housing with PCB )

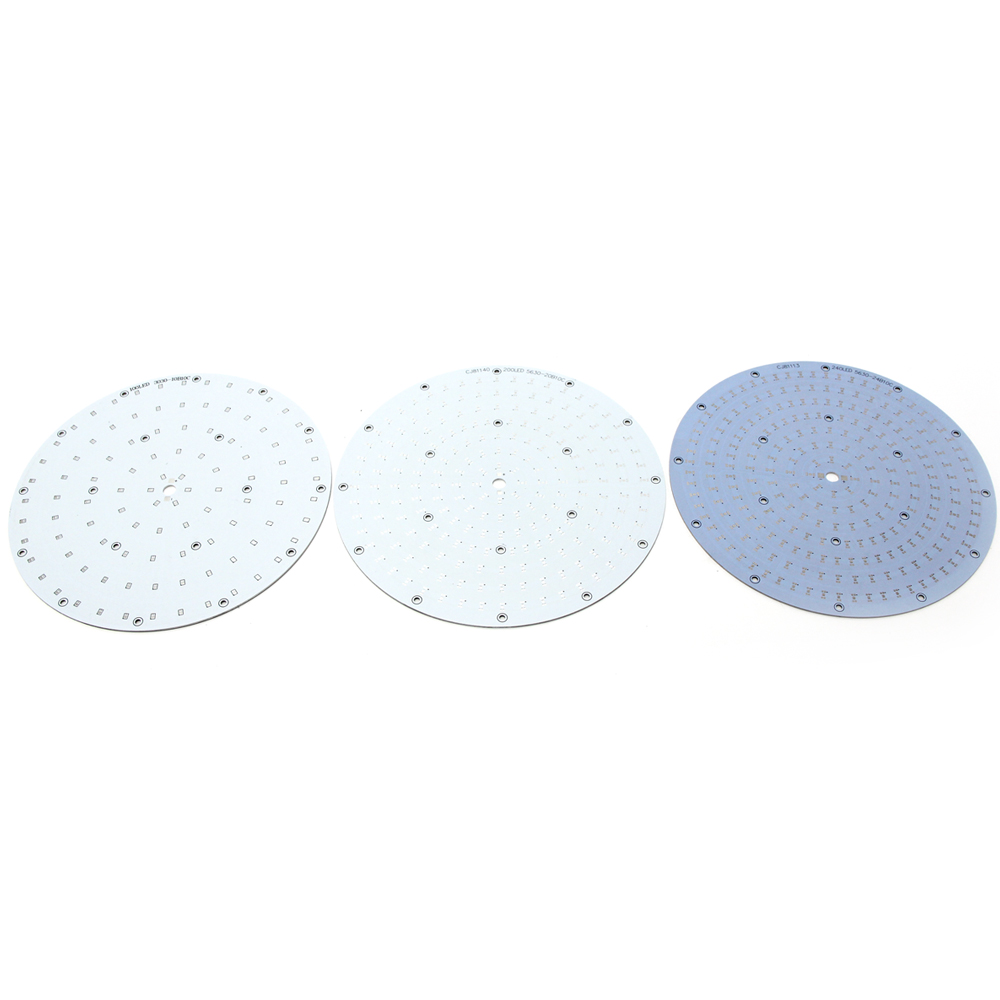

PCB details:
LEDs 5630 - 200Pcs - 100W - 10S20P
LEDs 5630 - 240Pcs - 120W - 10S24P
LEDs 3030 - 100Pcs - 100W - 5S20P
Specifications Φ219*1.5mm   （3030 Φ226*1.5mm ）
Weight 145g
Copper layer 1oz
Thermal conductivity 1.5W/m.k
