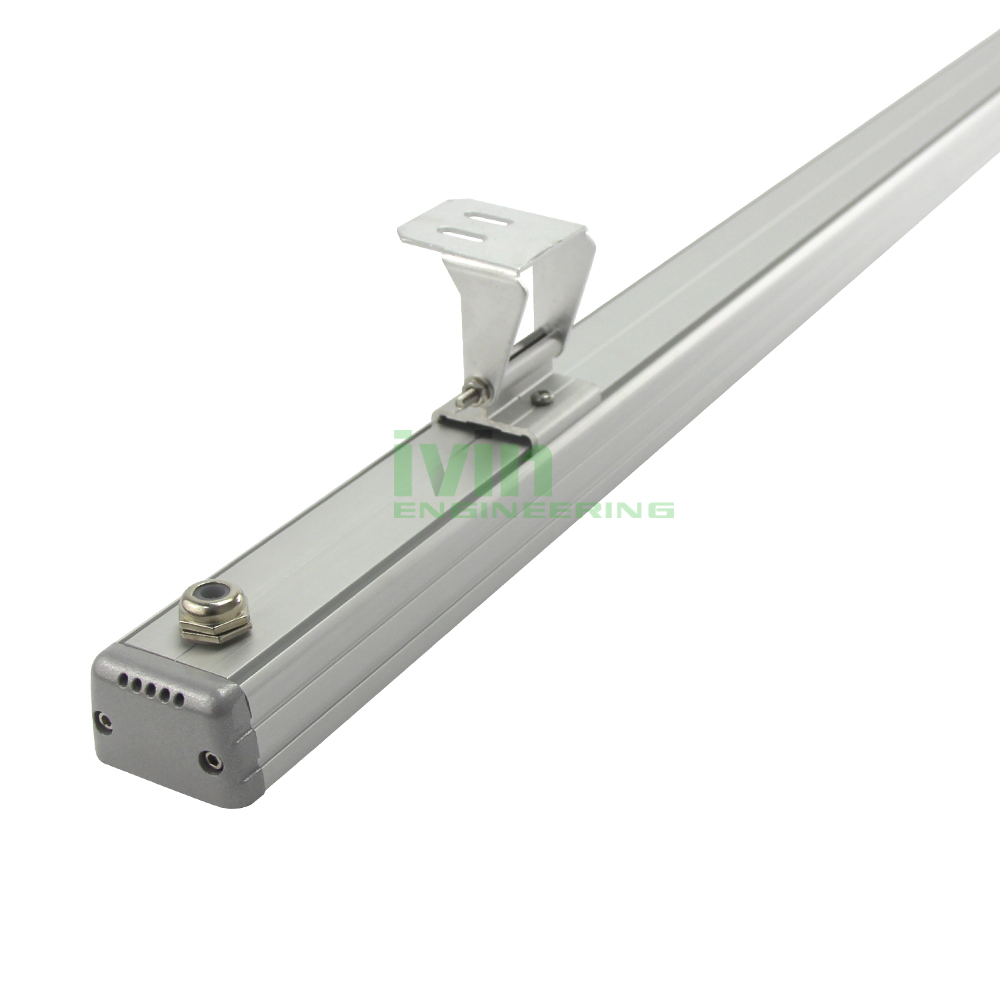

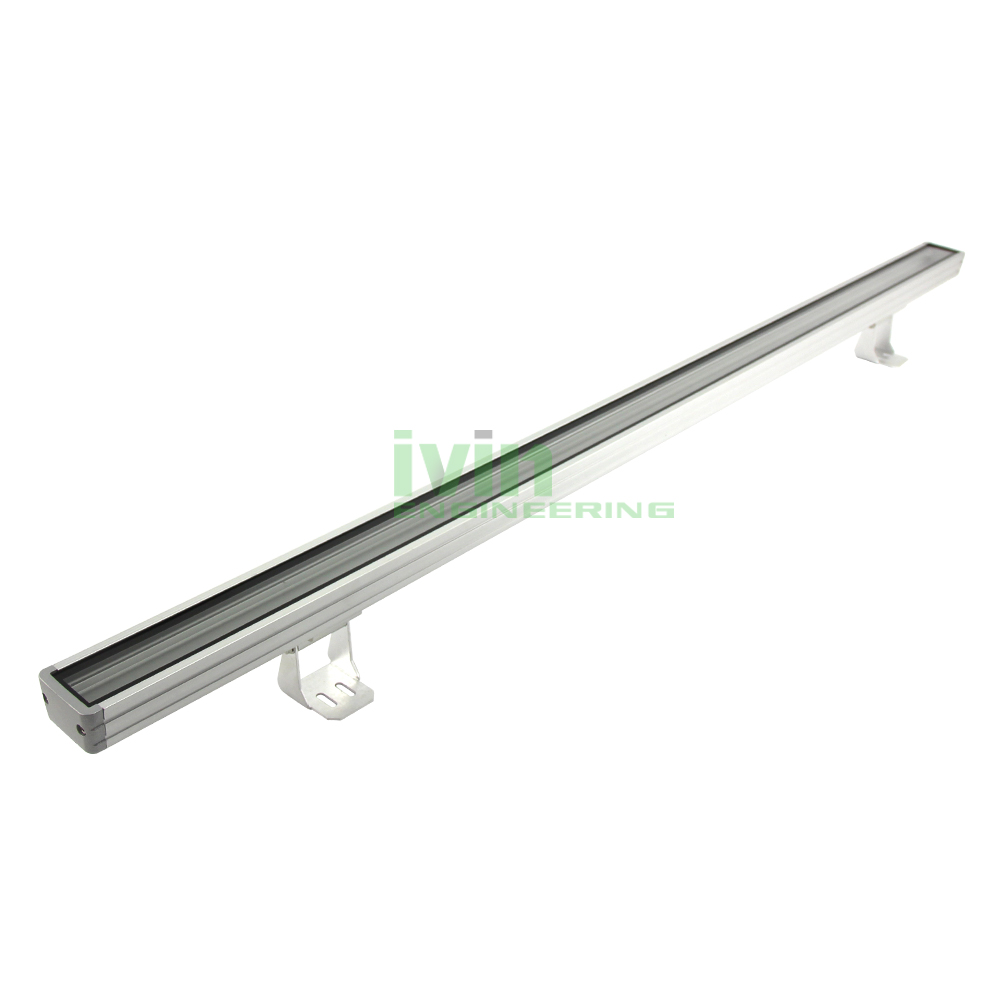

Water flow structure LED washwall light casing, Washwall LED light housing.
发布时间: 2018-06-05 19:41
Water flow structure LED washwall light casing.
AWH-2844
Water flow structure LED washwall light casing, Washwall LED light housing.
|
Model NO.
|
AWH-2844
|
|
Power
|
24W 30W
|
|
Specification
|

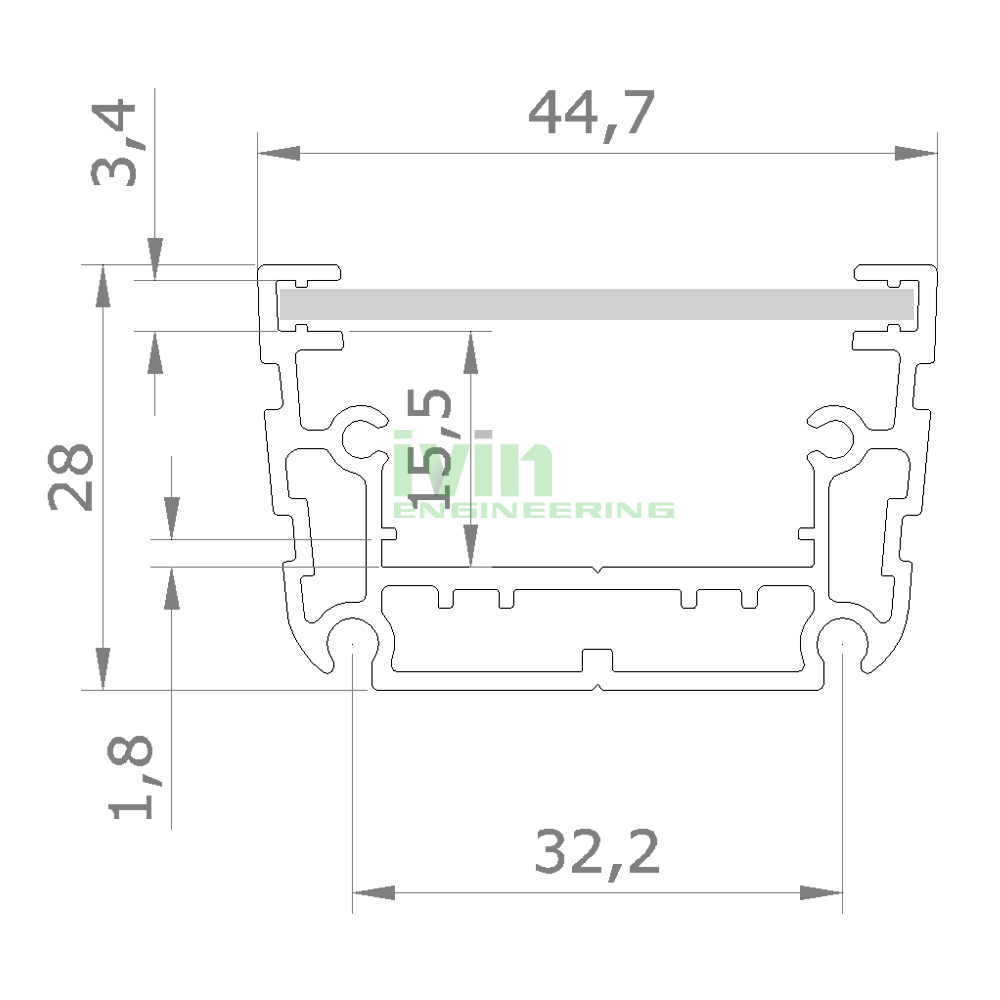

L1000*W44*H28mm ( 980mm Heat sink ）
|
|
PCB size
|
28*1.5mm ( 15.5mm Height for PCB + Lens.)
|
|
External driver
|
|
|
Weight
|
0.91kg
|
|
Components
|

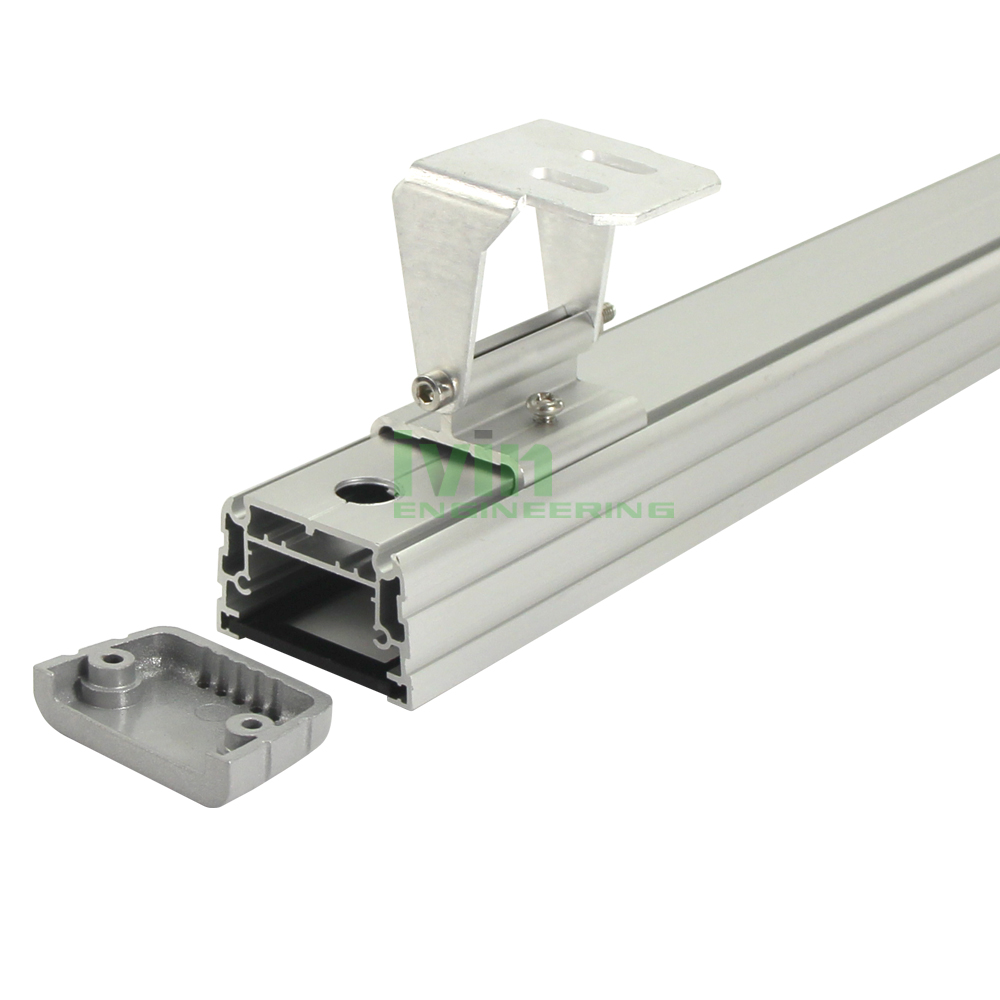

1 aluminium profile， 1 tempered glass cover, 2 end caps, 2 * adjustable mount stand, 1 * PG7 + Screws.
|
PCB and Lens to be sealing well, there have little holes on the end caps, so Water can go through the light body.
