IP65 washwall light casing, washwall led light housing.
    发布时间: 2018-06-05 19:38

IP65 washwall light casing.
AWH-2853

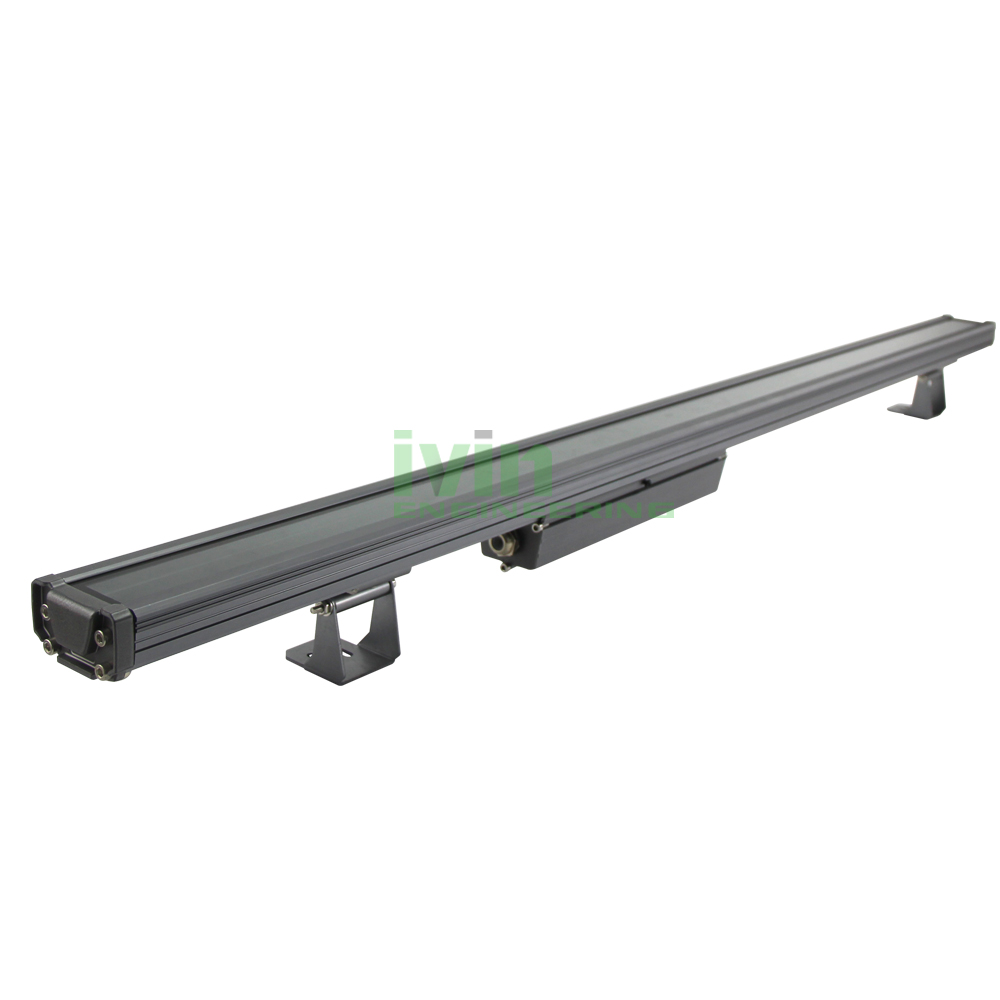

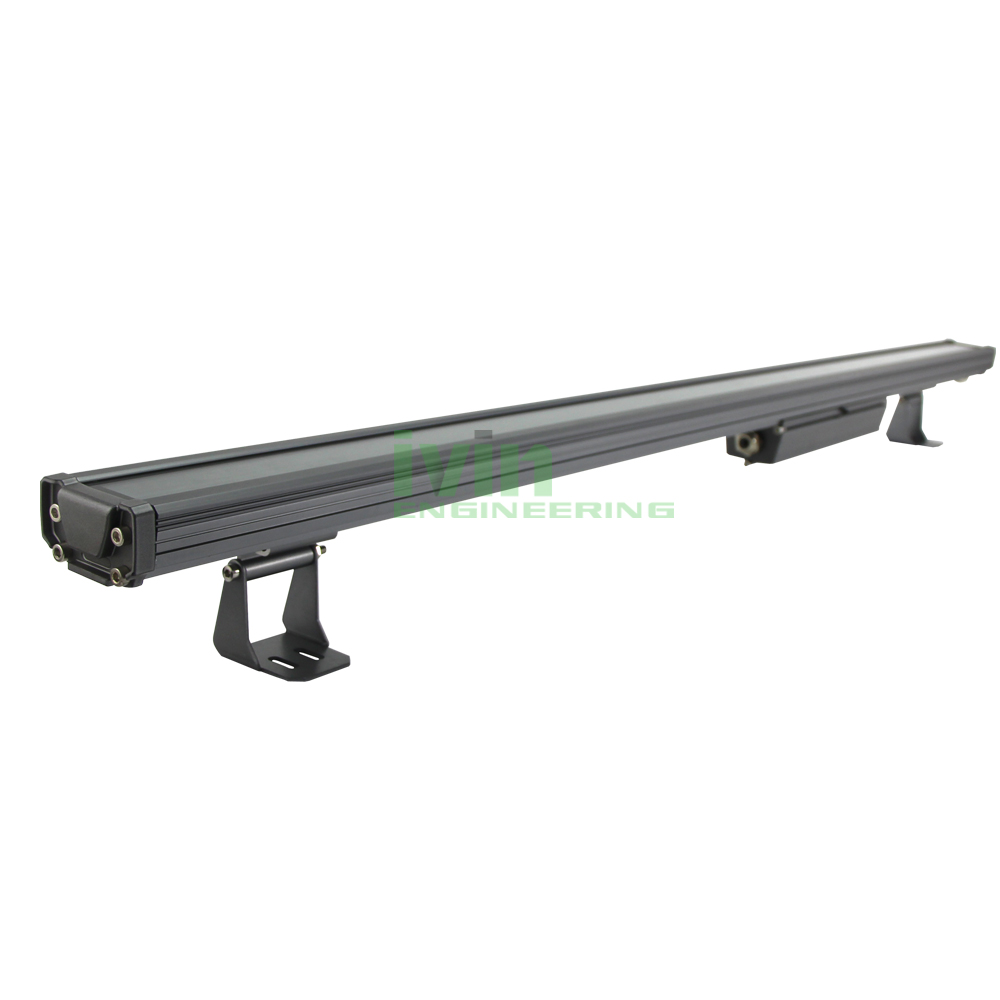

IP65 washwall light casing, washwall led light housing.

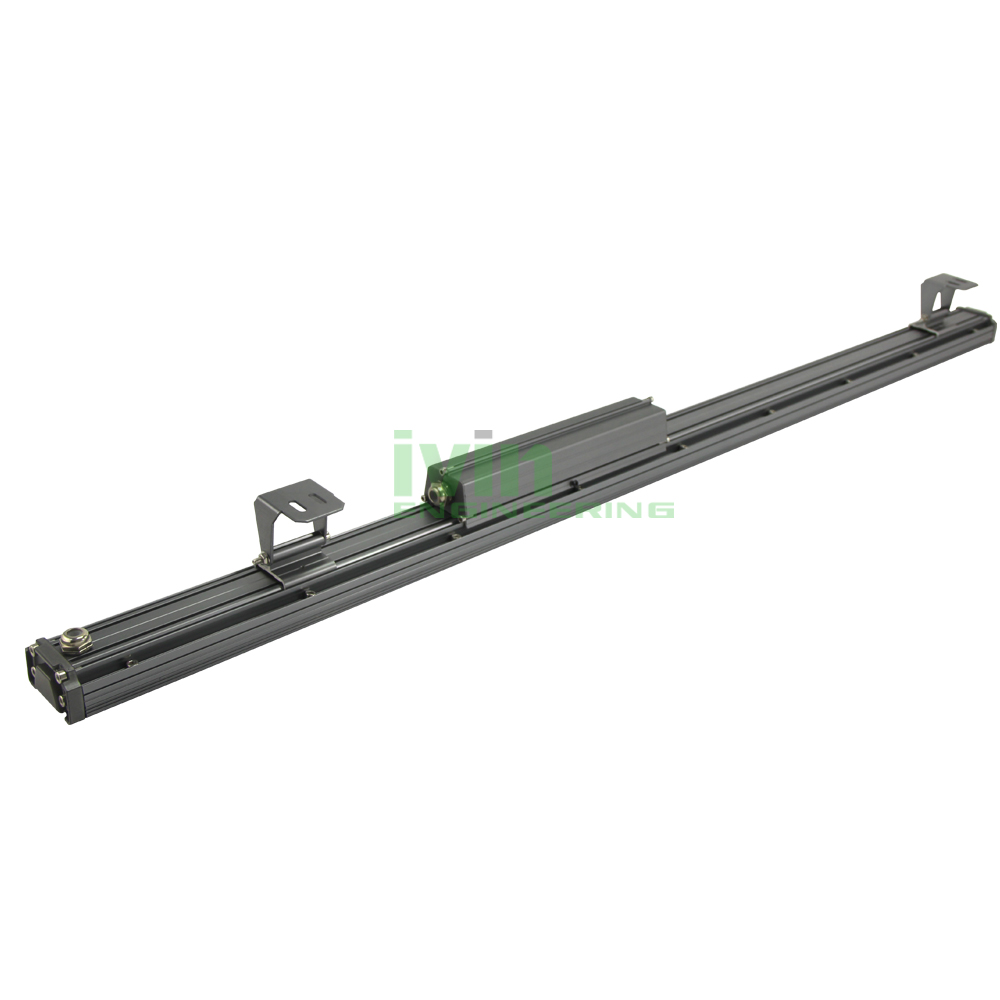

IP65 washwall light casing, washwall led light heat sink housing.



Model NO. AWH-2853
Power 30W 36W

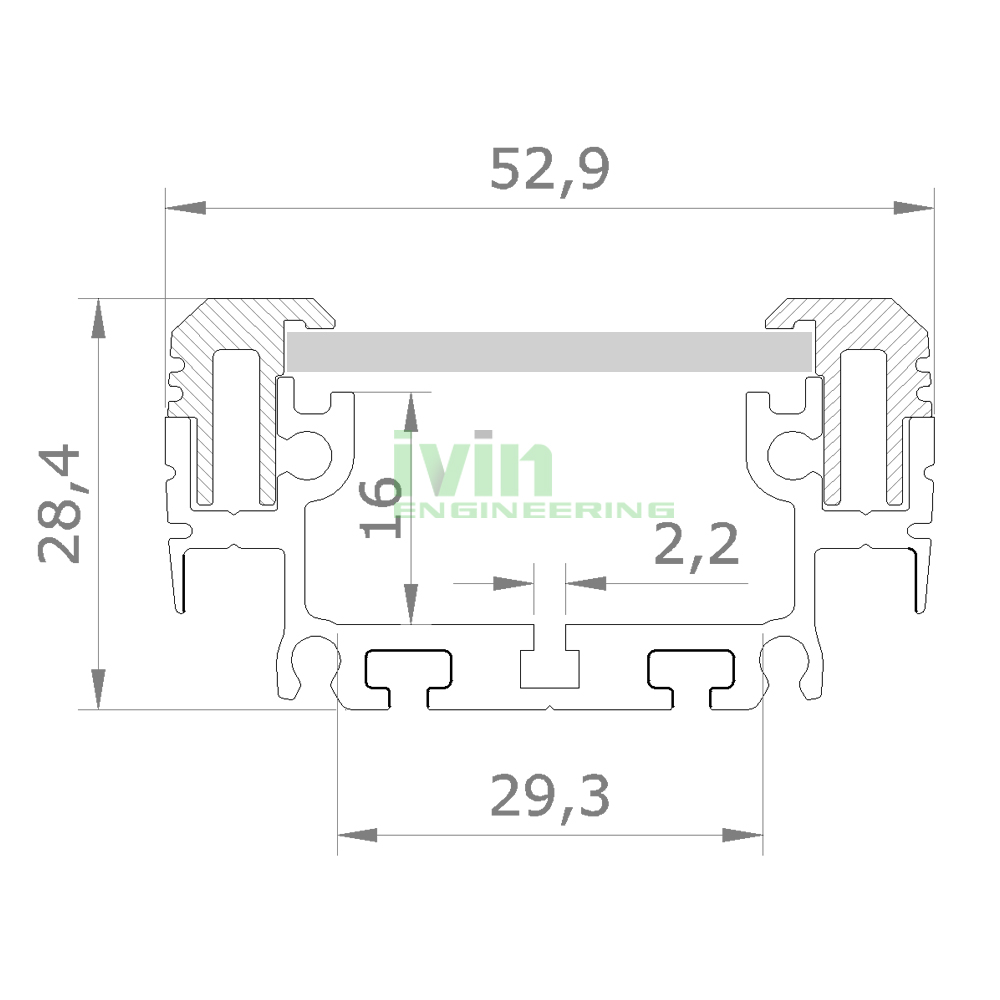

Specification L1000*W53*H28mm　  (　980mm Heat sink ）
PCB size 28mm width 　　( 16.5mm Height for PCB + Lens.)
Driver spacing 32*25mm
Weight 1.66kg


Components:

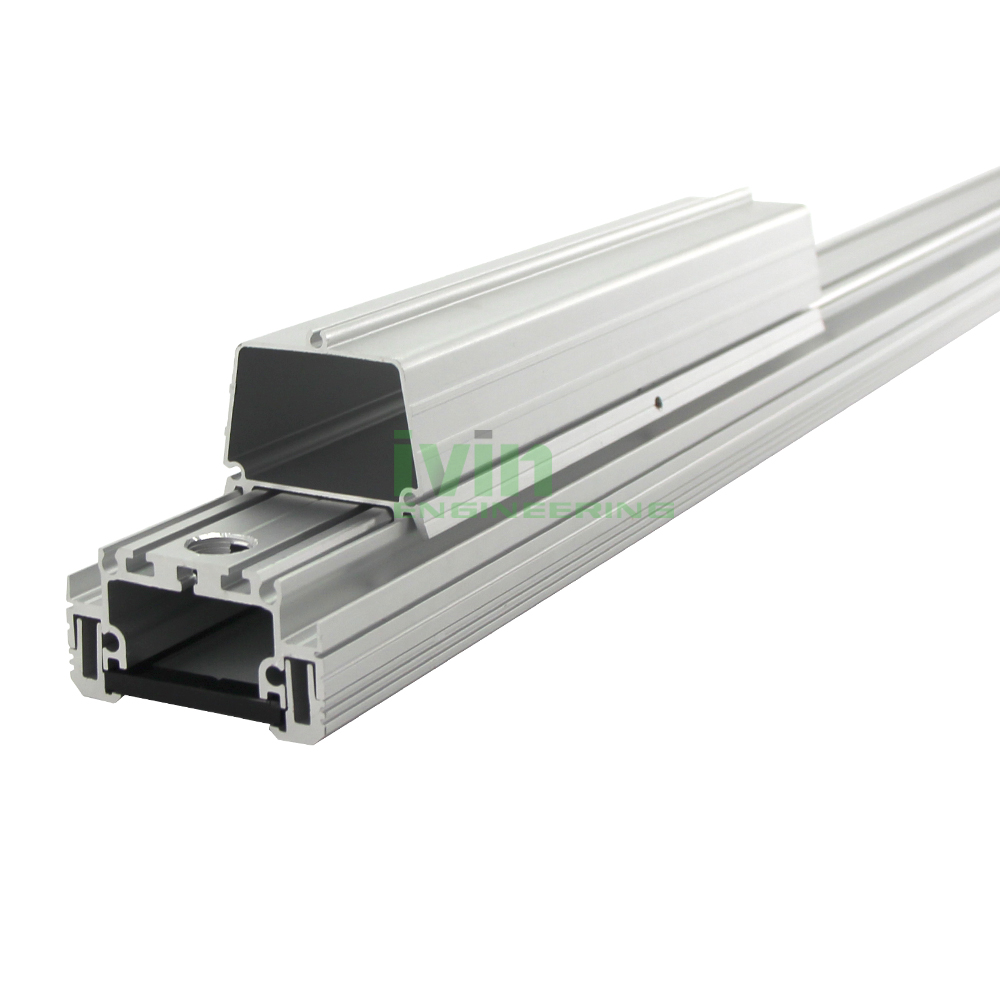

1 aluminium profile + 2 * side press profile + 2M sealing bar,  1 tempered glass cover, 2 end caps,
2 water-proof silicon sealing gasket, 2 * adjustable mount stand, + 1 set 200mm driver box.  3*  PG7 + Screws.
