LED Wash wall light heatsink housing, LED heat sink casing.
发布时间: 2018-06-02 21:18

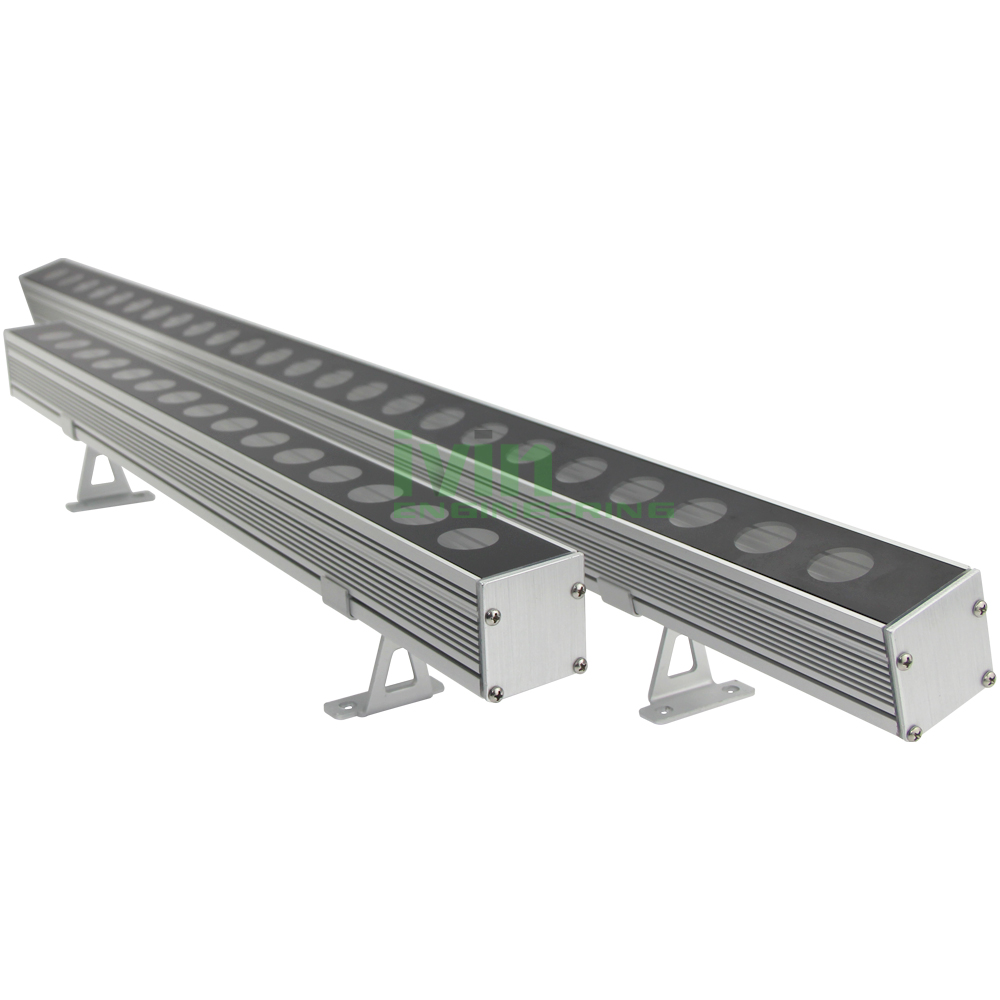

LED Wash wall light heatsink housing.
AWH-4850
LED Wash wall light heatsink housing, LED heat sink casing.
AWH-4850
Article
|
Specification
|

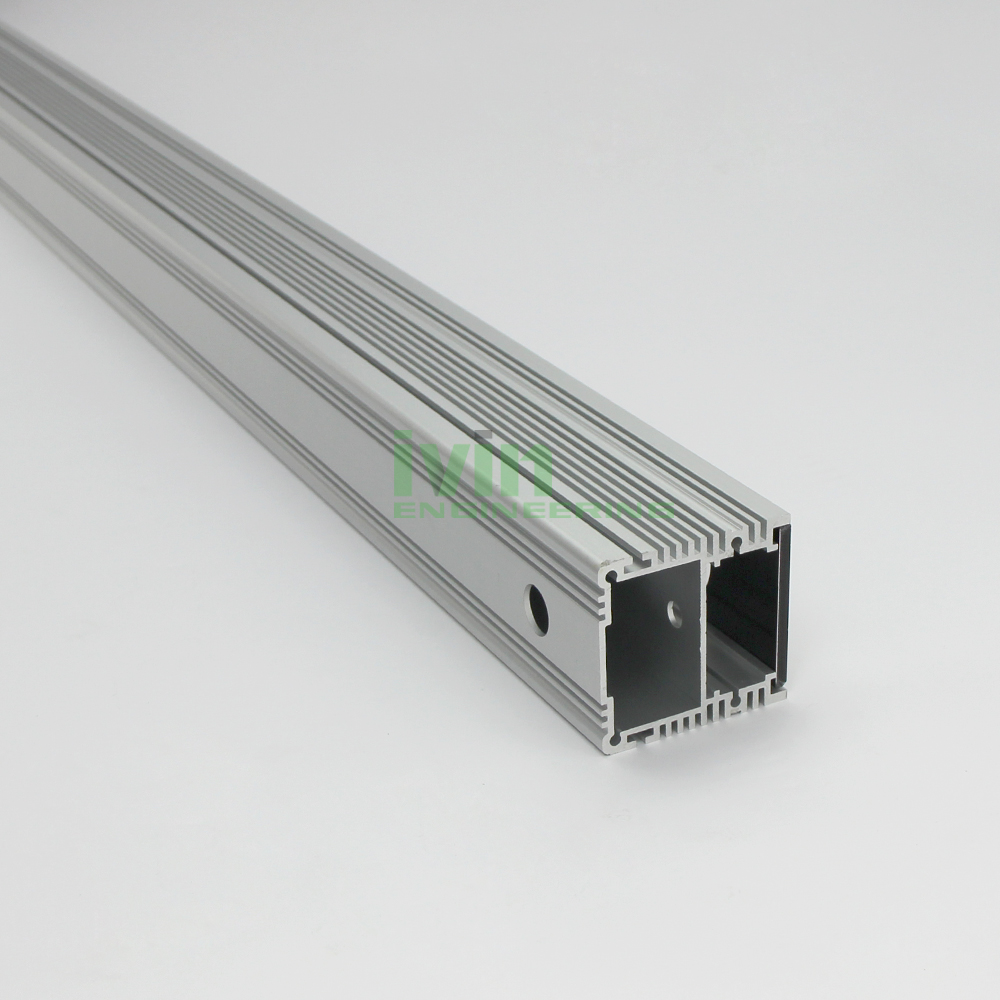

1 * Aluminum profile.
|

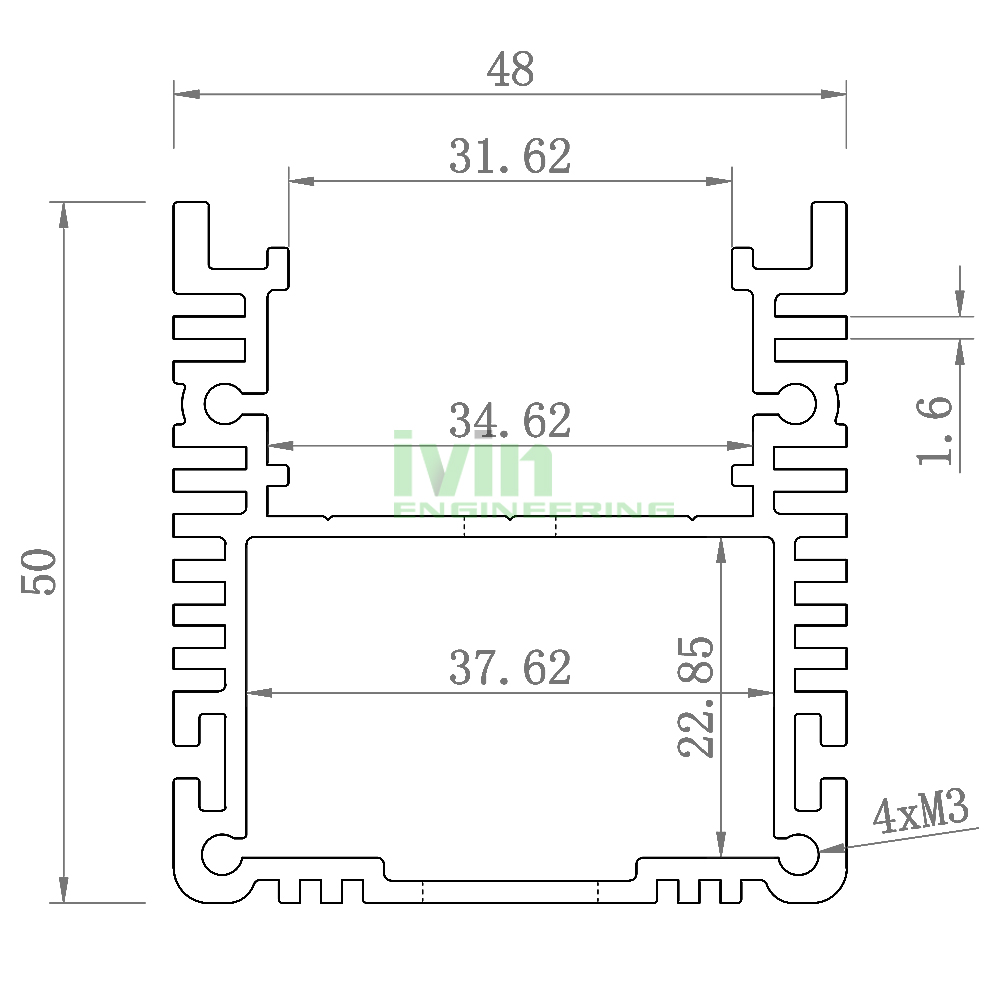

50mm*48mm*Length. 37.5*22.5mm Driver spacing.
|
1 * Tempered glass cover
|
42mm*3mm*Length.
|

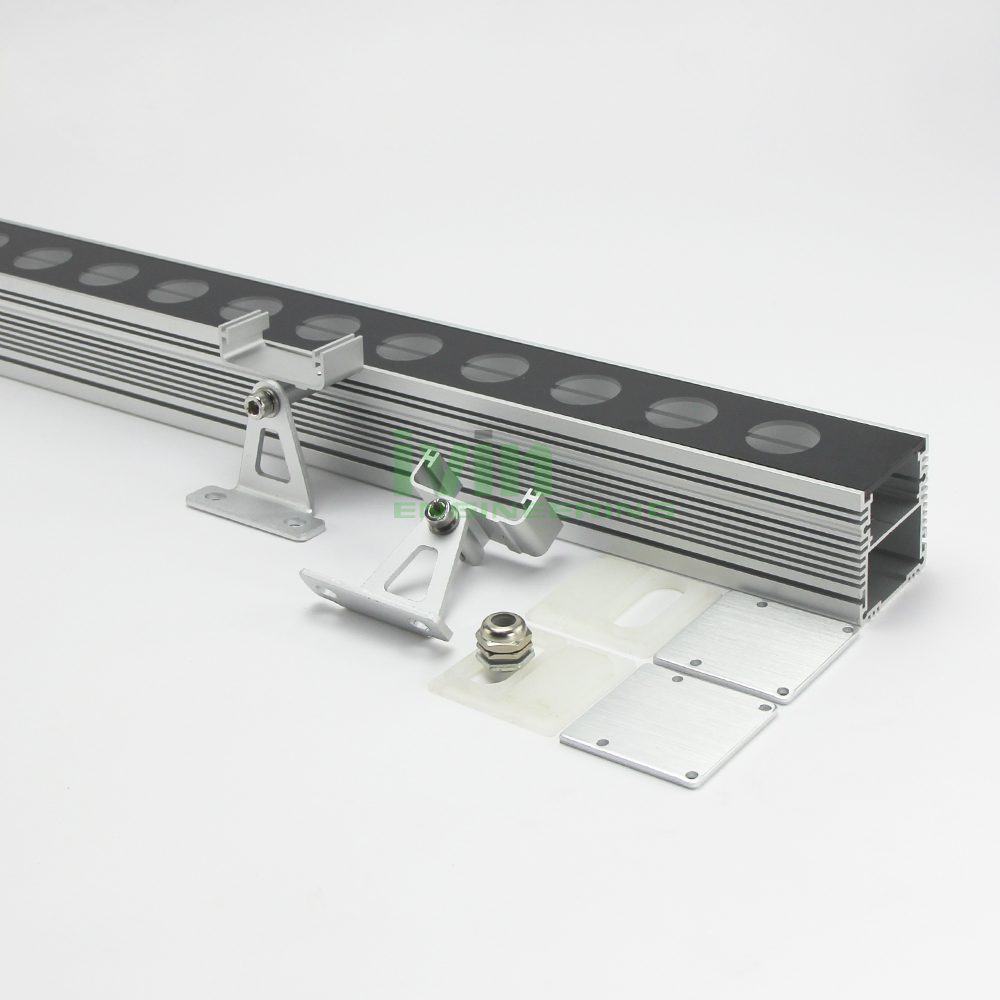

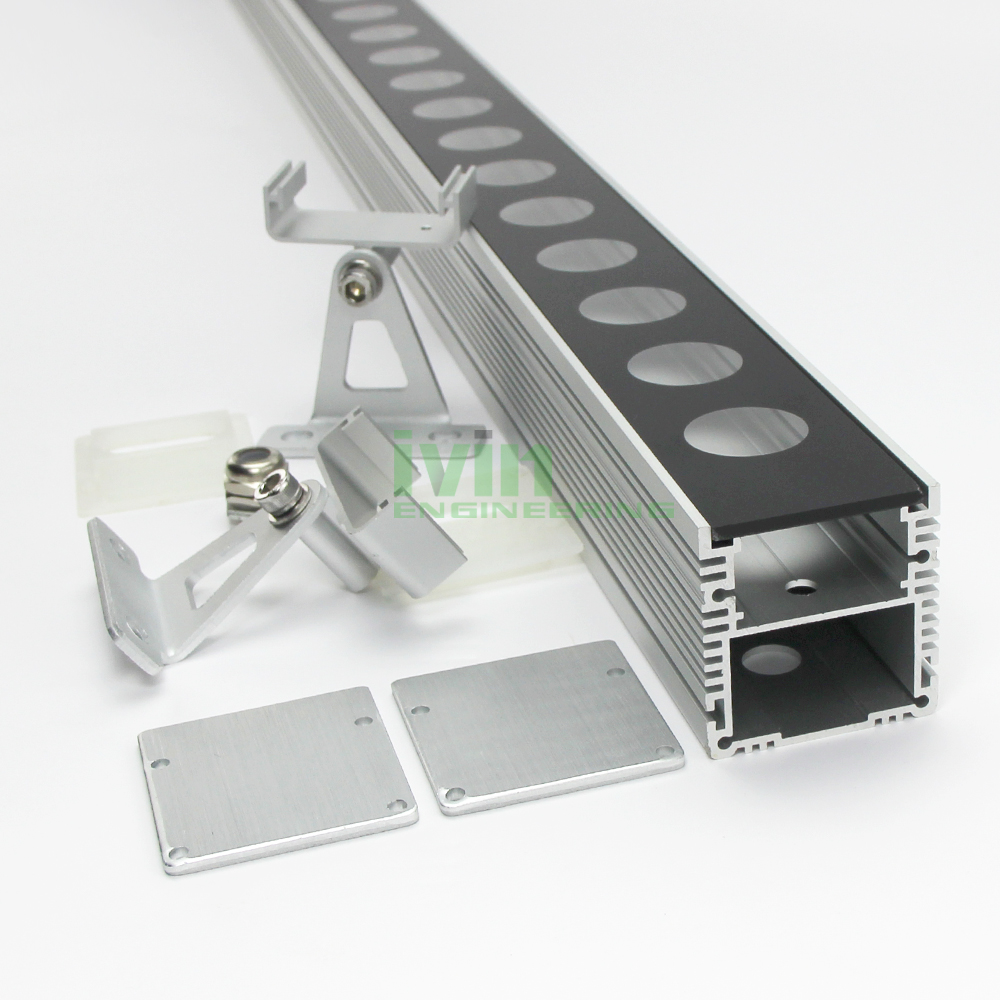

2 * Aluminum end cap
|
Wire drawing + Silver anosize.
|
2 * Silicon sealing gasket
|
IP65 - IP66
|

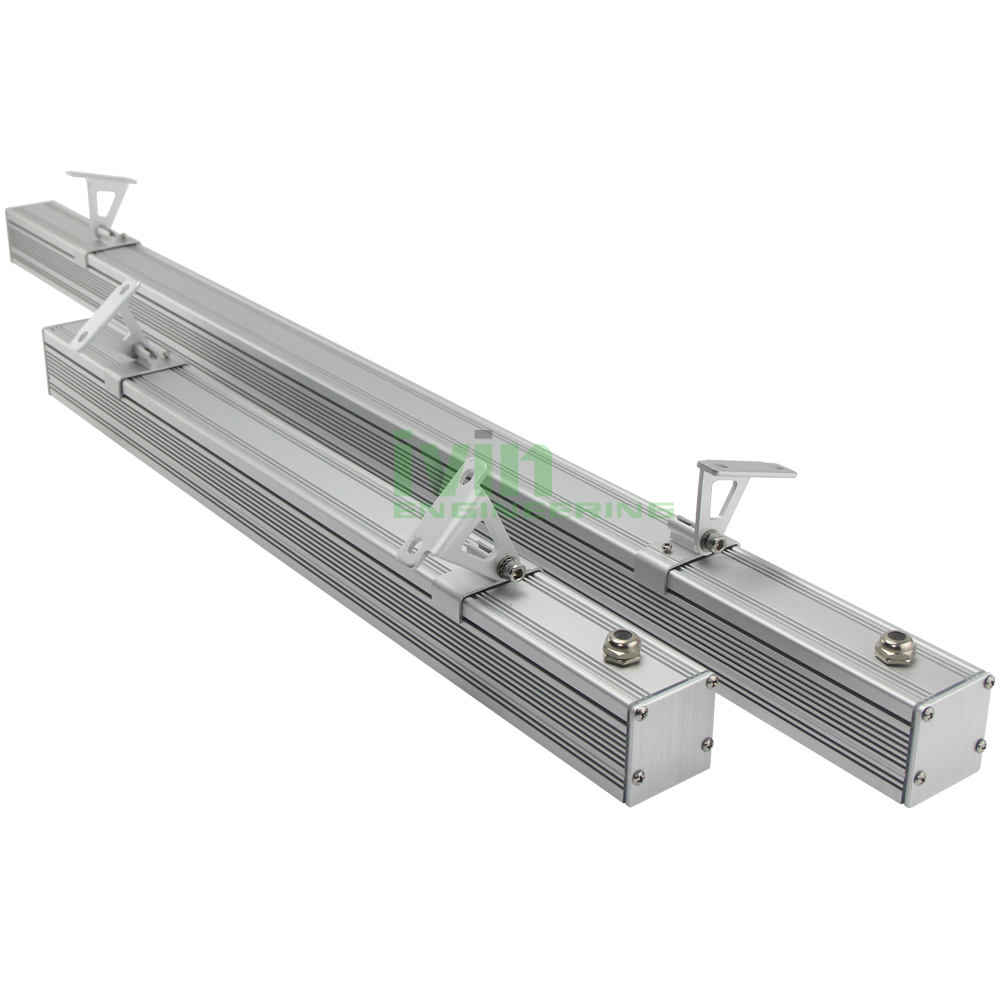

2 * Adjustable mount stand
|
180° angle adjustable, 53m height.
|
Stainless steel screws + 1 PG7.
|
|
Notes:
|
1: MOQ: 20 sets, for 1M standard housings. or 200Pcs MOQ if we have not enought materials in stock.
|
2: Above price on basis of Ex-factory.
|
3: Payment Terms: T/T , 50% Deposit and 50% balance before delivery.
|
4: Customer length be avaliable, MOQ 300M for customers' different length.
|
5: Components are alternative.
|
PCB:
Aluminum base 2mm thickness.
Lumens LEDs soldering pads
Thermal conductivity: 1.2W/m.k
Copper layer: 1oz
0.6M 30W 3C5B 560*25*2mm
|
1.0M 48W 3C8B 960*25*2mm
|
1.2M 60W 3C10B 1160*25*2mm
|
