IP66 LED washwall ligh heat sink casing, 36W LED washwall light housing.
    发布时间: 2018-06-02 17:45

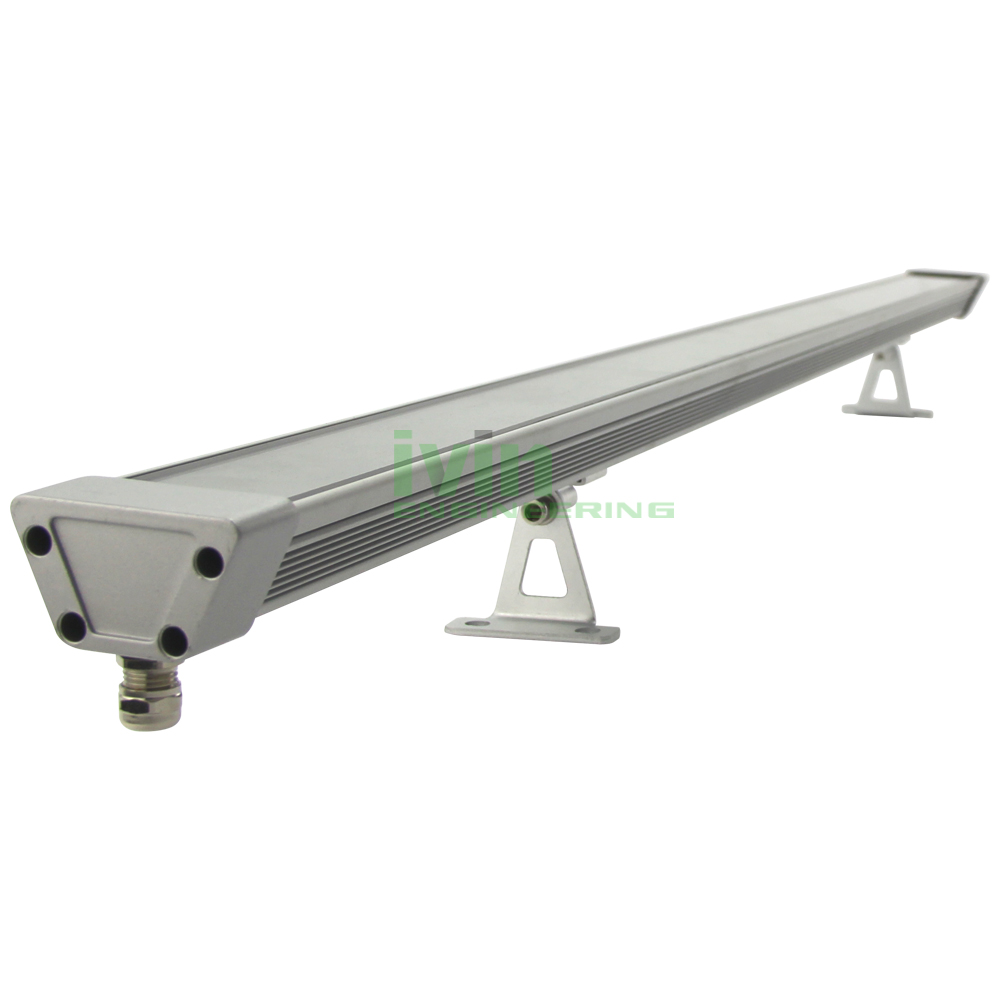

IP66 LED washwall ligh heat sink casing.
AWH-5530

IP66 LED washwall ligh heat sink casing, 36W LED washwall light housing.

IP65 IP66 LED washwall ligh housing, IP65 Wash wall LED light casing, 36W Wash wall LED light housing.






Components List

AWH-5530 Wash wall Light.

1 * Aluminum profile.
Fit 22mm width strips / PCB.
Al6063 silver anodize finish.


1 * Tempered Glass .
L 1000mm * W 47mm * T 4mm
93% light  transmittance.

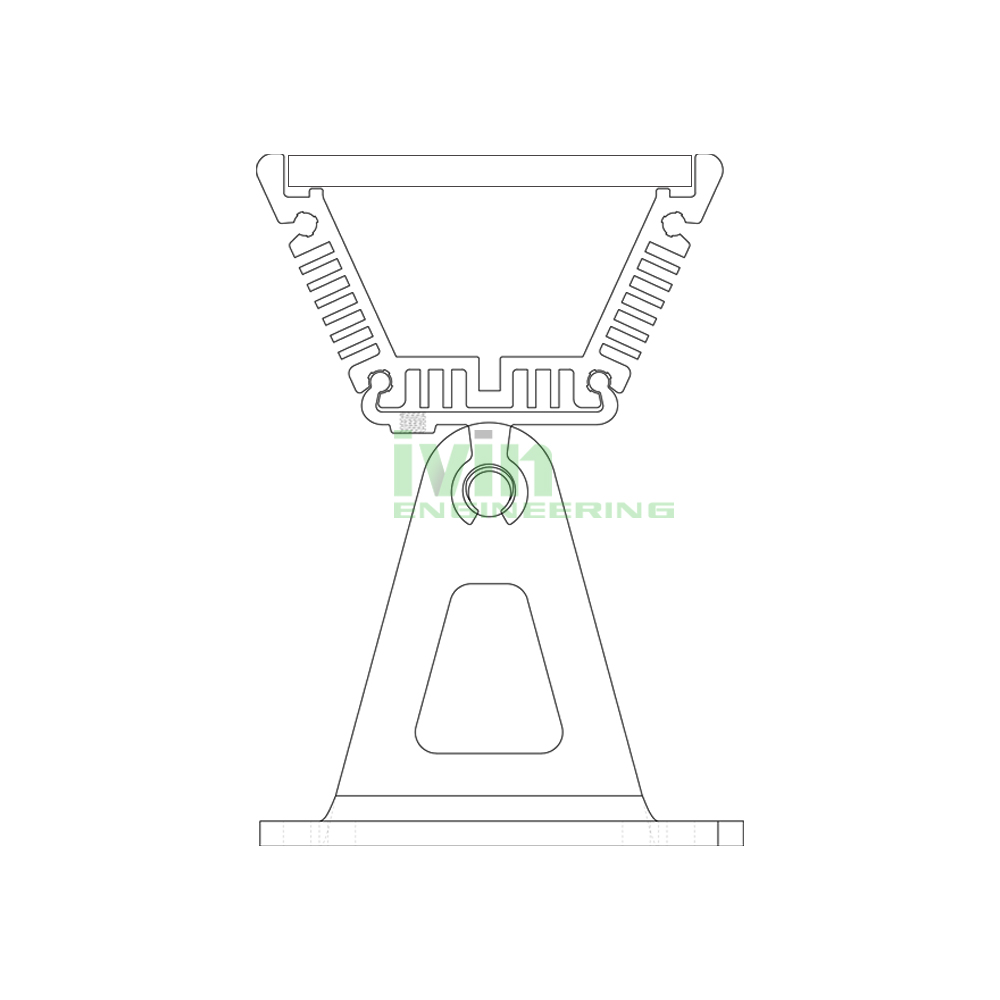

2 * Aluminum mount stand.
50mm height.

2 * Aluminum dicasting end cap.
ADC12 - powder coating finish.


2 *  Silicon sealing gasket.

1 * PG7 + screws.

L1040*W59*H83mm

1.4kg

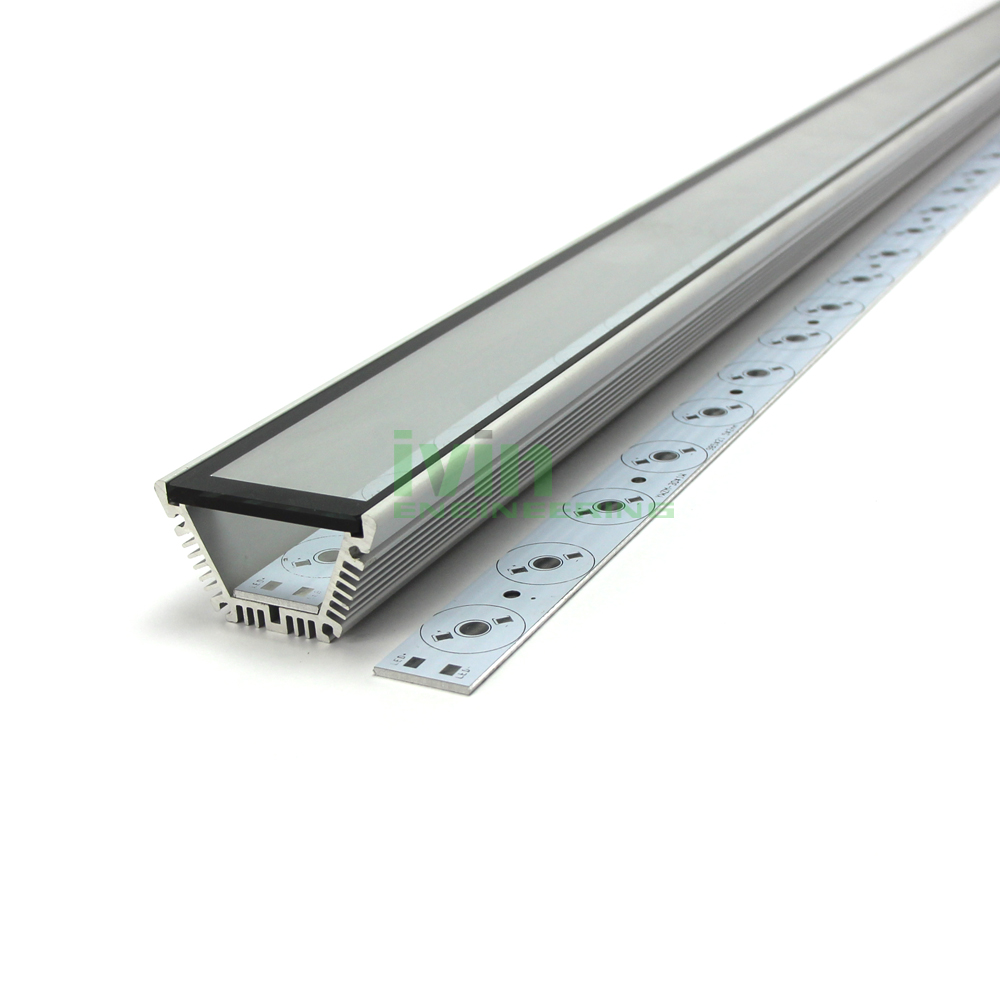

985mm PCB.
30 LEDs * 1W-1.5W-2W high power Lumens LEDs,
series Link.
