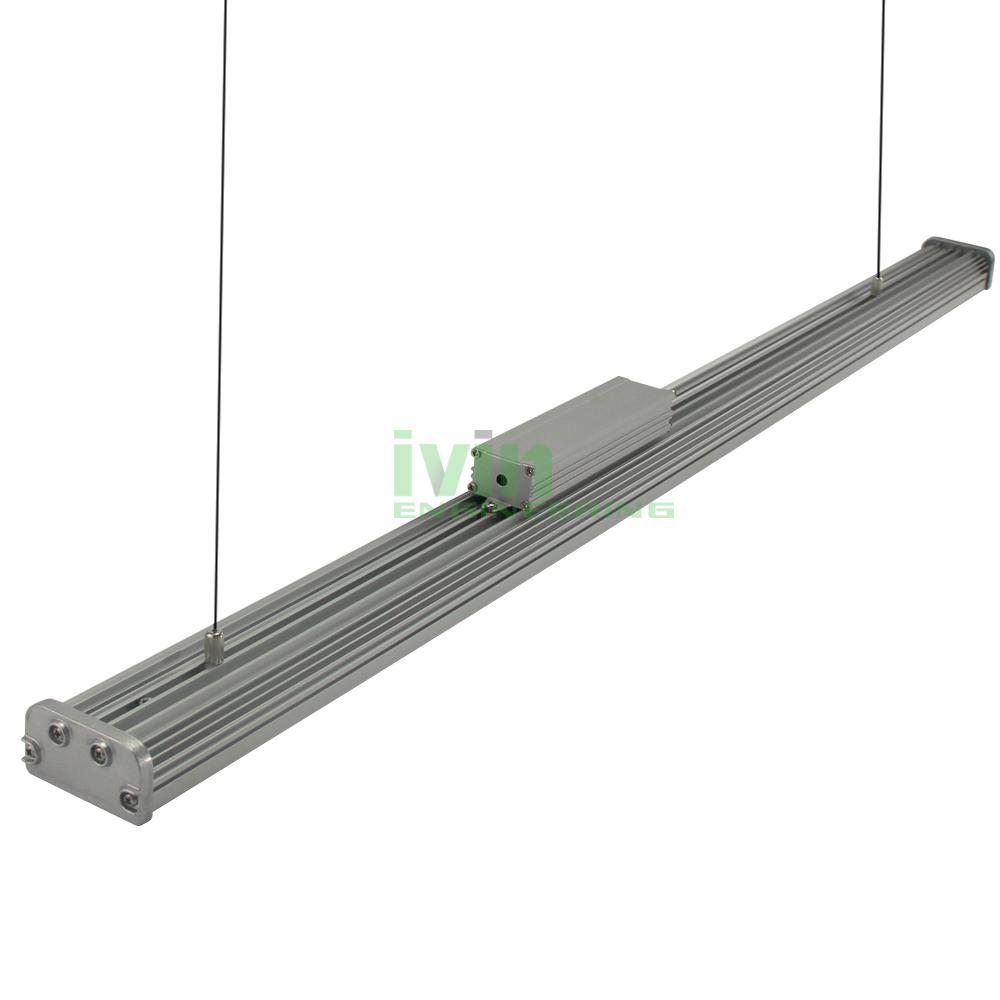

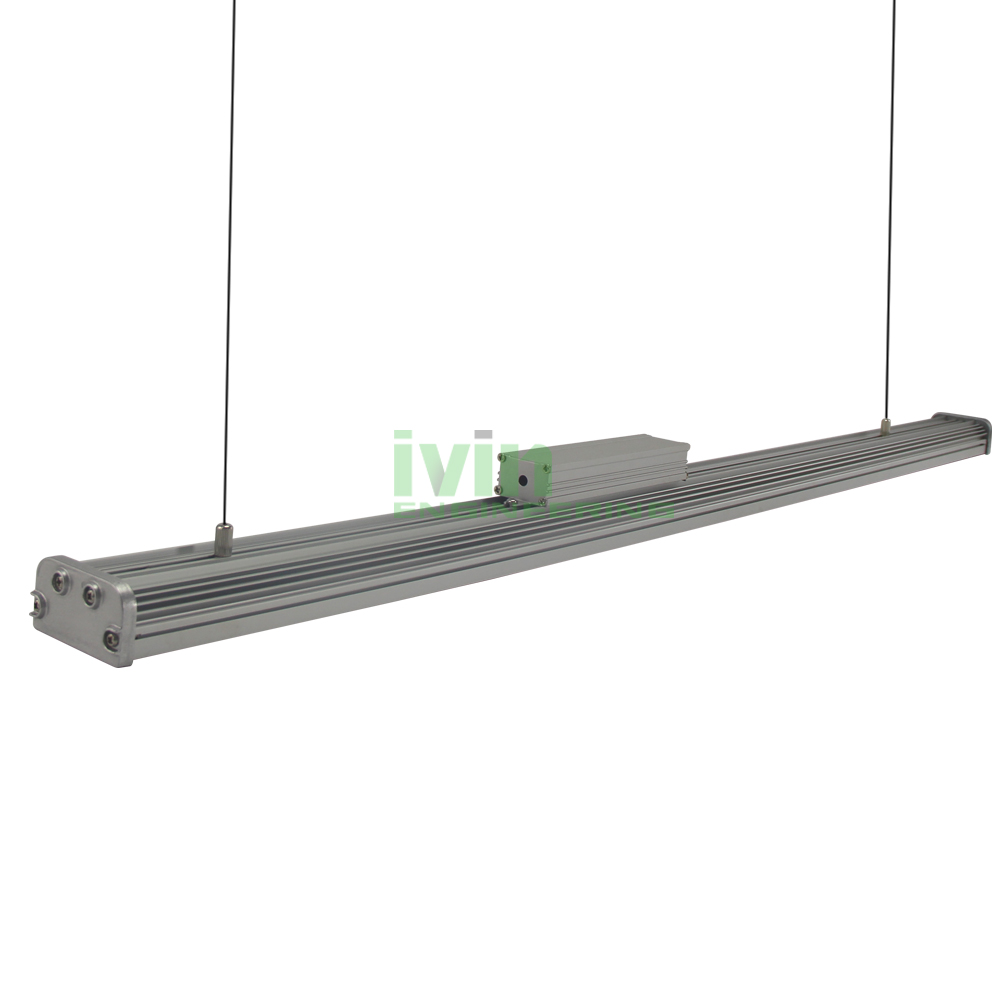

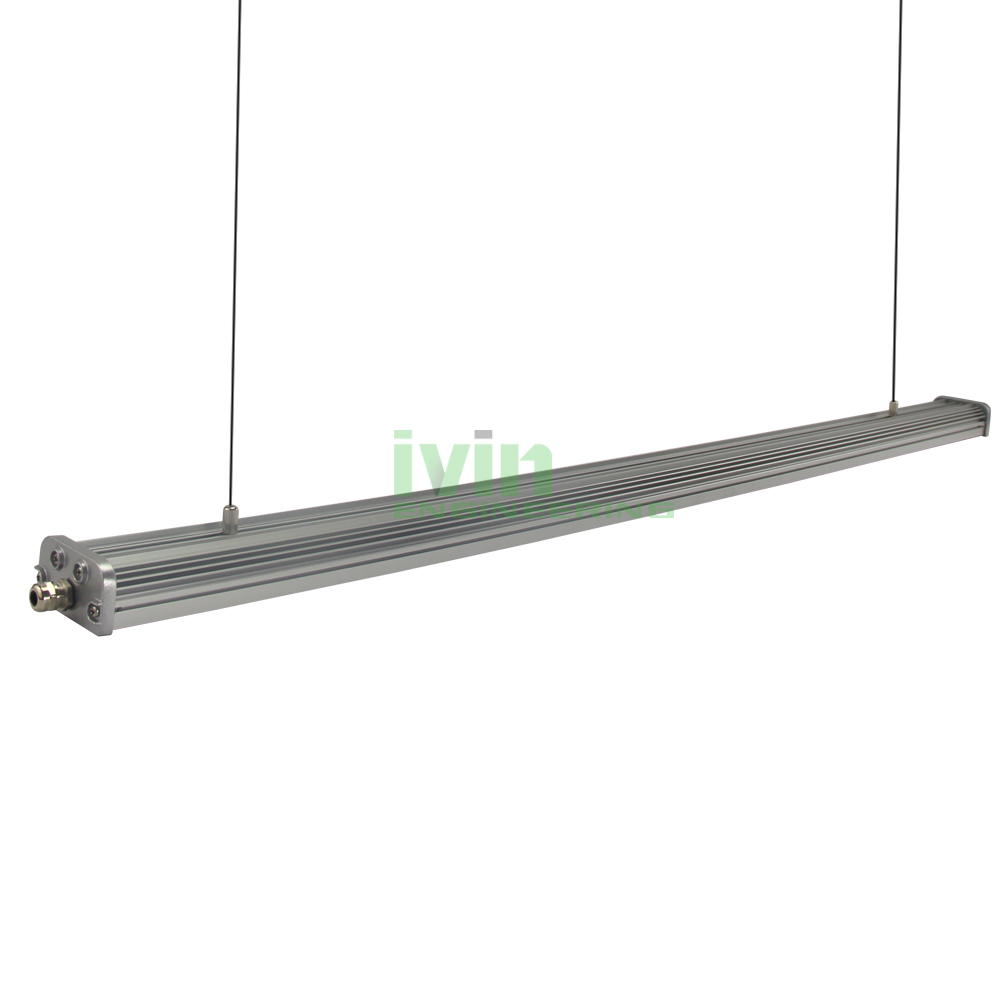

LED grow light pendant housing,LED low bay grow light housing , LED pendant grow light housing set.
hydroponic LED gorw light heatsink fixture.

AWH-5730

LEDs Power consuption		Light Specification	Deiver Spacing	Weight:
Lumens LEDs 36W	CREE 35*35 LEDs 60W	L1000*W57*H30mm	External Driver	1.3 KG

Application:

LED grow light, LED agricutral light, LED plant growth light, LED green house light. LED farming light,Hydroponic garden light, LED vertical farm light, LED green house planting light, IP66 LED factory low bay light, LED pendant light, LED highbay lihgt.

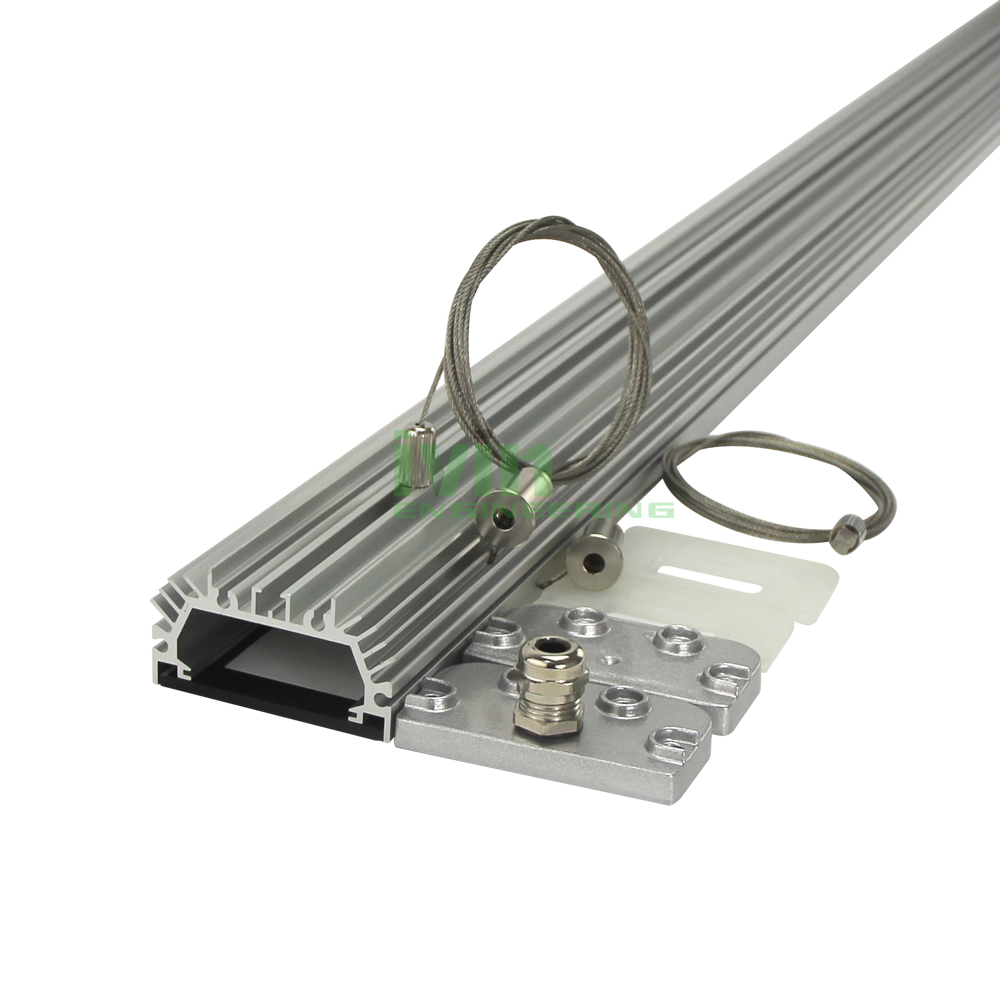

LED grow light fixture Components List:

1 * Aluminum heatsink, Silver anodized.
1 * 3mm tempered glass, sides and edges to be black silk-print mask.
     2 sides contact heatsink to be sealing by glass&metal glue.
2 * silicon sealing gasket,to get IP65- IP66.
2 * Aluminum diecasting end cap, silver color painting.
     1 with M12 PG7 hole on , 1 closed.                                                                                                                                                                                                                                                                                                       1 * PG7 M12*1.25 +  full set screws.
2 * Pendant kit. 1.5M. can hold 15KG weight.
Other notes:
PCB: Below 36mm width.
Driver can be installed at the back.
PG7 install holes can make machining on the back of heatsink too.
Glass cover can be replaced by PMMA cover too.


Below other components:

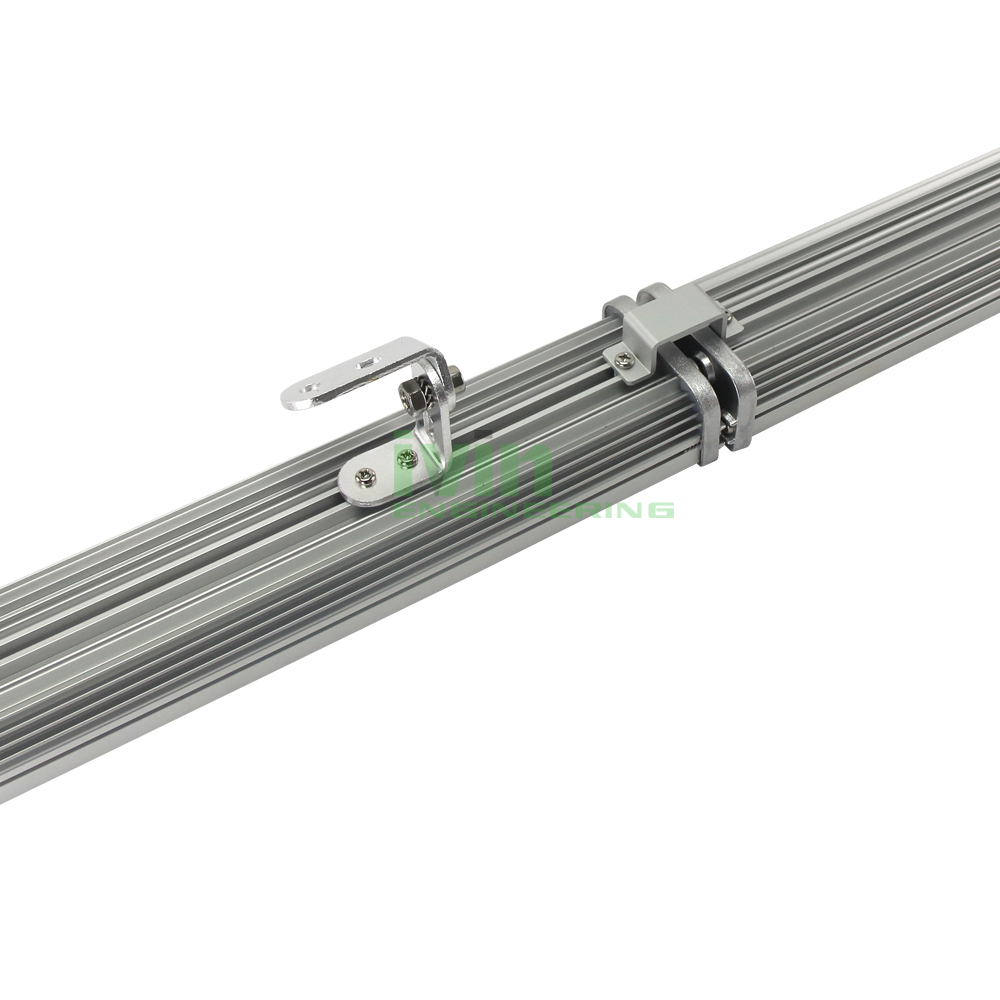

Adjustable install bracket - normally used on washwall light style.
Aluminum Connector part - to get series link of 2 or more light bars.


Tempreed glass or PMMA cover for choose.
