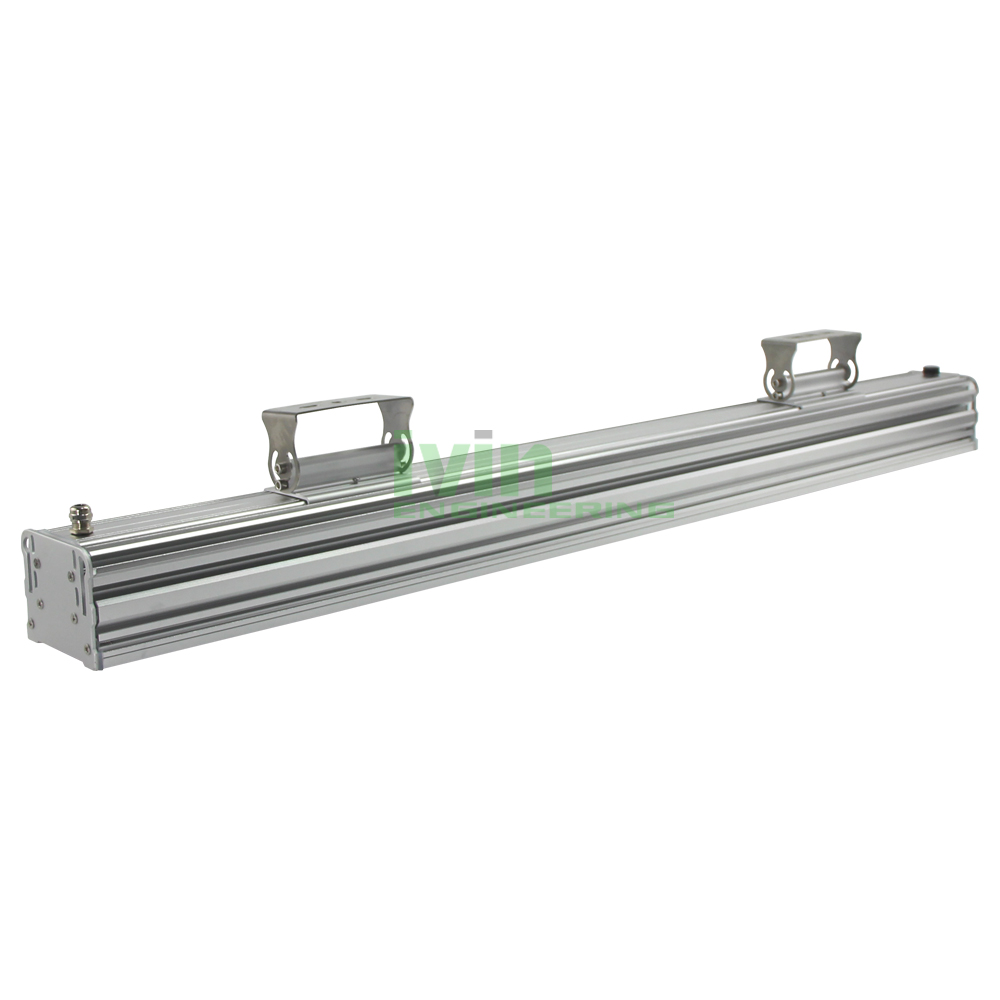

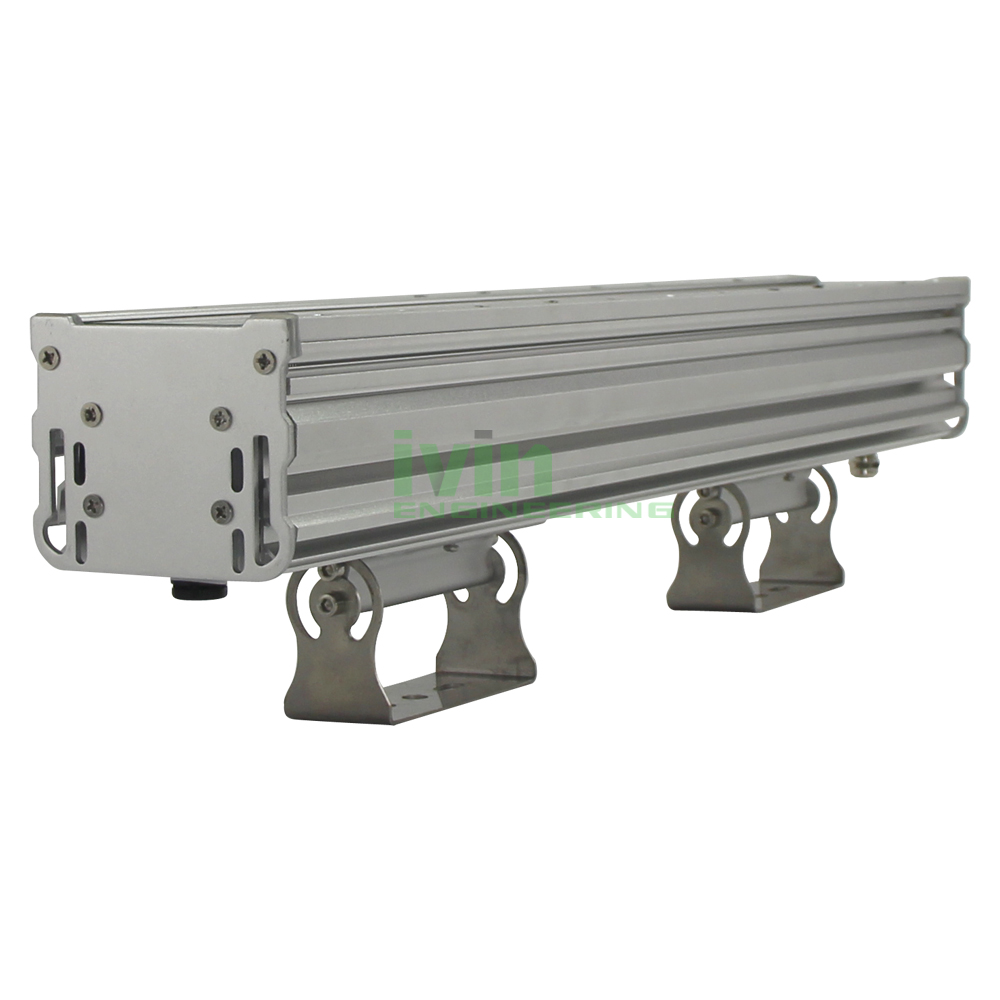

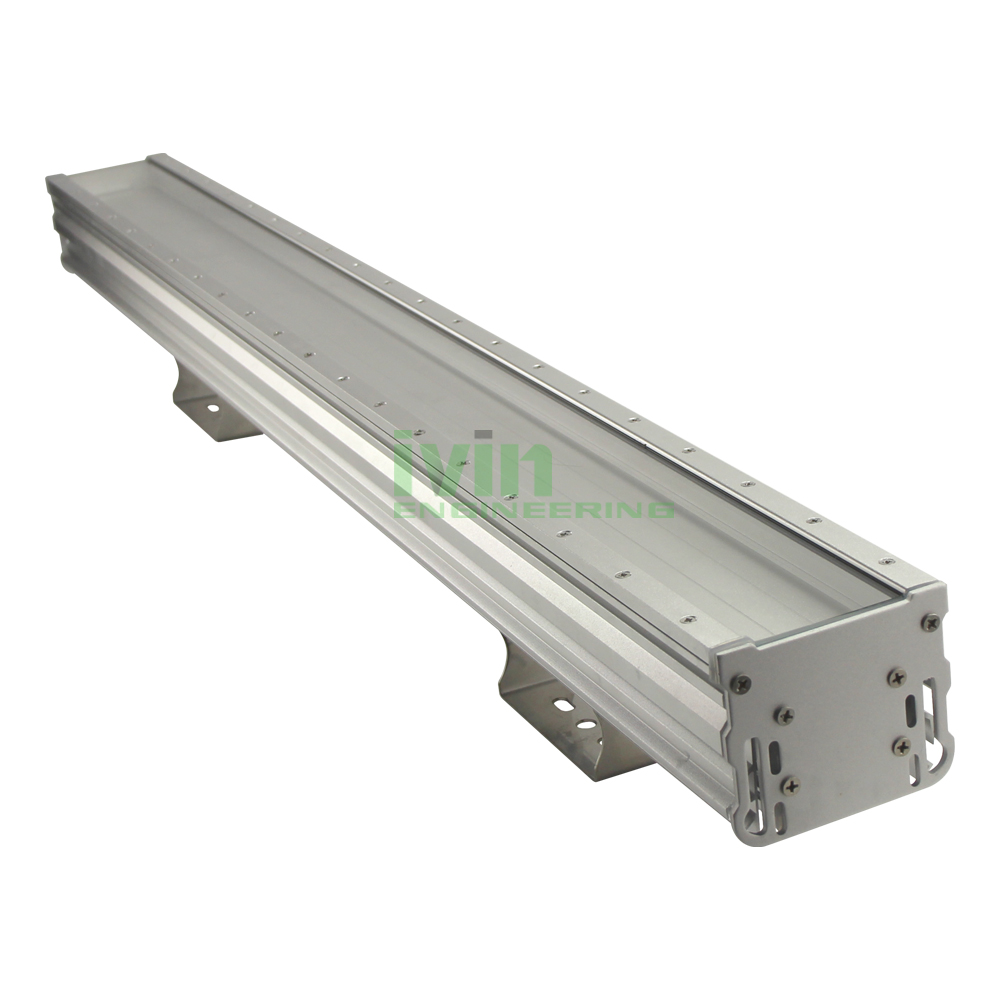

100W high power  LED washwall light fixture, LED high power wall washer light housing IP66.


100W high power LED wall washer light housing components details:

Components	Details
Heat sink:  76*90mm  * Different cut Lenght.  With 37*44mm*Lenght  inside driver spacing.	100W-150W Power / M.  Fits 66mm width * 2mm thickness PCB. Or less size.
Tempered glass: 71.5*4mm* Lenght	92% light transmittance.
Side pressing profiles - 2 Pcs.	With countersunk holes machining on.
Side  silicon sealing bar - 2 Pcs	Pressed on by side pressing profiles. Screws fixed tightly .
End cap - 2 Pcs.	Al1050 material - Punch + Anodize.
End silicon sealing gasket - 2 Pcs.	IP66 by sealing the 2 sides and ends well.
Mount stand - 2 Pieces	180° angel adjustabel,  60mm height.
1 PG7 + 1 Breathable valve + All screws.

1200mm housing set .    120W   ( 5.58kg )
Size:1210*90*135mm
 Weight: 5.66kg
1200mm heatsink + 1200mm tempered glass  + 2* 1200mm side pressing profile + 2 * 2500mm  silicon sealing bar + 2 end caps + 2 end seilocn sealing gadket + 2 mount stand.
+ 1 PG7 + 1 Breathable valve + All screws.
