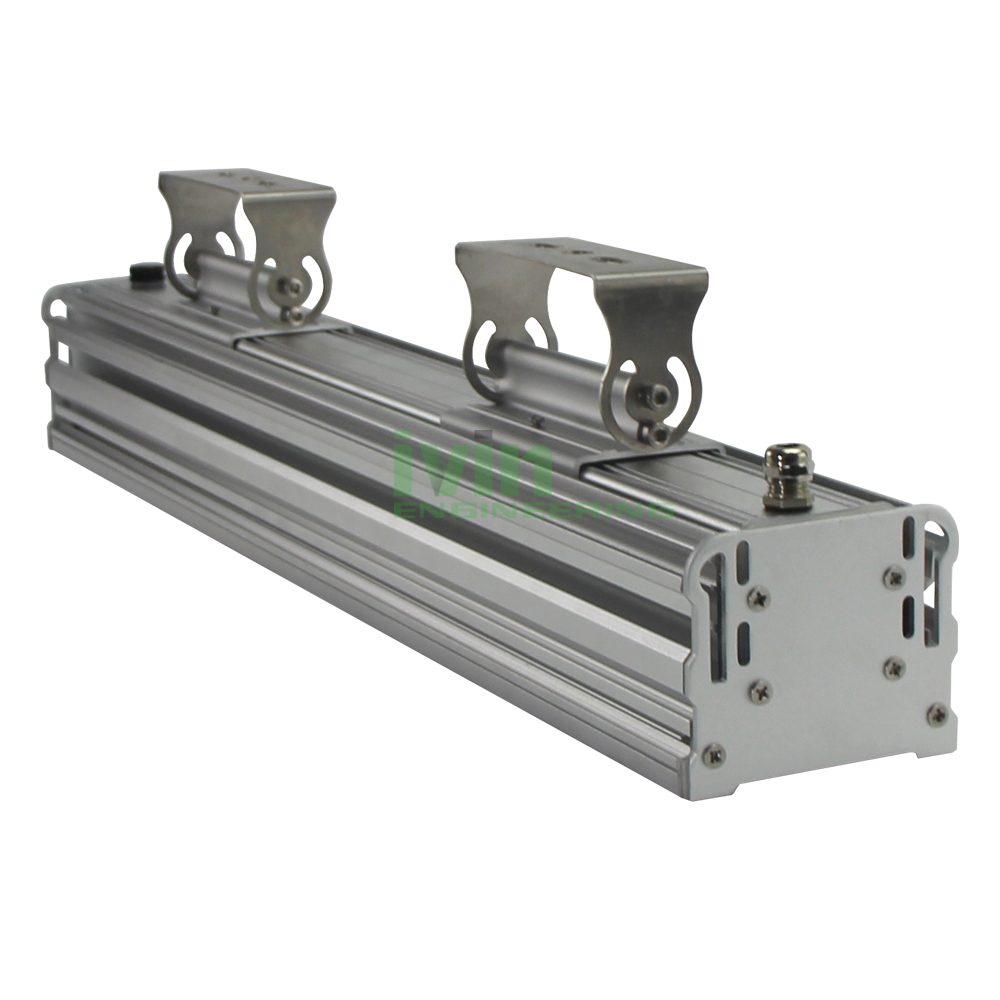

60W LED wall washwer light casing, IP66 wall washer light enclosure.
    发布时间: 2018-10-08 11:55

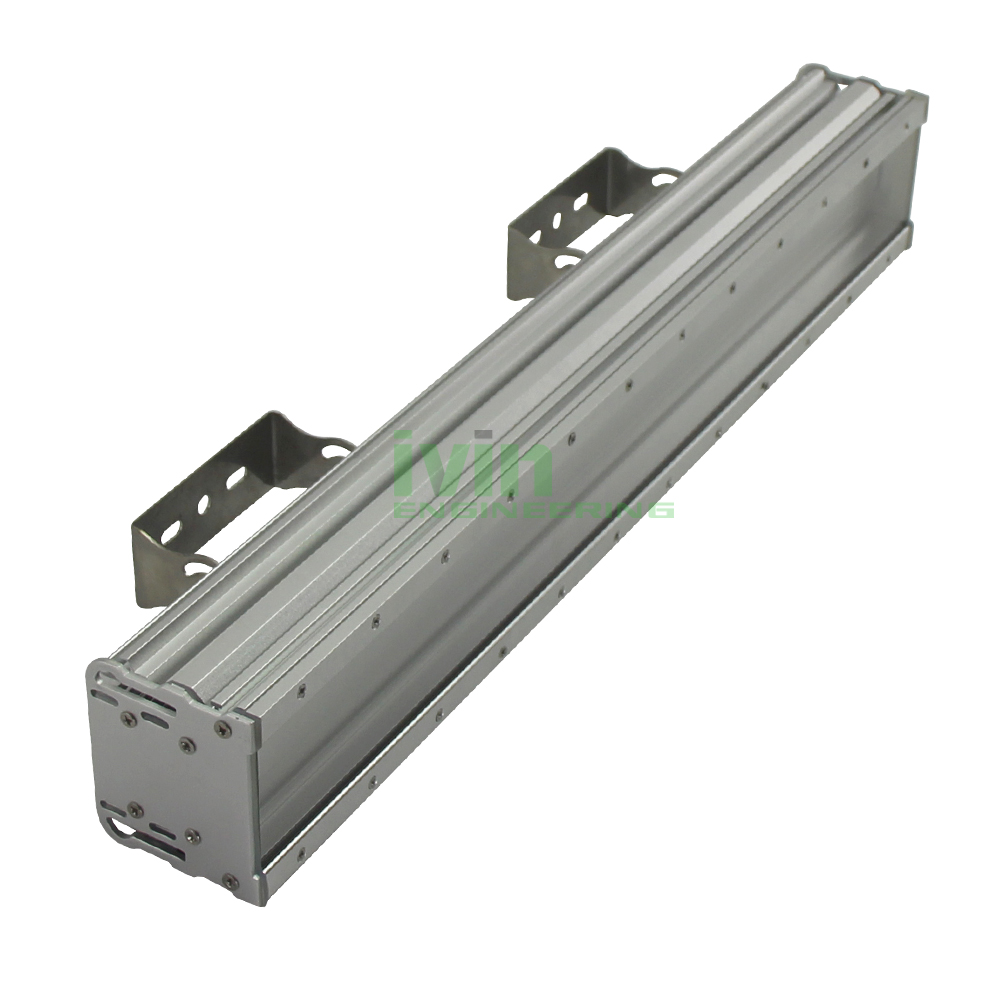

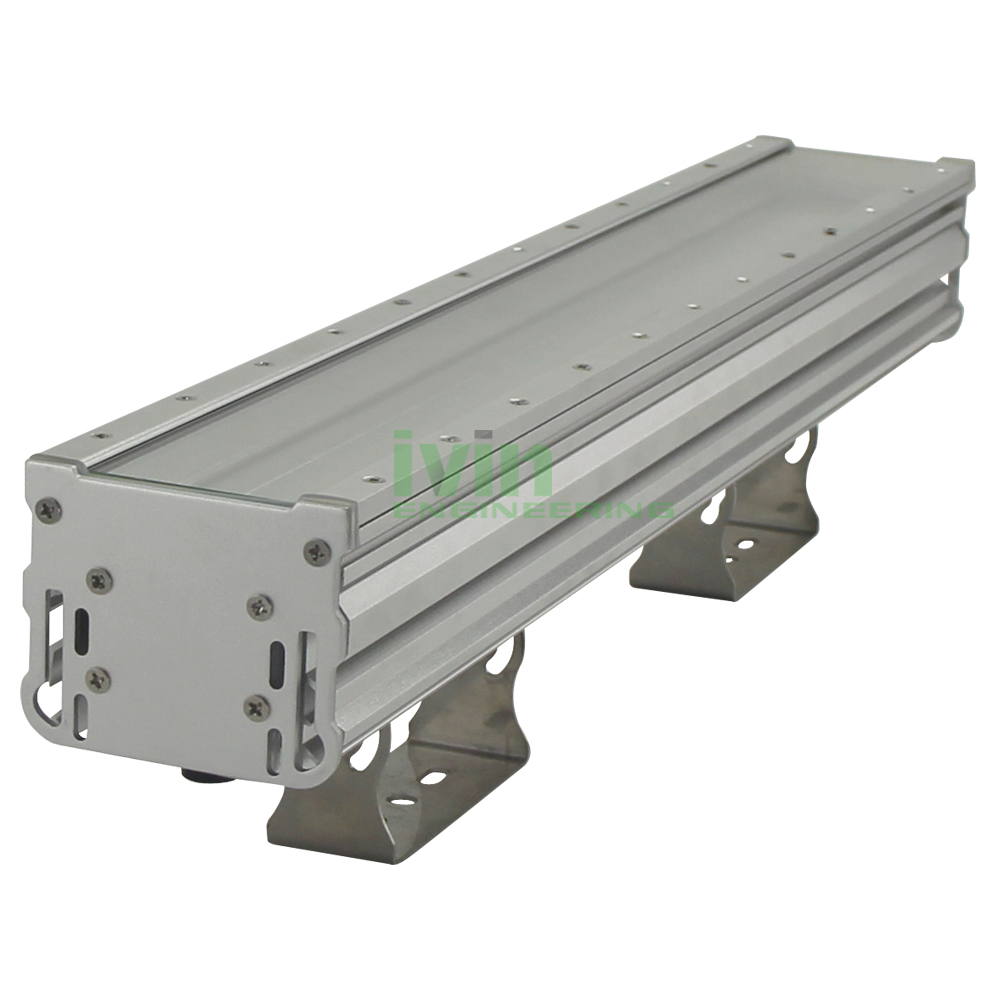

AWH-7690 60W LED wall washwer light

60W LED wall washwer light Heat sink, IP66 LED washwall light heat sink casing.



Components Details
Heat sink:  76*90mm  * Different cut Lenght.
With 37*44mm*Lenght  inside driver spacing.
100W-150W Power / M.
Fits 66mm width * 2mm thickness PCB.
Or less size.
Tempered glass: 71.5*4mm* Lenght 92% light transmittance.
Side pressing profiles - 2 Pcs. With countersunk holes machining on.
Side  silicon sealing bar - 2 Pcs Pressed on by side pressing profiles.
Screws fixed tightly .
End cap - 2 Pcs.  Al1050 material - Punch + Anodize.
End silicon sealing gasket - 2 Pcs. IP66 by sealing the 2 sides and ends well.
Mount stand - 2 Pieces 180° angel adjustabel,  60mm height.
1 PG7 + 1 Breathable valve + All screws.




60W high power LED washwall light heatsink housing set.

600mm housing set .    60W   ( 3.03kg )
Size:610*90*135mm
 Weight: 3.08kg
600mm heatsink + 600mm tempered glass + 2* 600mm side pressing profile + 1300mm  silicon sealing bar + 2 end caps + 2 end seilocn sealing gadket + 1 mount stand.
+ 1 PG7 + 1 Breathable valve + All screws.
